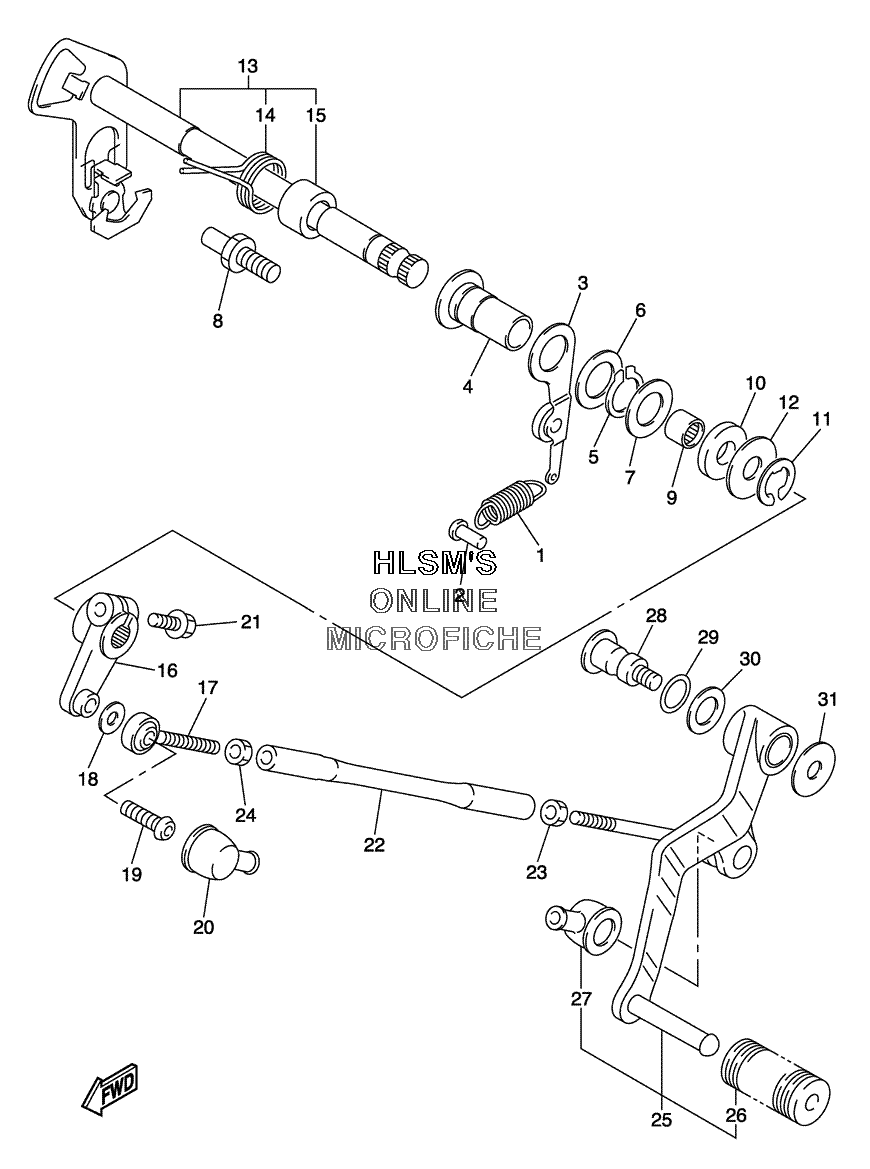

SHIFT SHAFT для Yamaha FJR ABS - 2005 года выпуска
-
№АртикулНазвание
-
15JW-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
35JW-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
490387-127V3-00 COLLARCOLLAR
-
599009-17400-00 CIRCLIPCIRCLIP
-
690201-177G4-00 WASHER, PLATEWASHER, PLATE
-
790201-154E8-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
85SL-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
993317-11287-00 BEARINGBEARING
-
1093101-12004-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1199001-10600-00 CIRCLIPCIRCLIP
-
1290201-12575-00 WASHER, PLATEWASHER, PLATE
-
135JW-18101-00-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
1490508-29012-00 ...SPRING, TORSION...SPRING, TORSION
-
1590387-1211D-00 ...COLLAR...COLLAR
-
165JW-18112-00-00 ARM, SHIFTARM, SHIFT
-
175LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
1890201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1990111-06019-00 BOLTBOLT
-
204XV-18154-00-00 COVER, DUSTCOVER, DUST
-
2195824-06020-00 BOLT, FLANGEBOLT, FLANGE
-
225JW-18115-00-00 ROD, SHIFTROD, SHIFT
-
2390170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2495304-06700-00 NUTNUT
-
255JW-18110-00-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
265EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
275JW-18154-00-00 ...COVER, DUST...COVER, DUST
-
285JW-27434-00-00 BOLTBOLT
-
2990206-12074-00 WASHER, WAVEWASHER, WAVE
-
3090201-12013-00 WASHER, PLATEWASHER, PLATE
-
3190201-080H1-00 WASHER, PLATEWASHER, PLATE
