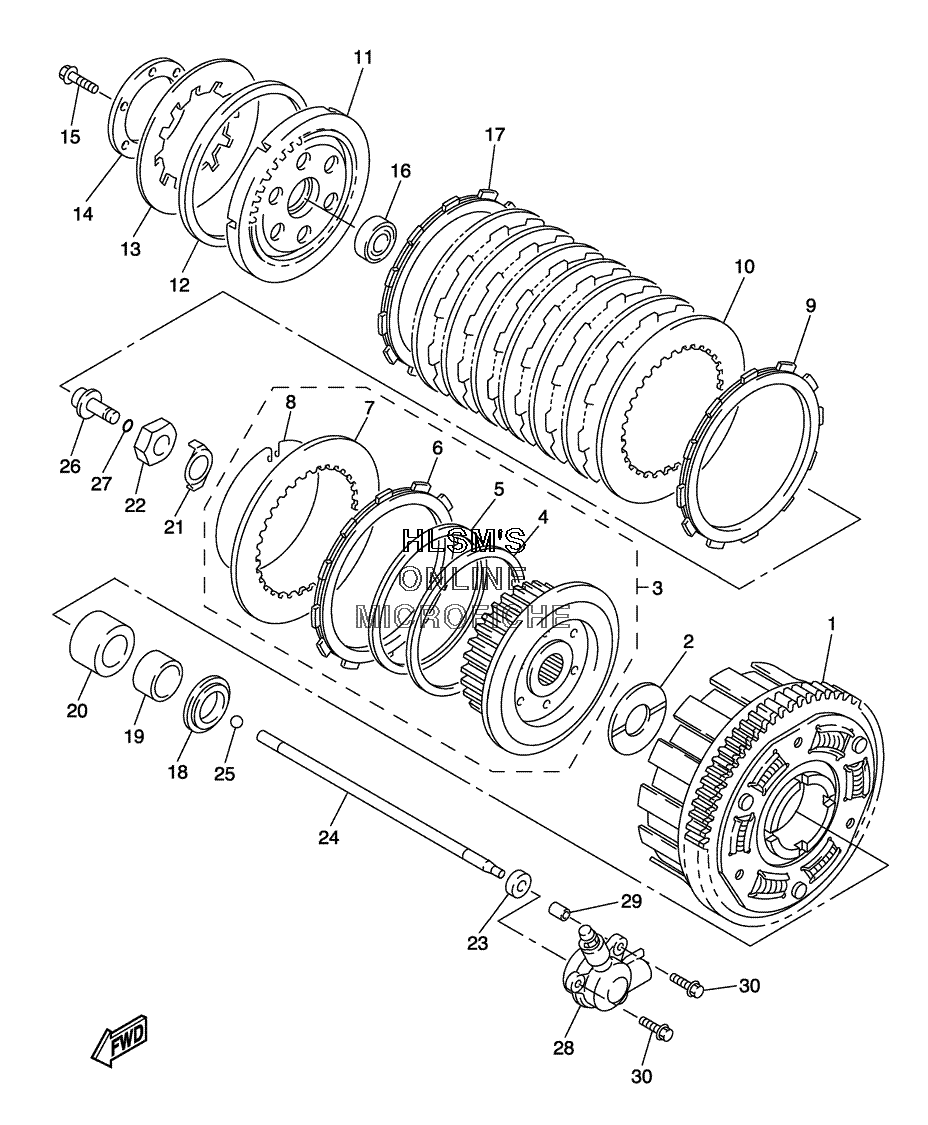

CLUTCH для Yamaha FJR ABS - 2005 года выпуска
-
№АртикулНазвание
-
15JW-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25JW-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
35JW-16370-00-00 CLUTCH BOSS ASSY.CLUTCH BOSS ASSY.
-
436Y-16384-00-00 ...PLATE, SEAT...PLATE, SEAT
-
536Y-16383-00-00 ...SPRING, CLUTCH BOSS...SPRING, CLUTCH BOSS
-
64XV-16331-00-00 ...PLATE, FRICTION 2...PLATE, FRICTION 2
-
72H7-16325-00-00 ...PLATE, CLUTCH 2...PLATE, CLUTCH 2
-
82H7-16385-00-00 ...RING, CLUTCH BOSS...RING, CLUTCH BOSS
-
95JW-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
102H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
114XV-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1236Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
135JW-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
141TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1595817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1693306-00304-00 BEARINGBEARING
-
17341-16321-13-00 PLATE, FRICTIONPLATE, FRICTION
-
185JW-16183-00-00 SPACER 3SPACER 3
-
1990387-28002-00 COLLARCOLLAR
-
205JW-16181-00-00 SPACER 1SPACER 1
-
2190215-25218-00 WASHER, LOCKWASHER, LOCK
-
2290170-20323-00 NUTNUT
-
2393109-08061-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
245JW-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2593511-32017-00 BALL 11/32BALL 11/32
-
264KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2793210-06422-00 O-RINGO-RING
-
285JW-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
2999530-08012-00 PIN, DOWELPIN, DOWEL
-
3095024-06025-00 BOLT, FLANGEBOLT, FLANGE
