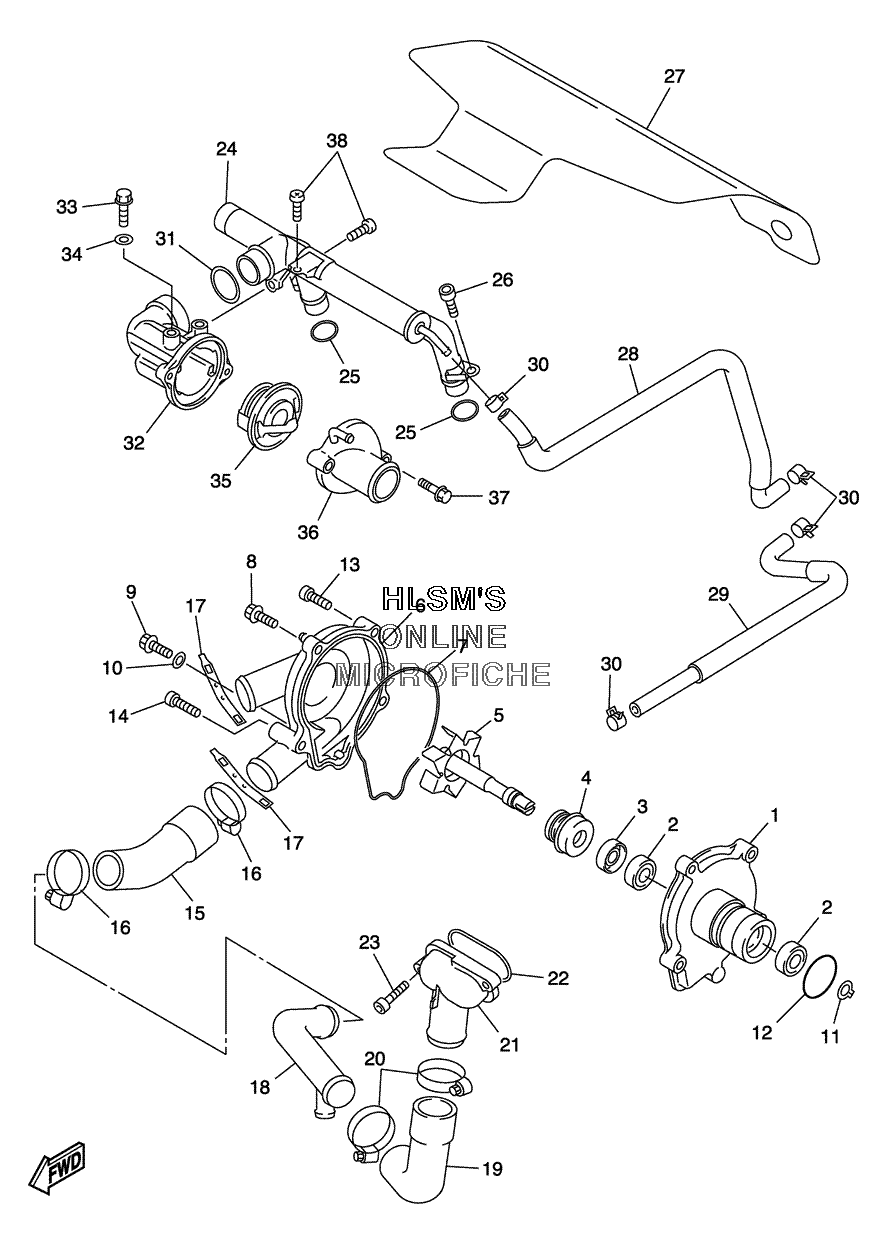

WATER PUMP для Yamaha FJR ABS - 2005 года выпуска
-
№АртикулНазвание
-
15JW-12421-00-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
293306-00106-00 BEARINGBEARING
-
393102-12372-00 OIL SEALOIL SEAL
-
411H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
55JW-12450-00-00 IMPELLER SHAFT ASSY.IMPELLER SHAFT ASSY.
-
65JW-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
75JW-12439-00-00 O-RINGO-RING
-
890105-066A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
995024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-06014-00 GASKETGASKET
-
1199009-12400-00 CIRCLIPCIRCLIP
-
1293210-33133-00 O-RINGO-RING
-
1390110-06033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490110-06034-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155JW-12576-00-00 HOSE 1HOSE 1
-
1690450-38040-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
175GV-1246E-00-00 COVER 2COVER 2
-
185JW-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
195JW-12577-00-00 HOSE 2HOSE 2
-
2090450-38040-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
215JW-12469-00-00 JOINT 1JOINT 1
-
2293210-47675-00 O-RINGO-RING
-
2390110-06019-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245JW-12481-00-00 PIPE 1PIPE 1
-
2593210-18417-00 O-RINGO-RING
-
2691317-06016-00 BOLTBOLT
-
275JW-12682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
-
285JW-12578-00-00 HOSE 3HOSE 3
-
295JW-12579-00-00 HOSE 4HOSE 4
-
3090467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
3193210-23787-00 O-RINGO-RING
-
325JW-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
3395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3490430-06014-00 GASKETGASKET
-
354FM-12410-00-00 THERMOSTAT ASSY.THERMOSTAT ASSY.
-
363FV-1240G-00-00 THERMOSTAT COVER ASSY.THERMOSTAT COVER ASSY.
-
3795027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3890149-06250-00 SCREWSCREW
