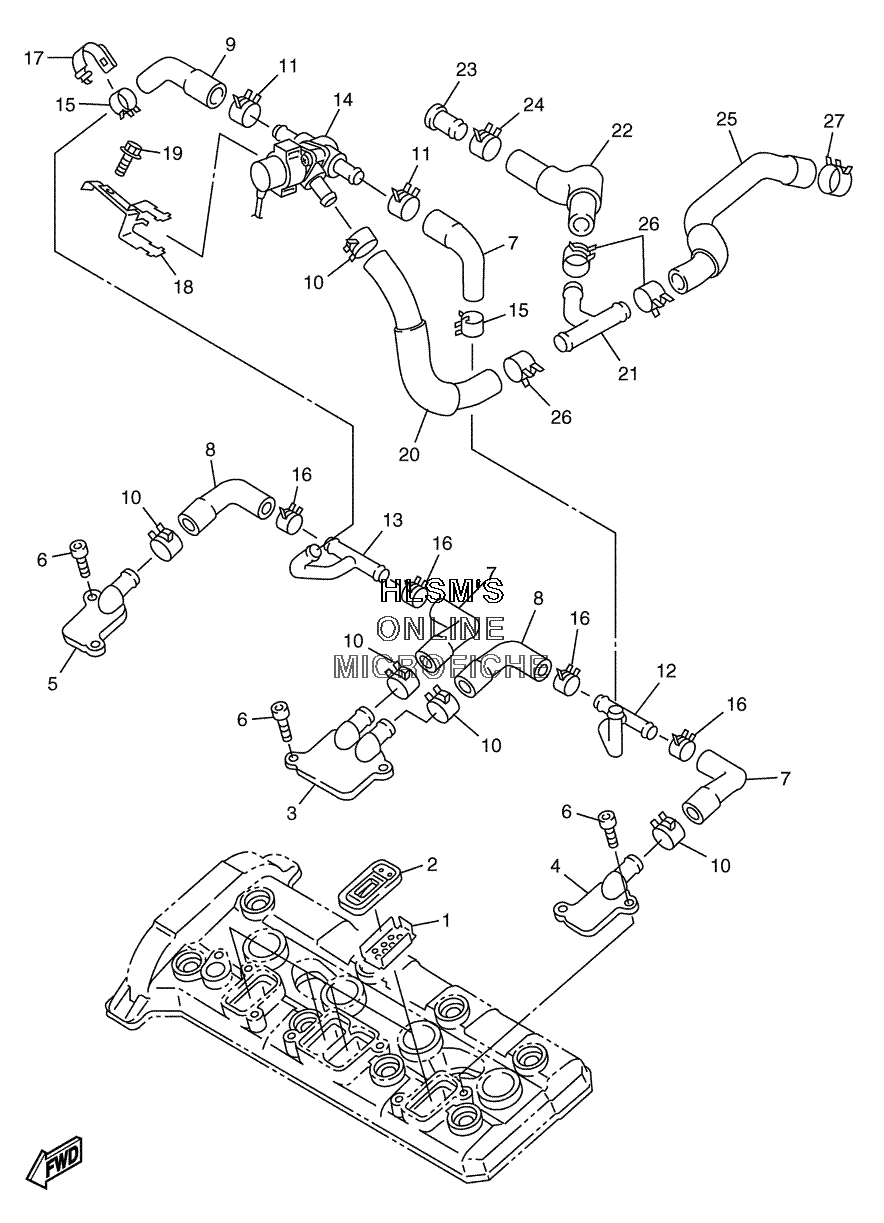

AIR INDUCTION SYSTEM для Yamaha FJR - 2005 года выпуска
-
№АртикулНазвание
-
15JW-1482K-01-00 PLATEPLATE
-
25JW-14890-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
35JW-14899-00-00 CAP, CASECAP, CASE
-
45JW-14858-00-00 CAP, CASECAP, CASE
-
55JW-14889-00-00 CAP, CASECAP, CASE
-
690110-06027-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
75JW-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
85JW-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
95JW-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
1090467-17003-00 CLIPCLIP
-
1190467-170A1-00 CLIPCLIP
-
125JW-14871-00-00 PIPE 1PIPE 1
-
135JW-14872-00-00 PIPE 2PIPE 2
-
145JW-14840-00-00 AIR CUT VALVE ASSY.AIR CUT VALVE ASSY.
-
1590467-16009-00 CLIPCLIP
-
1690467-160A1-00 CLIPCLIP
-
175JW-14723-00-00 COVER 1COVER 1
-
185JW-14834-00-00 STAYSTAY
-
1995827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
205JW-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
215JW-14833-00-00 JOINTJOINT
-
225JW-14873-00-00 PIPE 3PIPE 3
-
235JW-14862-00-00 PLUGPLUG
-
2490467-17003-00 CLIPCLIP
-
255JW-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
2690467-17003-00 CLIPCLIP
-
2790467-20050-00 CLIP, SCISSORCLIP, SCISSOR
