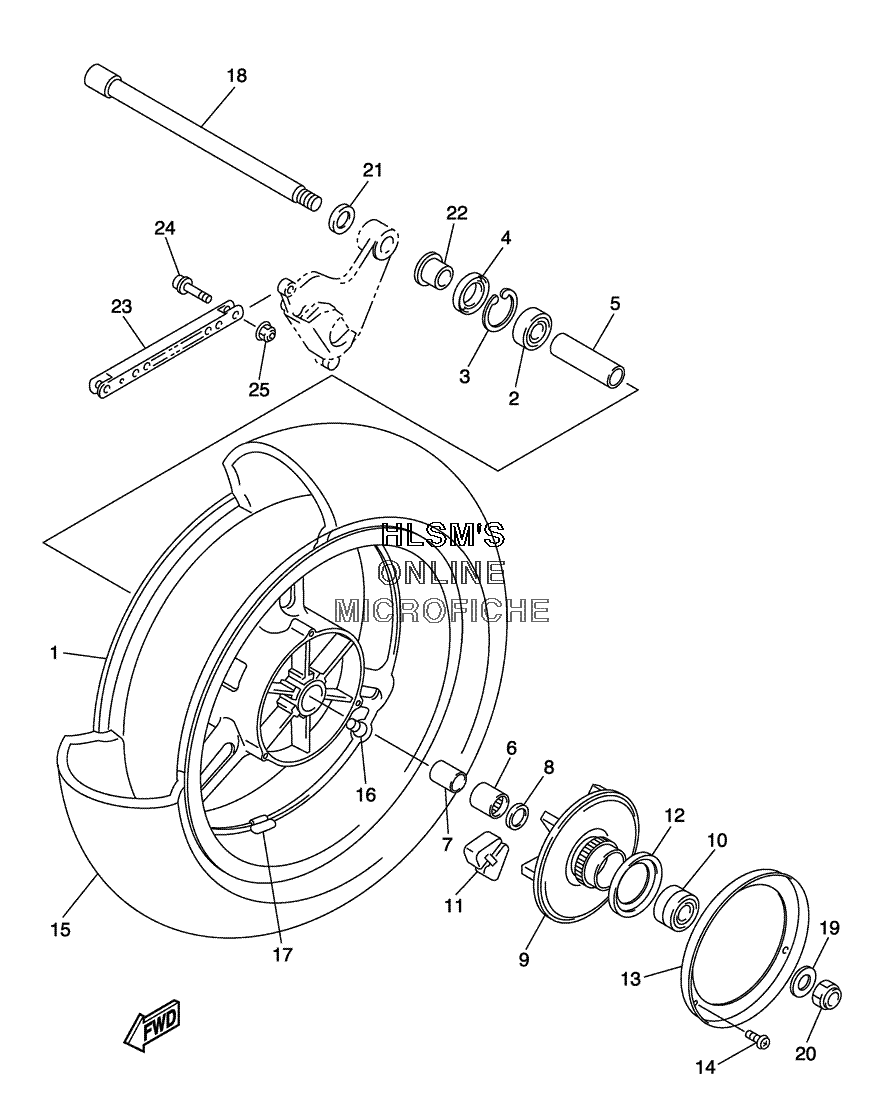

WHEEL - REAR для Yamaha FJR - 2005 года выпуска
-
№АртикулНазвание
-
15JW-25168-01-P0 CAST WHEEL, REAR (SILVER 8)CAST WHEEL, REAR (SILVER 8)
-
293306-30446-00 BEARINGBEARING
-
399009-52500-00 CIRCLIPCIRCLIP
-
493102-28023-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
55JW-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
693317-42592-00 BEARINGBEARING
-
75JW-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
893101-25104-00 OIL SEALOIL SEAL
-
95JW-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1093306-20480-00 BEARINGBEARING
-
115JW-25364-00-00 DAMPERDAMPER
-
125JW-25319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
135JW-25327-00-00 COVER, PLATECOVER, PLATE
-
1498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1594118-17020-00 TIRE (180/55ZR17M/C 73W BTO20R) (BRIDGESTONE)TIRE (180/55ZR17M/C 73W BTO20R) (BRIDGESTONE)
-
1693900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
175MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
175MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
175MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
185JW-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1990201-181U5-00 WASHER, PLATEWASHER, PLATE
-
2090185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2192903-20600-00 WASHERWASHER
-
2290387-206W8-00 COLLARCOLLAR
-
235JW-25371-00-00 BAR, TENSIONBAR, TENSION
-
2490110-08007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
