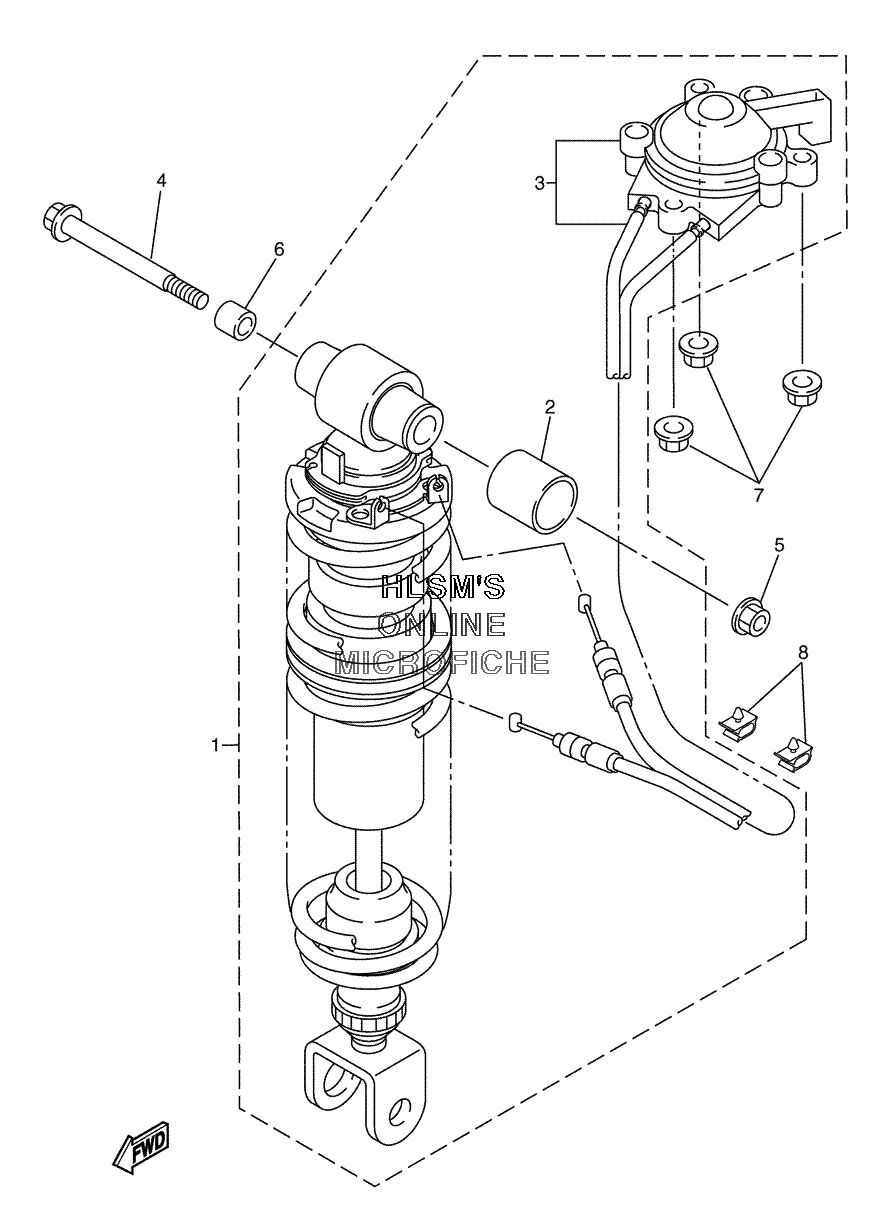

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FJR - 2005 года выпуска
-
№АртикулНазвание
-
15VS-22210-10-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
25JW-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
35VS-22460-00-00 ...CONTROL PANEL ASSY....CONTROL PANEL ASSY.
-
490101-12755-00 BOLTBOLT
-
595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-12011-00 COLLARCOLLAR
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
890464-14001-00 CLAMPCLAMP
