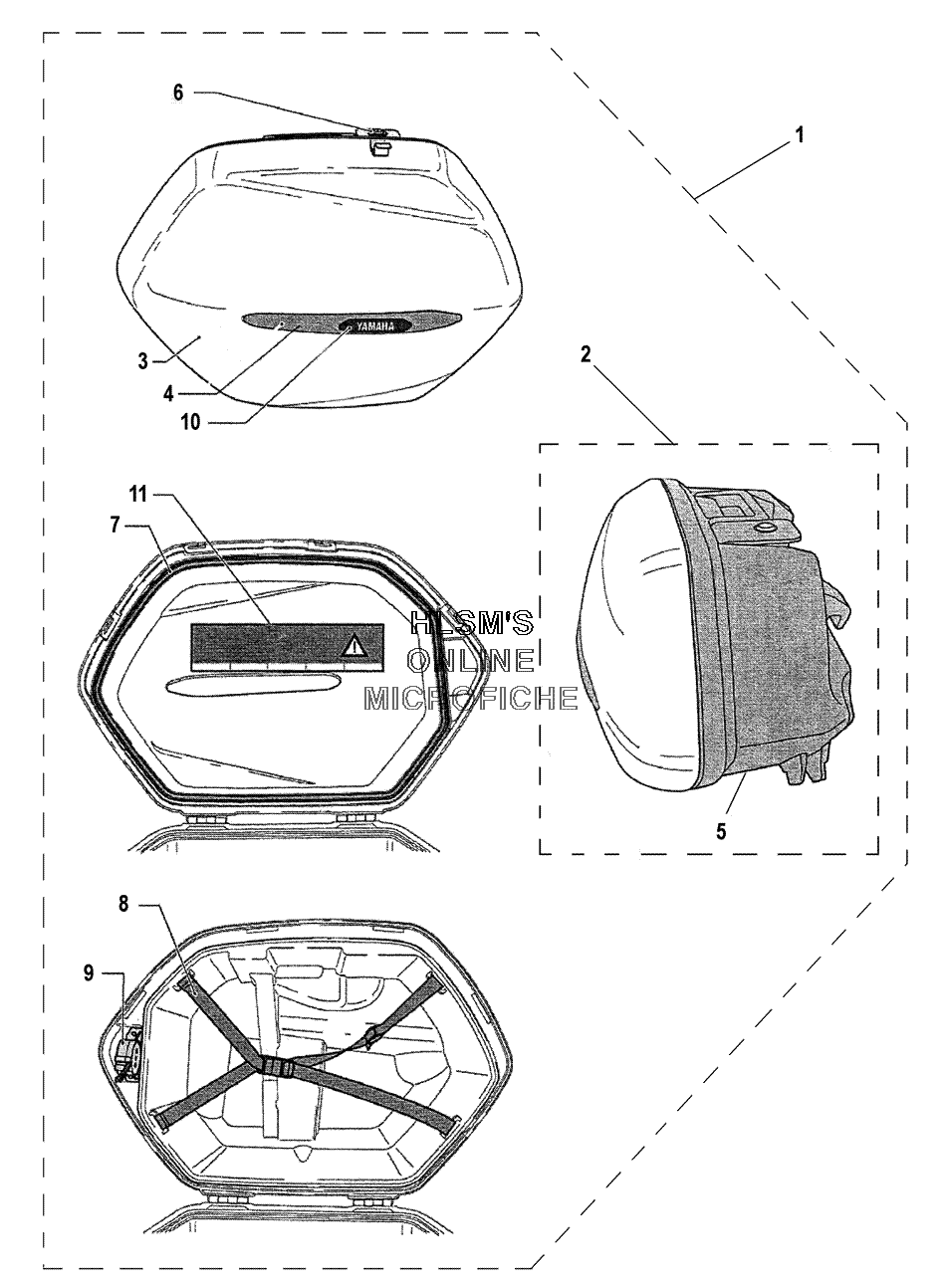

SADDLEBAGS для Yamaha FJR - 2005 года выпуска
-
№АртикулНазвание
-
1ABA-5JWSD-BG-35 FJR SADDLEBAG SET FY05FJR SADDLEBAG SET FY05
-
25JW-W0753-0L-35 ...SADDLEBAG (LEFT)...SADDLEBAG (LEFT)
-
25JW-W0753-0R-35 ...SADDLEBAG (RIGHT)...SADDLEBAG (RIGHT)
-
35JW-W9340-0L-35 SPARE LID (LEFT)SPARE LID (LEFT)
-
35JW-W9340-0R-35 SPARE LID (RIGHT)SPARE LID (RIGHT)
-
45JW-W9346-0L-00 ...LID PROTECTOR (LEFT)...LID PROTECTOR (LEFT)
-
45JW-W9346-0R-00 ...LID PROTECTOR (RIGHT)...LID PROTECTOR (RIGHT)
-
55JW-W9341-0L-00 ...SIDE CASE BOTTOM (LEFT)...SIDE CASE BOTTOM (LEFT)
-
55JW-W9341-0R-00 ...SIDE CASE BOTTOM (RIGHT)...SIDE CASE BOTTOM (RIGHT)
-
65JW-W9451-02-00 ...LOCK ASSY....LOCK ASSY.
-
75JW-W9380-00-00 ...SEAL...SEAL
-
85JW-W9361-00-00 ...LUGGAGE STRAP...LUGGAGE STRAP
-
95JW-W9360-00-00 ...LID RETAINER...LID RETAINER
-
105JW-W9345-00-00 ...LOGO...LOGO
-
115JW-W9391-00-00 ...WARNING STICKER...WARNING STICKER
-
12ABA-5JW72-21-00 ...REFLECTOR (LEFT)...REFLECTOR (LEFT)
-
12ABA-5JW72-22-00 ...REFLECTOR (RIGHT)...REFLECTOR (RIGHT)
-
135JW-W9753-0L-00 ...MOUNT (LEFT)...MOUNT (LEFT)
-
135JW-W9753-0R-00 ...MOUNT (RIGHT)...MOUNT (RIGHT)
-
145JW-2163E-00-P1 ...CAP, REAR FENDER...CAP, REAR FENDER
-
155JW-2163E-10-P1 ...CAP, REAR FENDER...CAP, REAR FENDER
-
165JW-2163F-00-P1 ...CAP, REAR FENDER...CAP, REAR FENDER
-
17ABA-5JW73-90-00 ...SADDLEBAG LINER (SET)...SADDLEBAG LINER (SET)
