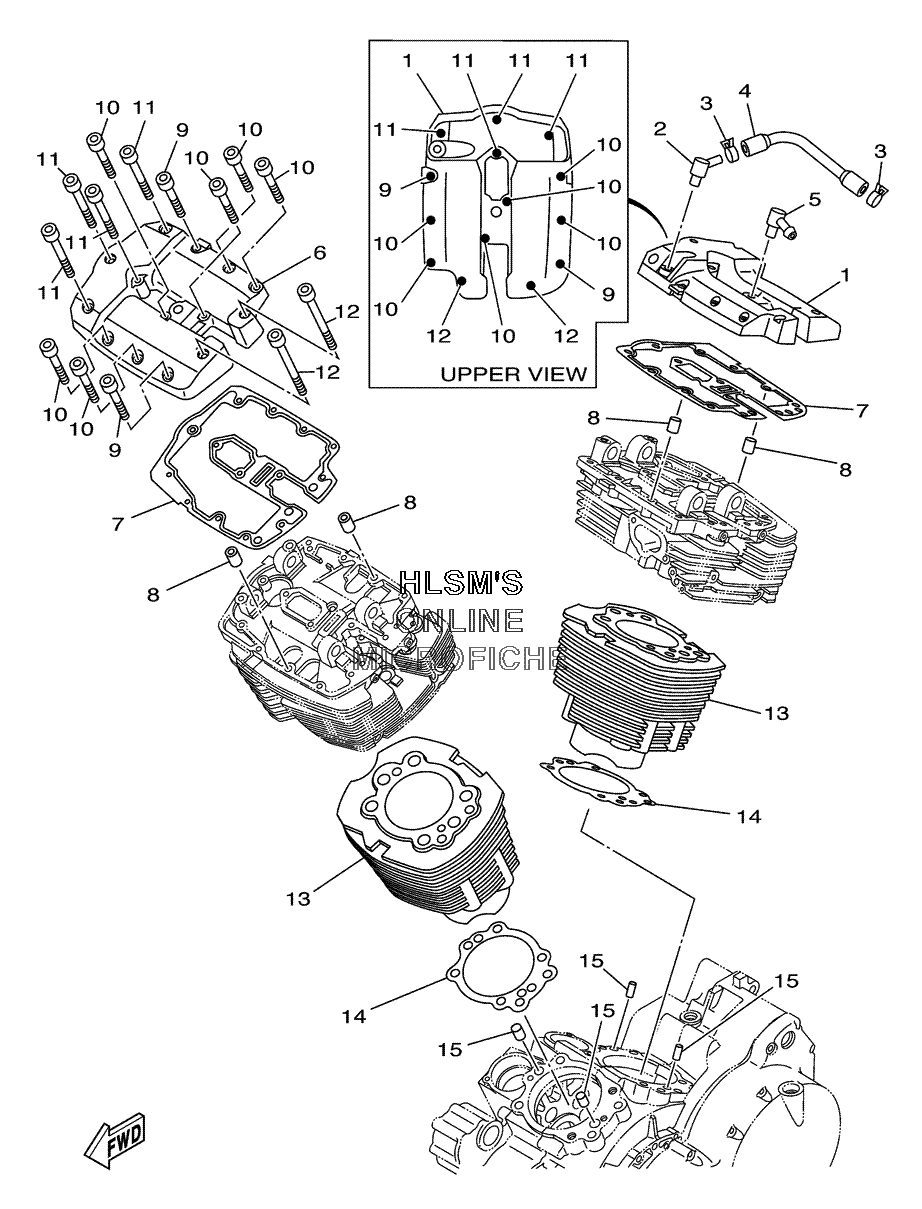

CYLINDER для Yamaha ROAD STAR MDNT WARRIOR - 2005 года выпуска
-
№АртикулНазвание
-
15PX-11191-00-00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
25PX-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
390467-15001-00 CLIPCLIP
-
45PX-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
54WM-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
65PX-11192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
75PX-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
891808-16023-00 PIN, DOWELPIN, DOWEL
-
991314-06060-00 BOLTBOLT
-
1091314-06050-00 BOLTBOLT
-
1191314-06040-00 BOLTBOLT
-
1290110-06023-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135PX-11311-00-00 CYLINDER 1CYLINDER 1
-
144WM-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1590387-087A5-00 COLLARCOLLAR
