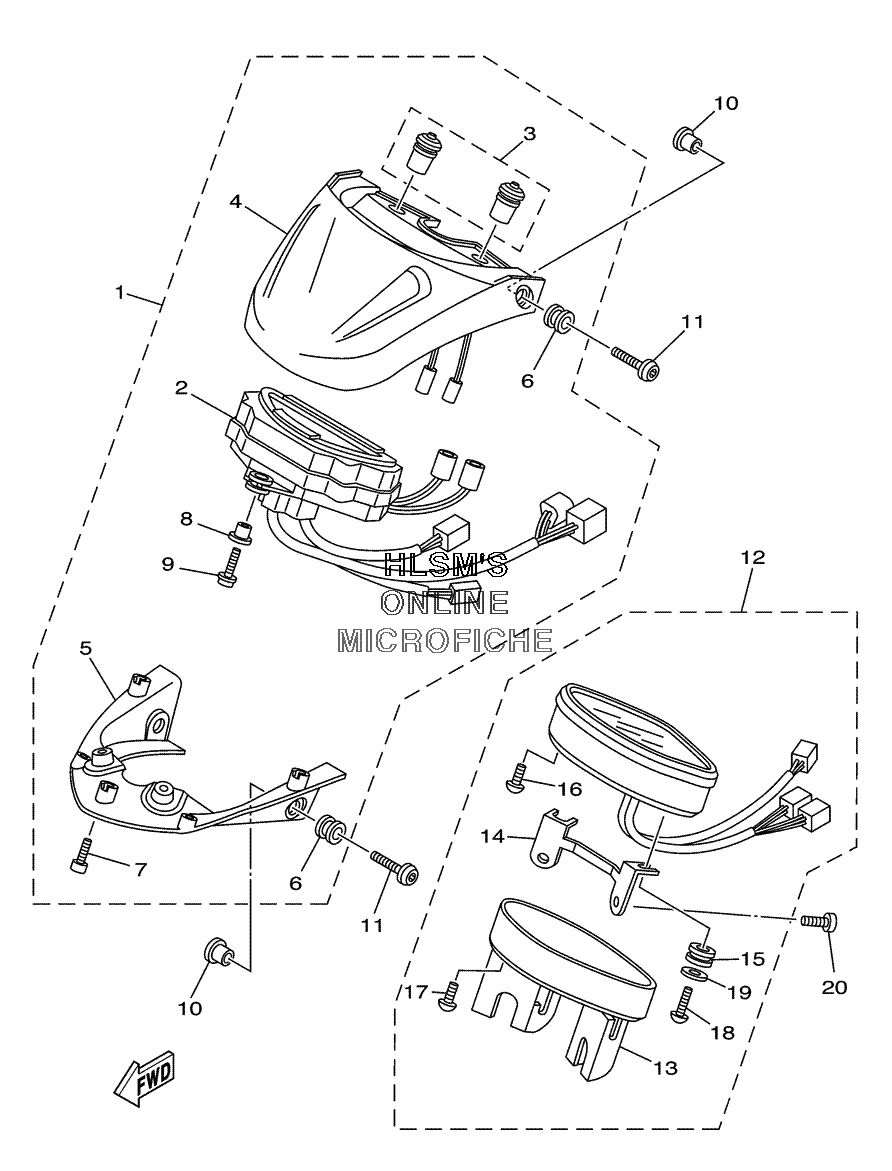

INSTRUMENT PANEL для Yamaha ROAD STAR MDNT WARRIOR - 2005 года выпуска
-
№АртикулНазвание
-
15PX-83500-40-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
25PX-8358G-40-00 ...LCD ASSY....LCD ASSY.
-
35PX-8358J-00-00 ...SWITCH, METER CONTROL...SWITCH, METER CONTROL
-
45PX-8357B-10-00 ...COVER COMP....COVER COMP.
-
55PX-83579-10-00 ...COVER, METER 2...COVER, METER 2
-
690480-12007-00 ...GROMMET...GROMMET
-
791380-04010-00 ...BOLT...BOLT
-
85PX-83522-00-00 ...COLLAR...COLLAR
-
997602-03112-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
1090560-06201-00 SPACERSPACER
-
1190149-06302-00 SCREWSCREW
-
125PX-83570-20-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
135PX-83507-10-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
145PX-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
154XV-83513-00-00 ...DAMPER...DAMPER
-
1697707-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1790167-03058-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1897707-50016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1953Y-83524-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2091314-08012-00 BOLTBOLT
