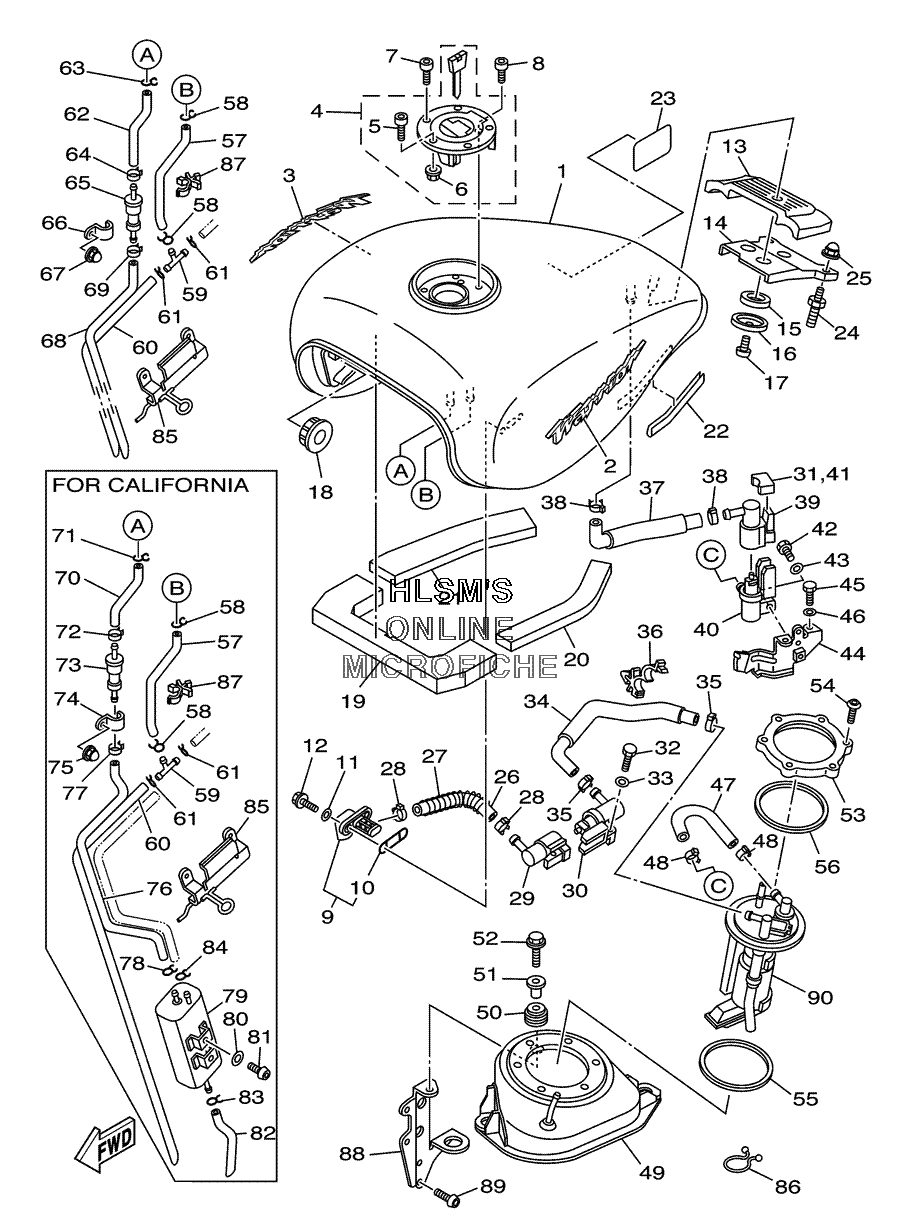

FUEL TANK для Yamaha ROAD STAR MDNT WARRIOR - 2005 года выпуска
-
№АртикулНазвание
-
15PX-YK241-10-33 FUEL TANK COMP. (BLACK)FUEL TANK COMP. (BLACK)
-
25PX-2416B-00-00 EMBLEMEMBLEM
-
35PX-2417B-00-00 EMBLEMEMBLEM
-
45PX-24602-01-00 CAP ASSY.CAP ASSY.
-
591380-05012-00 ...BOLT...BOLT
-
695707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
891317-05010-00 BOLTBOLT
-
95PX-24560-00-00 FILTER ASSY.FILTER ASSY.
-
104X8-24512-00-00 ...O-RING...O-RING
-
1190202-05193-00 WASHER, PLATEWASHER, PLATE
-
1295027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
135PX-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
145PX-2413Y-01-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
155PX-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
165PX-24186-01-00 WASHER, SPECIALWASHER, SPECIAL
-
1792017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
182YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
195PX-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
205PX-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
215PX-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
224GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
231JK-21735-00-00 SEAL 2SEAL 2
-
245PX-24176-01-00 BOLT 1BOLT 1
-
2590176-06055-00 NUT, CROWNNUT, CROWN
-
265PX-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
275PX-24393-00-00 SPRINGSPRING
-
285PX-2411M-00-00 CLIPCLIP
-
295PX-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
305PX-24304-01-00 FUEL PIPE JOINT COMP. 1FUEL PIPE JOINT COMP. 1
-
315PX-24184-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
3297027-05020-00 BOLTBOLT
-
3392907-05600-00 WASHER, PLATEWASHER, PLATE
-
345PX-24312-00-00 PIPE 2PIPE 2
-
355PX-2411M-00-00 CLIPCLIP
-
3690464-16006-00 CLAMPCLAMP
-
375PX-24313-00-00 PIPE 3PIPE 3
-
385PX-2411M-00-00 CLIPCLIP
-
395PX-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
405PX-24304-11-00 FUEL PIPE JOINT COMP. 1FUEL PIPE JOINT COMP. 1
-
415PX-24184-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
4297027-05020-00 BOLTBOLT
-
4392907-05600-00 WASHER, PLATEWASHER, PLATE
-
445PX-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
4597027-05012-00 BOLTBOLT
-
4692907-05600-00 WASHER, PLATEWASHER, PLATE
-
475PX-24314-00-00 PIPE 4PIPE 4
-
485PX-2411M-00-00 CLIPCLIP
-
495PX-24280-00-00 TANK, FUELTANK, FUEL
-
5090480-18003-00 GROMMETGROMMET
-
5190387-0700G-00 COLLARCOLLAR
-
5295817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
535PX-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
5490149-05244-00 SCREWSCREW
-
555PX-24486-00-00 O-RINGO-RING
-
565PX-24145-00-00 PLATE, DAMPERPLATE, DAMPER
-
575PX-24318-01-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
5890467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
5990413-07007-00 WAY 3WAY 3
-
605PX-24321-01-00 PIPE 10 (CALIF. ONLY)PIPE 10 (CALIF. ONLY)
-
6190467-09103-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
625PX-24322-10-00 PIPE 11PIPE 11
-
6390467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
6490467-09001-00 CLIPCLIP
-
655PX-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
665PX-24136-00-00 CLAMP 2CLAMP 2
-
6790176-05054-00 NUT, CROWNNUT, CROWN
-
685PX-24323-01-00 PIPE 12PIPE 12
-
6990467-09001-00 CLIPCLIP
-
705PX-24322-10-00 PIPE 11 (CALIF. ONLY)PIPE 11 (CALIF. ONLY)
-
7190467-09103-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
7290467-09001-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
735PX-24180-00-00 ROLL OVER VALVE ASSY. (CALIF. ONLY)ROLL OVER VALVE ASSY. (CALIF. ONLY)
-
745PX-24136-00-00 CLAMP 2 (CALIF. ONLY)CLAMP 2 (CALIF. ONLY)
-
7590176-05054-00 NUT, CROWN (CALIF. ONLY)NUT, CROWN (CALIF. ONLY)
-
765PX-24323-11-00 PIPE 12 (CALIF. ONLY)PIPE 12 (CALIF. ONLY)
-
7790467-09001-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
7890467-09103-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
795PX-24170-00-00 CANISTER ASSY. (CALIF. ONLY)CANISTER ASSY. (CALIF. ONLY)
-
8090201-06023-00 WASHER, PLATE (CALIF. ONLY)WASHER, PLATE (CALIF. ONLY)
-
8190111-06046-00 BOLT (CALIF. ONLY)BOLT (CALIF. ONLY)
-
825PX-24325-00-00 PIPE 14 (CALIF. ONLY)PIPE 14 (CALIF. ONLY)
-
8390467-10041-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
8490467-09103-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
855PX-24364-00-00 STAYSTAY
-
8690464-23041-00 CLAMPCLAMP
-
8790464-10125-00 CLAMPCLAMP
-
885PX-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
8992017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
905PX-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
