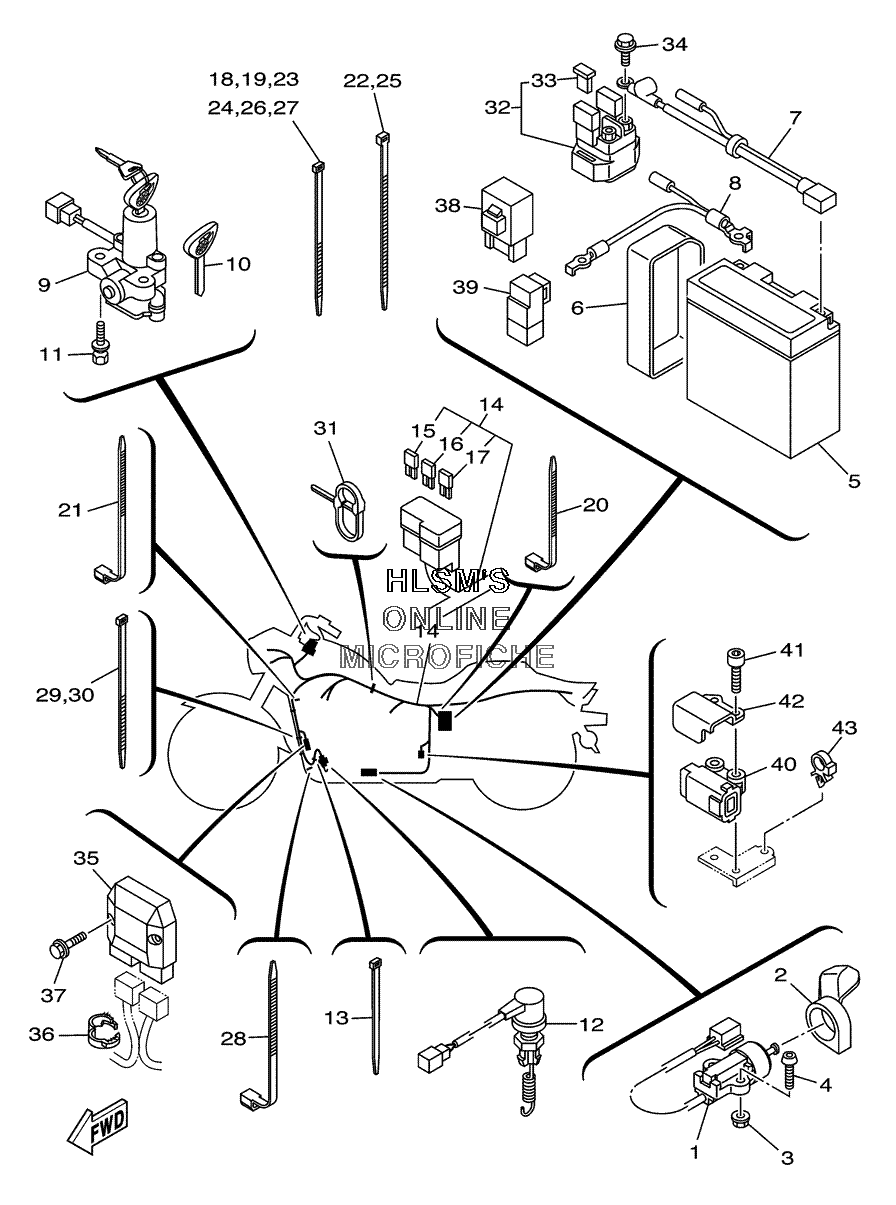

ELECTRICAL 2 для Yamaha ROAD STAR MDNT WARRIOR - 2005 года выпуска
-
№АртикулНазвание
-
15VS-82566-C0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
24WM-8252U-00-00 COVERCOVER
-
395607-05200-00 NUT, U FLANGENUT, U FLANGE
-
492017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
55EA-82100-11-00 BATTERY ASSY. (GS GT14B-4)BATTERY ASSY. (GS GT14B-4)
-
64AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
75PX-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
85PX-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
95PX-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
105PX-82511-09-00 BLANK KEYBLANK KEY
-
1190109-080G5-00 BOLTBOLT
-
125PX-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
1390464-16061-00 CLAMPCLAMP
-
145PX-82590-20-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
155JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
165JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
175JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
181UA-82591-00-00 BANDBAND
-
191UA-82591-00-00 BANDBAND
-
2090464-13077-00 CLAMPCLAMP
-
2190464-13073-00 CLAMPCLAMP
-
223MA-82591-00-00 BANDBAND
-
231UA-82591-00-00 BANDBAND
-
241UA-82591-00-00 BANDBAND
-
253MA-82591-00-00 BANDBAND
-
261UA-82591-00-00 BANDBAND
-
271UA-82591-00-00 BANDBAND
-
2890464-15195-00 CLAMPCLAMP
-
291UA-82591-00-00 BANDBAND
-
301UA-82591-00-00 BANDBAND
-
3190464-28001-00 CLAMPCLAMP
-
324YR-81940-01-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
331AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
355JW-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
3690464-16003-00 CLAMPCLAMP
-
3790105-06009-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
385KS-81950-30-00 RELAY ASSY.RELAY ASSY.
-
395JJ-81950-20-00 RELAY ASSY.RELAY ASSY.
-
405PS-82576-01-00 EMERGENCY STOP SWITCH ASSY.EMERGENCY STOP SWITCH ASSY.
-
4191317-04025-00 BOLTBOLT
-
425PX-82388-00-00 PLATEPLATE
