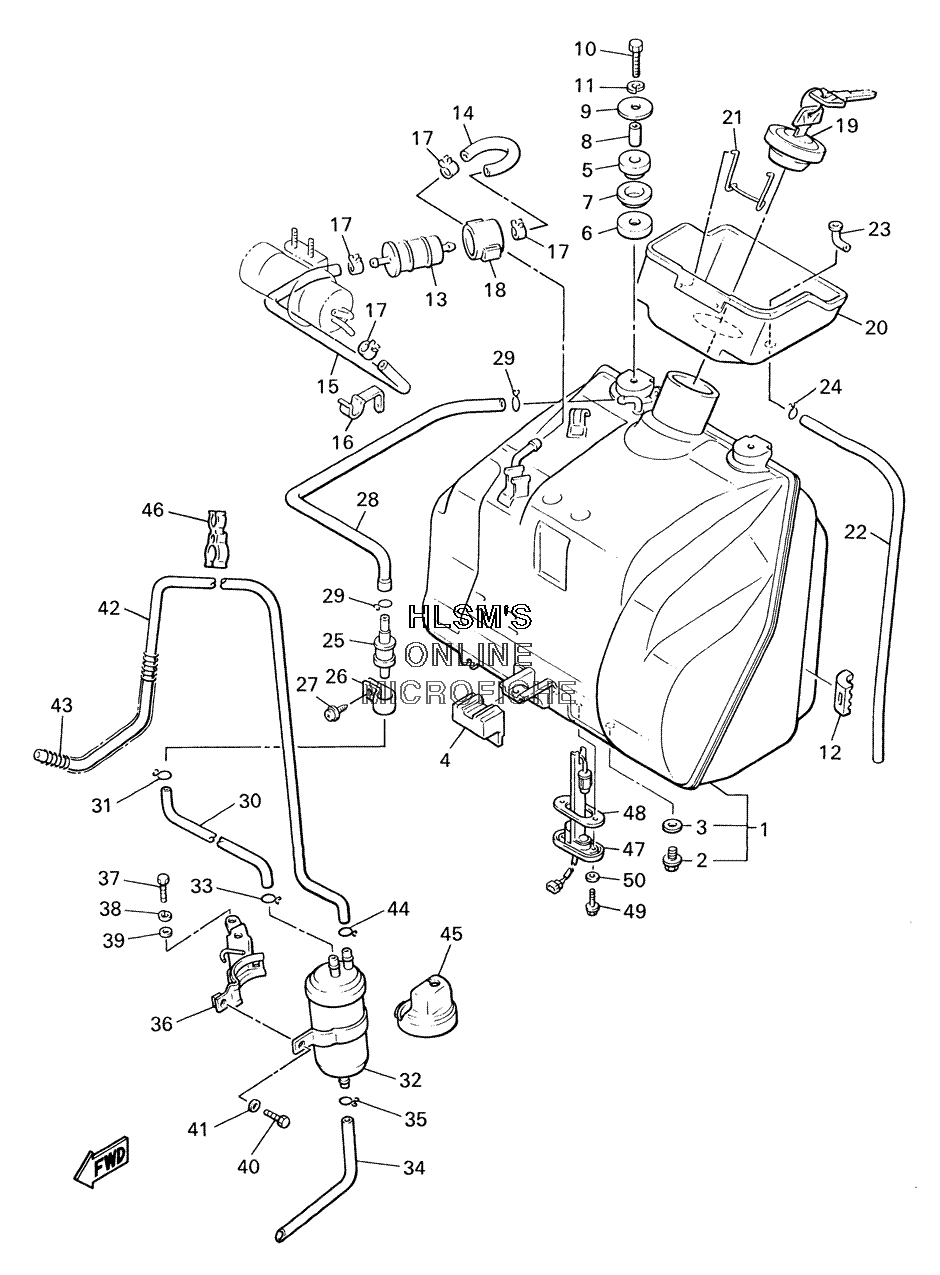

FUEL TANK для Yamaha V MAX - 2005 года выпуска
-
№АртикулНазвание
-
11FK-24110-10-33 FUEL TANK COMP. (BLACK)FUEL TANK COMP. (BLACK)
-
295807-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
390201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
41FK-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
51FK-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
61FK-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
71FK-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-062G5-00 COLLARCOLLAR
-
990201-065G8-00 WASHER, PLATEWASHER, PLATE
-
1097027-06030-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121FK-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
131FK-24560-00-00 FILTER ASSY.FILTER ASSY.
-
141FK-24314-00-00 PIPE 4PIPE 4
-
151FK-24315-00-00 PIPE 5PIPE 5
-
1690464-30071-00 CLAMPCLAMP
-
1790467-12124-00 CLIPCLIP
-
181FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
1954K-24602-00-00 CAP ASSY.CAP ASSY.
-
201FK-2414A-00-00 COVER, FILLERCOVER, FILLER
-
211FK-24393-00-00 SPRINGSPRING
-
2290445-086A8-00 HOSEHOSE
-
231FK-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2490467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
2525H-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
2690461-15100-00 CLAMPCLAMP
-
2797707-50612-00 SCREW, TAPPINGSCREW, TAPPING
-
281FK-24311-03-00 PIPE, FUEL 1PIPE, FUEL 1
-
2990467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
3090445-112K7-00 HOSEHOSE
-
301JH-24316-02-00 PIPE 6PIPE 6
-
3190467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
321JH-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
3390467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
341JH-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
3590467-11106-00 CLIPCLIP
-
361FK-2419A-00-00 HOLDER (EXCEPT CALIF.)HOLDER (EXCEPT CALIF.)
-
361JH-24190-00-00 CANISTER HOLDER ASSY. (CALIF. ONLY)CANISTER HOLDER ASSY. (CALIF. ONLY)
-
3797007-06016-00 BOLTBOLT
-
3892907-06600-00 WASHER, PLATEWASHER, PLATE
-
3992907-06200-00 WASHERWASHER
-
4097007-06014-00 BOLTBOLT
-
4192907-06600-00 WASHER, PLATEWASHER, PLATE
-
4290445-11706-00 HOSEHOSE
-
4390501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4490467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
451JH-2419E-00-00 COVER, CANISTERCOVER, CANISTER
-
4690464-20070-00 CLAMPCLAMP
-
471FK-85752-01-00 SENDER UNIT ASSY., FUEL METERSENDER UNIT ASSY., FUEL METER
-
4842X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4990149-06011-00 SCREWSCREW
-
5090202-05193-00 WASHER, PLATEWASHER, PLATE
