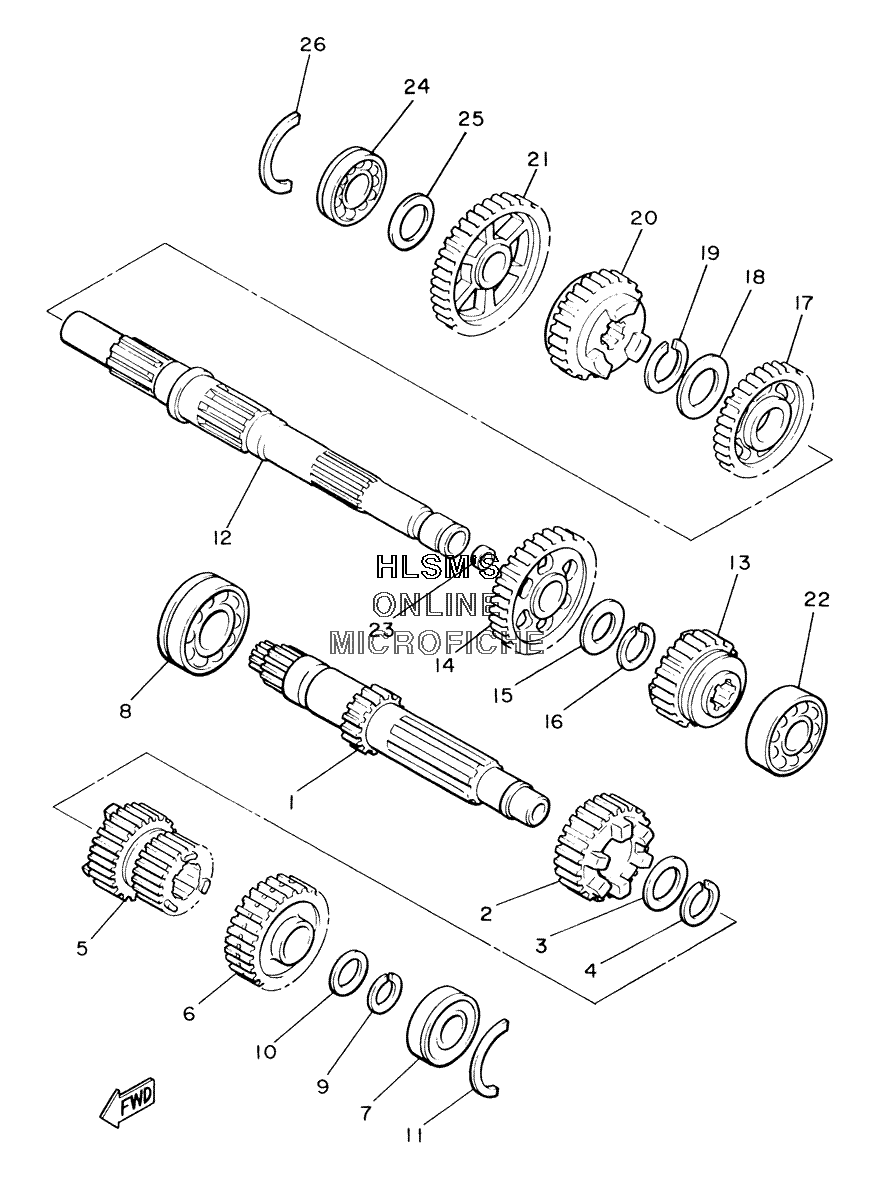

TRANSMISSION для Yamaha V MAX - 2005 года выпуска
-
№АртикулНазвание
-
11FK-17411-00-00 AXLE, MAIN (17T)AXLE, MAIN (17T)
-
21FK-17141-00-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
390209-25196-00 WASHERWASHER
-
493440-28062-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
51FK-17121-01-00 GEAR, 2ND/3RD PINION (22/23T)GEAR, 2ND/3RD PINION (22/23T)
-
61FK-17151-01-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
793306-30430-00 BEARINGBEARING
-
893306-36401-00 BEARINGBEARING
-
993410-23056-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
1090201-232K5-00 WASHER, PLATEWASHER, PLATE
-
1193440-52118-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
124NK-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
131FK-17251-01-00 GEAR, 5TH WHEEL (26T)GEAR, 5TH WHEEL (26T)
-
141FK-17221-01-00 GEAR, 2ND WHEEL (39T)GEAR, 2ND WHEEL (39T)
-
1590209-32231-00 WASHERWASHER
-
1693440-34025-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
1726H-17231-01-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
1890209-27192-00 WASHERWASHER
-
1993440-30077-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
201FK-17241-00-00 GEAR, 4TH WHEEL (28T)GEAR, 4TH WHEEL (28T)
-
211FK-17211-00-00 GEAR, 1ST WHEEL (43T)GEAR, 1ST WHEEL (43T)
-
2293306-20645-00 BEARINGBEARING
-
2390331-15039-00 PLUGPLUG
-
2493306-20555-00 BEARINGBEARING
-
2590201-256K6-00 WASHER, PLATE (0.9T)WASHER, PLATE (0.9T)
-
2590201-256K5-00 WASHER, PLATE (0.5T)WASHER, PLATE (0.5T)
-
2590201-256K7-00 WASHER, PLATE (1.3T)WASHER, PLATE (1.3T)
-
2693440-52118-00 CIRCLIP, OUTERCIRCLIP, OUTER
