TAILLIGHT для Yamaha V MAX - 2005 года выпуска
-
№АртикулНазвание
-

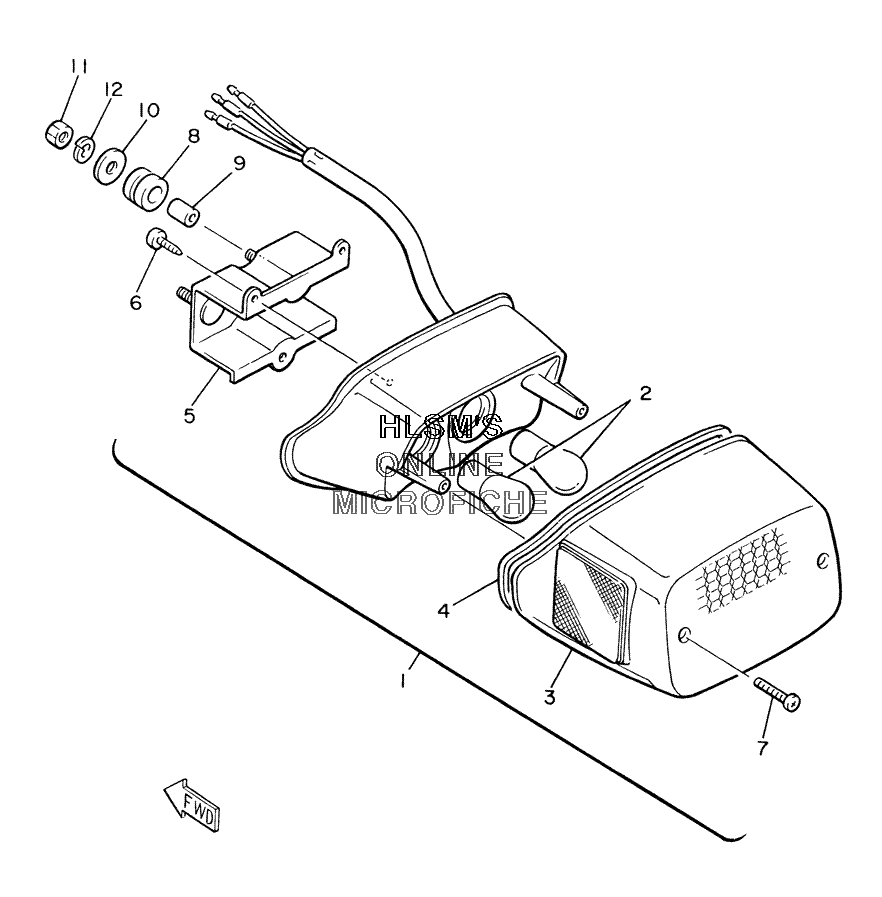

11FK-84700-60-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
2256-84714-61-00 ...BULB, FLSHER (12V-278W)...BULB, FLSHER (12V-278W)
-
342X-84721-60-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
442X-84723-01-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
51FK-84702-00-00 ...BRACKET, TAILLIGHT...BRACKET, TAILLIGHT
-
697707-40616-00 ...SCREW, TAPPING...SCREW, TAPPING
-
797707-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
890480-15316-00 GROMMETGROMMET
-
990387-06026-00 COLLARCOLLAR
-
1090201-06380-00 WASHER, PLATEWASHER, PLATE
-
1195307-06600-00 NUTNUT
-
1292907-06100-00 WASHER, SPRINGWASHER, SPRING
