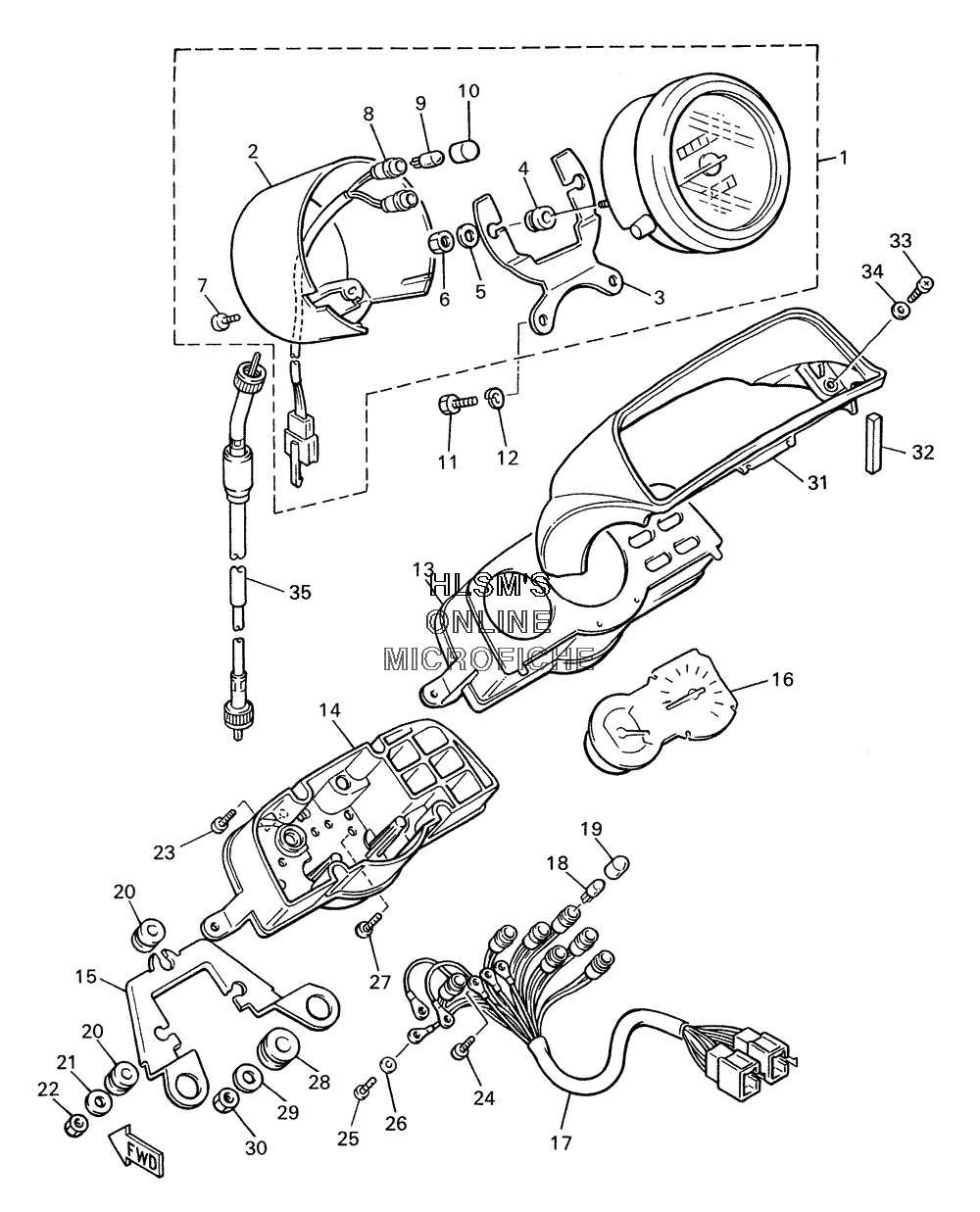

INSTRUMENT PANEL для Yamaha V MAX - 2005 года выпуска
-
№АртикулНазвание
-
11FK-83570-B0-00 SPEEDOMETER ASSY. (MPH)SPEEDOMETER ASSY. (MPH)
-
21GR-83507-01-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
31FK-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
412R-83523-00-00 ...DAMPER...DAMPER
-
590201-05725-00 ...WASHER, PLATE...WASHER, PLATE
-
695307-05600-00 ...NUT...NUT
-
790164-04009-00 ...SCREW, TAPPING...SCREW, TAPPING
-
81FK-83509-00-00 ...SOCKET CORD ASSY....SOCKET CORD ASSY.
-
942X-83517-00-00 ...BULB (12V-3W)...BULB (12V-3W)
-
101FK-83535-00-00 ...TUBE...TUBE
-
1197007-06016-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
133JP-8353G-10-00 CASE, UPPERCASE, UPPER
-
141FK-8353H-00-00 CASE, INNERCASE, INNER
-
151FK-83545-00-00 BRACKET, TACHOMETERBRACKET, TACHOMETER
-
163JP-83540-10-00 TACHOMETER ASSY.TACHOMETER ASSY.
-
173UF-83520-00-00 SOCKET CORD ASSY.SOCKET CORD ASSY.
-
1842X-83517-00-00 BULB (12V-3W)BULB (12V-3W)
-
191FK-83535-00-00 TUBETUBE
-
201FK-83523-00-00 DAMPERDAMPER
-
211E6-83524-00-00 WASHER, SPECIALWASHER, SPECIAL
-
2295301-05600-00 NUTNUT
-
2397701-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
2490159-03102-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2598502-03010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692902-03100-00 WASHER, WAVEWASHER, WAVE
-
2790167-04057-00 SCREW, TAPPINGSCREW, TAPPING
-
2890480-14229-00 GROMMETGROMMET
-
2990201-06071-00 WASHER, PLATEWASHER, PLATE
-
3095307-06600-00 NUTNUT
-
313JP-83559-00-00 COVER, METERCOVER, METER
-
321FK-83526-00-00 DAMPER 2DAMPER 2
-
3398507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492907-04600-00 WASHERWASHER
-
351FK-83550-20-00 SPEEDOMETER CABLE ASSY.SPEEDOMETER CABLE ASSY.
