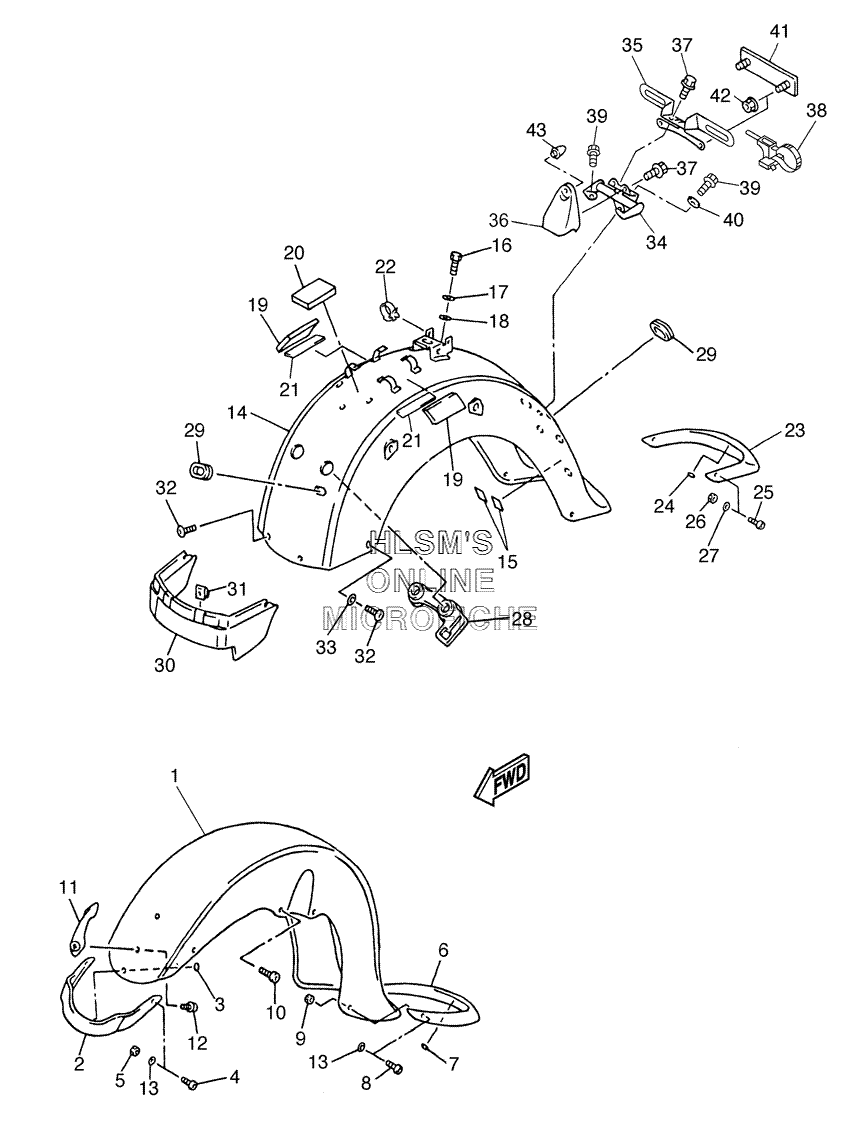

FENDER - FRONT / REAR для Yamaha ROYAL STAR MIDNIGHT VENTURE - 2006 года выпуска
-
№АртикулНазвание
-
14NL-YK215-10-P1 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
24NL-21561-11-00 FLAP 2FLAP 2
-
390183-06008-00 NUT, SPRINGNUT, SPRING
-
492014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
595304-05600-00 NUTNUT
-
64NL-21521-10-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
790183-06008-00 NUT, SPRINGNUT, SPRING
-
892014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
995304-05600-00 NUTNUT
-
1091314-08025-00 BOLTBOLT
-
114XY-21577-10-00 MASCOTMASCOT
-
1290159-06107-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
134NL-21575-10-00 SEAL 1SEAL 1
-
144XY-21610-10-P6 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
153MA-27491-00-00 PROTECTORPROTECTOR
-
1697007-08016-00 BOLTBOLT
-
1792907-08200-00 WASHERWASHER
-
1890202-09227-00 WASHER, PLATEWASHER, PLATE
-
194XY-21639-00-00 DAMPER 2DAMPER 2
-
204XY-21649-00-00 DAMPERDAMPER
-
214XY-21638-00-00 DAMPER 1DAMPER 1
-
2290464-18246-00 CLAMPCLAMP
-
234NL-21621-10-00 FLAPFLAP
-
2490183-06008-00 NUT, SPRINGNUT, SPRING
-
2592014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2695304-05600-00 NUTNUT
-
274NL-21575-10-00 SEAL 1SEAL 1
-
284NK-21649-00-00 DAMPERDAMPER
-
2990480-15061-00 GROMMETGROMMET
-
304NK-21621-00-P9 FLAP (SMX)FLAP (SMX)
-
3190183-06053-00 NUT, SPRINGNUT, SPRING
-
3290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3390202-06170-00 WASHER, PLATEWASHER, PLATE
-
344XY-2317W-00-00 STAY, 9STAY, 9
-
355BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
361D6-84703-00-00 BRACKETBRACKET
-
3795027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3890464-25002-00 CLAMPCLAMP
-
3995024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-06043-00 WASHER, PLATEWASHER, PLATE
-
411FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4295707-05500-00 NUT, FLANGENUT, FLANGE
-
4342U-21639-00-00 DAMPER 2DAMPER 2
