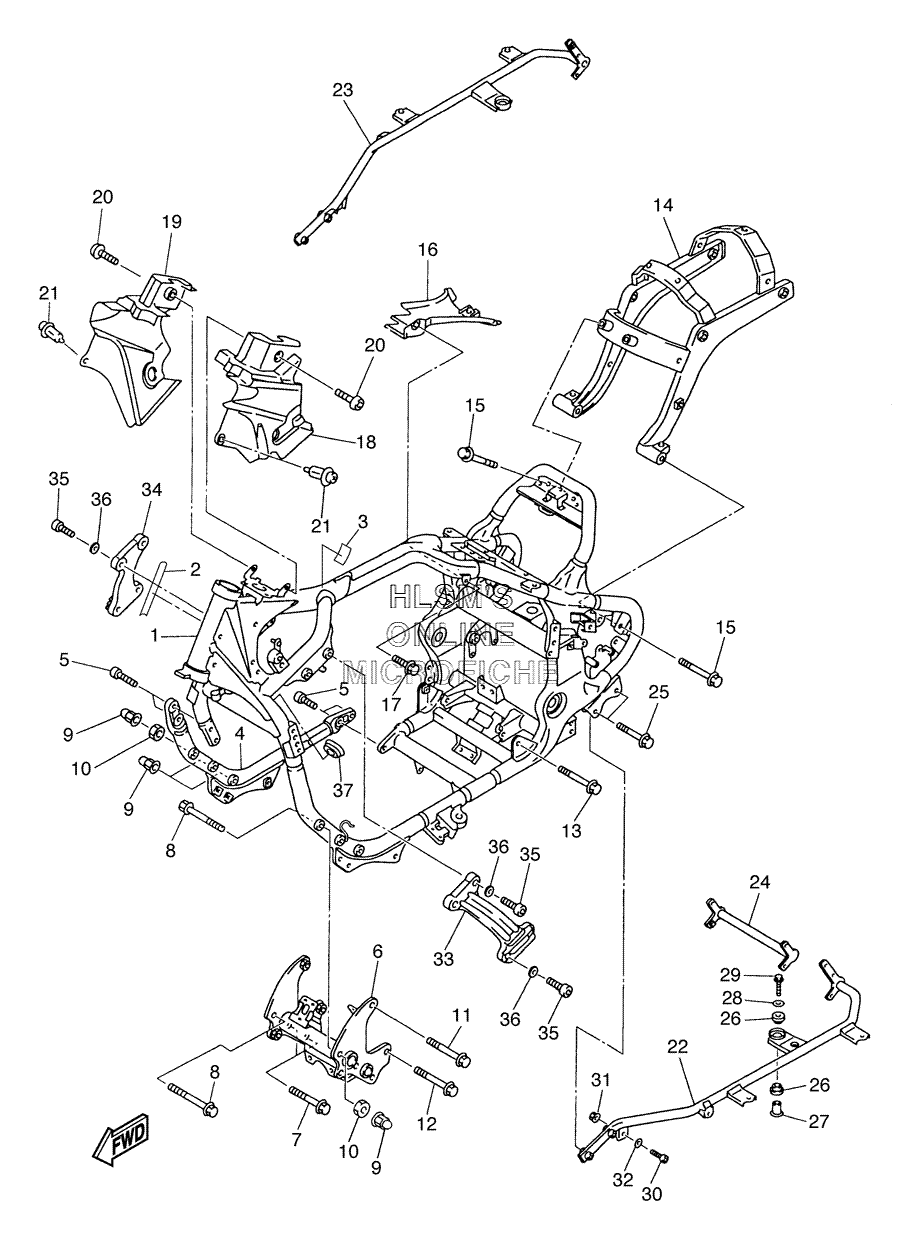

FRAME для Yamaha ROYAL STAR MIDNIGHT VENTURE - 2006 года выпуска
-
№АртикулНазвание
-
14XY-21110-00-33 FRAME COMP. (BLACK)FRAME COMP. (BLACK)
-
23HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
32AL-84553-00-00 DAMPERDAMPER
-
44XY-21150-00-33 DOWN TUBE COMP. 2 (BLACK)DOWN TUBE COMP. 2 (BLACK)
-
590110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
64XY-2141V-01-00 CROSS BAR COMPLETECROSS BAR COMPLETE
-
795827-10070-00 BOLT, FLANGEBOLT, FLANGE
-
895827-10080-00 BOLT, FLANGEBOLT, FLANGE
-
990176-10075-00 NUT, CROWNNUT, CROWN
-
1090170-10206-00 NUTNUT
-
1190105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1290105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390105-12252-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
144XY-21190-02-00 REAR FRAME COMP.REAR FRAME COMP.
-
1595827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
164XY-2117M-00-00 COVER 2COVER 2
-
1790119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
184XY-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
194XY-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
2090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2190269-06083-00 RIVETRIVET
-
224XY-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
234XY-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
244YE-2144F-01-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
2590105-08310-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2636Y-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
274G0-14638-00-00 COLLARCOLLAR
-
2890201-10669-00 WASHER, PLATEWASHER, PLATE
-
2995807-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3091317-08035-00 BOLTBOLT
-
3195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-08326-00 WASHER, PLATEWASHER, PLATE
-
334XY-21315-20-00 STAY, ENGINE 2STAY, ENGINE 2
-
344XY-21316-20-00 STAY, ENGINE 3STAY, ENGINE 3
-
3591314-10035-00 BOLTBOLT
-
3692990-10600-00 WASHER, PLATEWASHER, PLATE
-
3790480-01141-00 GROMMETGROMMET
