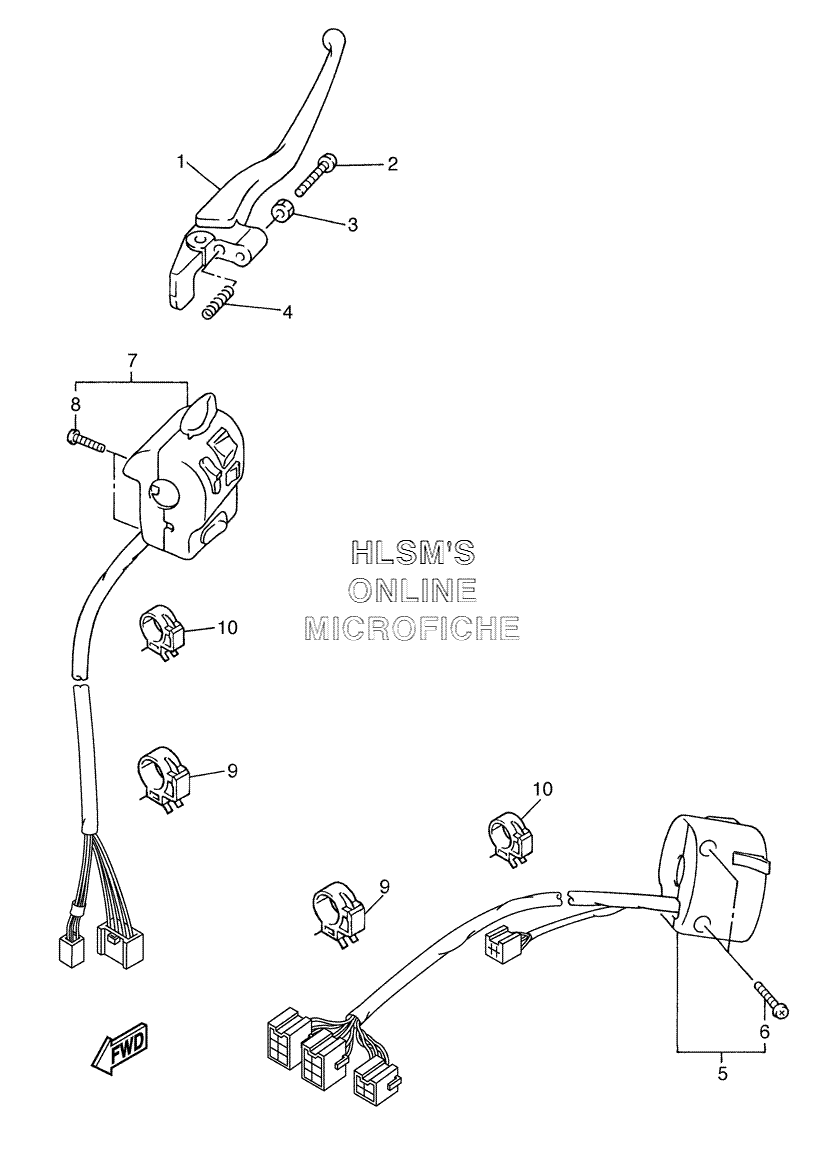

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROYAL STAR MIDNIGHT VENTURE - 2006 года выпуска
-
№АртикулНазвание
-
11D6-83922-00-00 LEVER 2LEVER 2
-
290149-06131-00 SCREWSCREW
-
390170-06010-00 NUTNUT
-
490501-10510-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
52C9-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
698504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
72C9-83969-00-00 SWITCH, HANDLE 5SWITCH, HANDLE 5
-
898504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
990464-25217-00 CLAMPCLAMP
-
1090464-20191-00 CLAMPCLAMP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR INDUCTION SYSTEM
- AUDIO EQUIPMENT
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CLUTCH - MASTER CYLINDER W/ MIRROR
- COWLING
- COWLING 2
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- ELECTRICAL 3
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- • HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- RADIATOR
- SADDLEBAG 1
- SADDLEBAG 2
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- TRAVEL BAG
- TRAVEL BAG 2
- VALVE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
