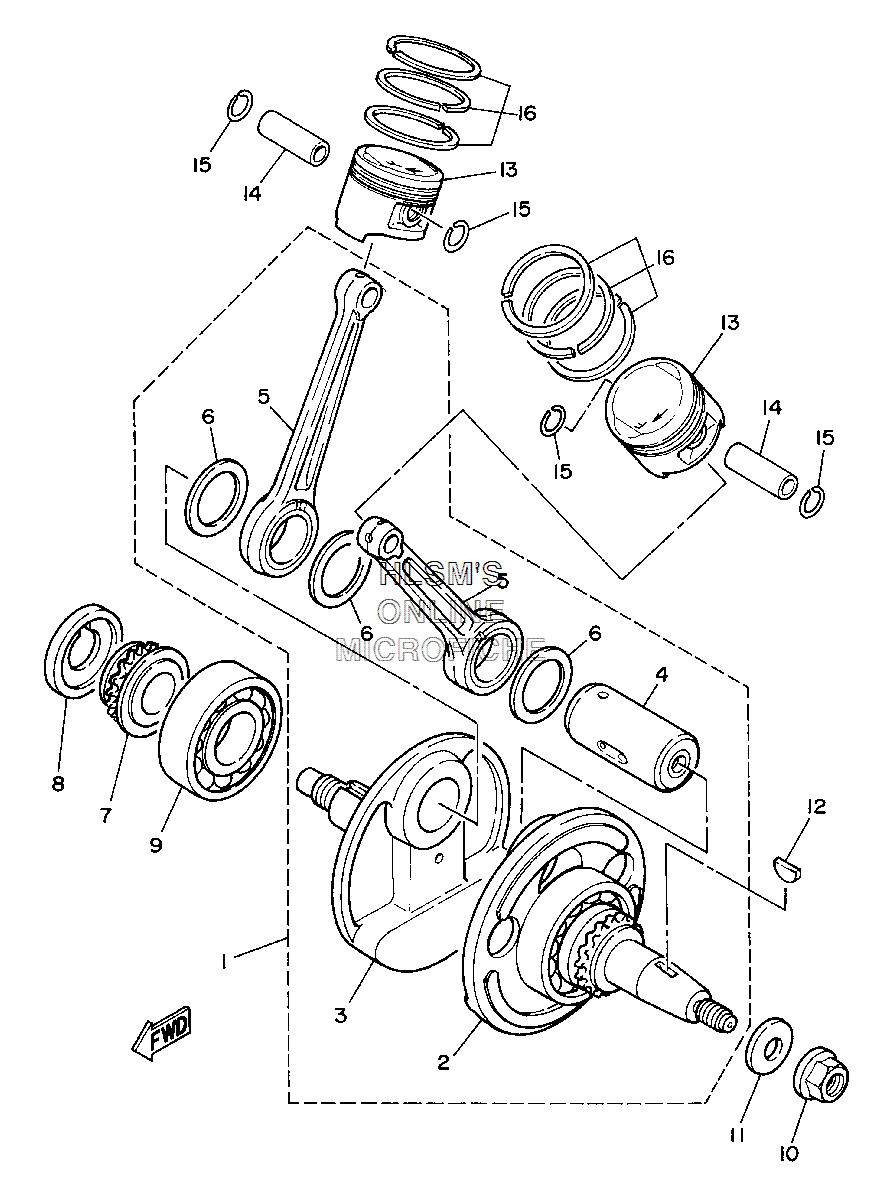

CRANKSHAFT - PISTON для Yamaha VIRAGO 250 - 2006 года выпуска
-
№АртикулНазвание
-
12UJ-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22UJ-W1141-00-00 ...CRANK 1...CRANK 1
-
32UJ-11422-00-00 ...CRANK 2...CRANK 2
-
42UJ-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
52UJ-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
690209-31300-00 ...WASHER, SPEC'L SHAPE...WASHER, SPEC'L SHAPE
-
72UJ-1154A-00-00 SPROCKET, CAM CHAIN 2SPROCKET, CAM CHAIN 2
-
82UJ-11478-00-00 COLLARCOLLAR
-
993306-30611-00 BEARINGBEARING
-
1090179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1190201-12191-00 WASHER, PLATEWASHER, PLATE
-
1290280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
132UJ-11631-00-A0 PISTON (STD)PISTON (STD)
-
132UJ-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
132UJ-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
1422K-11633-01-00 PIN, PISTONPIN, PISTON
-
1593450-14088-00 CIRCLIP, INNERCIRCLIP, INNER
-
1650M-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1650M-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
1650M-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
