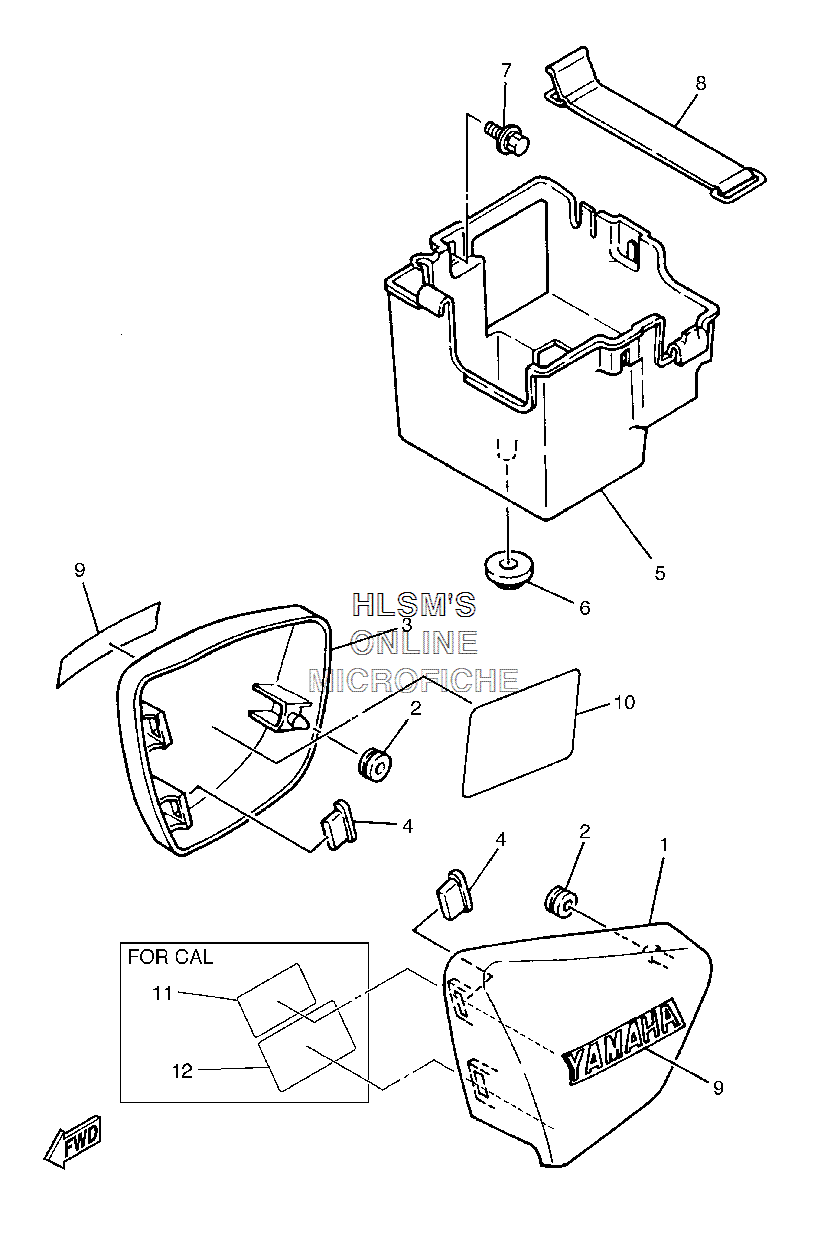

SIDE COVER для Yamaha VIRAGO 250 - 2006 года выпуска
-
№АртикулНазвание
-
12UJ-21711-00-P7 COVER, SIDE 1 (RAVEN)COVER, SIDE 1 (RAVEN)
-
290480-13428-00 GROMMETGROMMET
-
32UJ-21721-00-P7 COVER, SIDE 2 (RAVEN)COVER, SIDE 2 (RAVEN)
-
42N4-21717-00-00 DAMPERDAMPER
-
52UJ-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
690480-22362-00 GROMMETGROMMET
-
790119-06108-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
826H-82131-00-00 BAND, BATTERYBAND, BATTERY
-
999246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
102UJ-2179V-D0-00 PLATE, EPA 1 (NON CALIF.)PLATE, EPA 1 (NON CALIF.)
-
103BG-2179N-D0-00 PLATE, EPA 2 (CALIF.)PLATE, EPA 2 (CALIF.)
-
114YN-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
123BG-21684-A0-00 PLATE, ROUTINGPLATE, ROUTING
