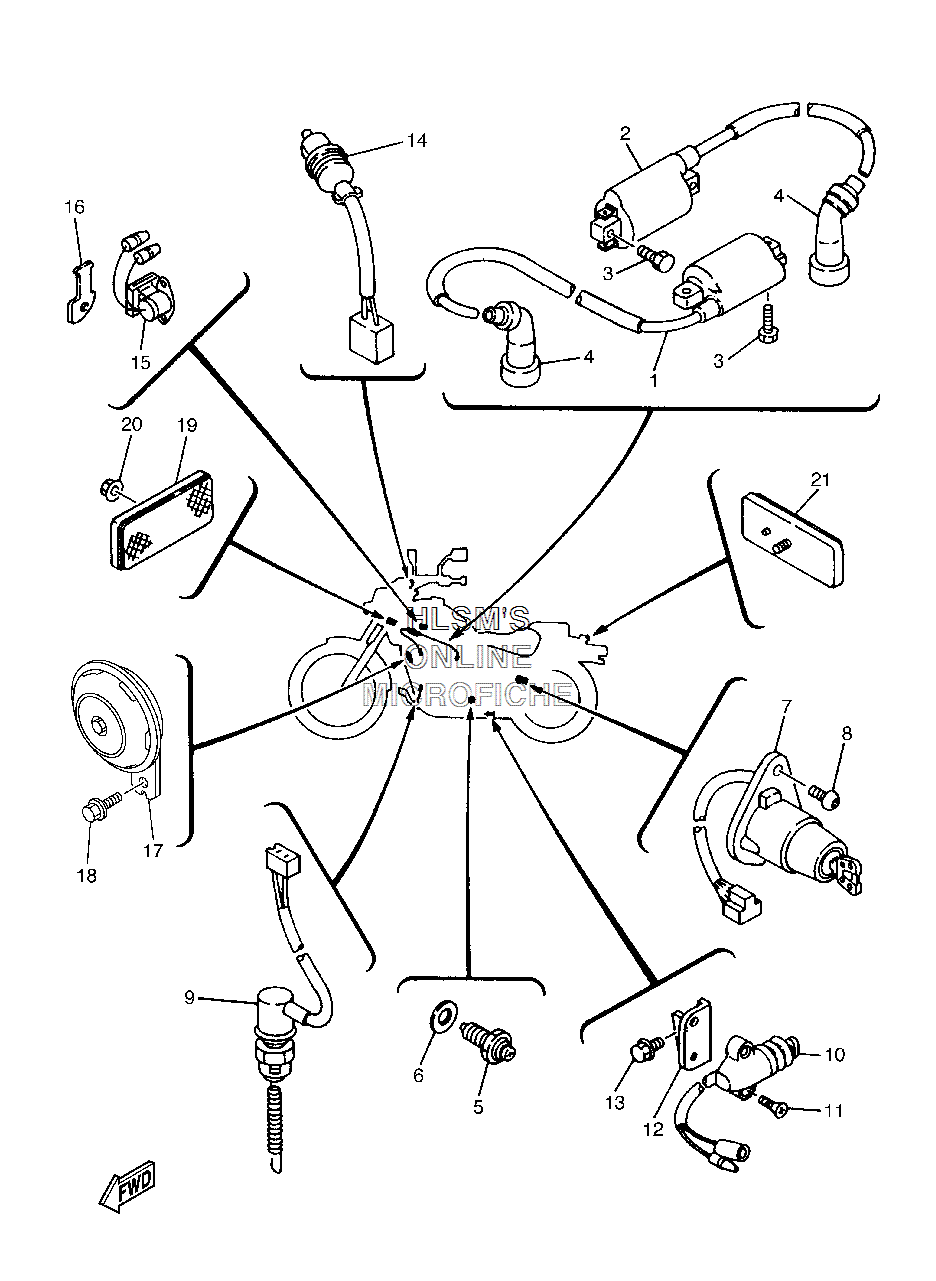

ELECTRICAL 2 для Yamaha VIRAGO 250 - 2006 года выпуска
-
№АртикулНазвание
-
12UJ-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
22UJ-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
397007-05020-00 BOLTBOLT
-
41UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
54KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
72UJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
890149-06228-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
92UJ-82530-02-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
103LD-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1190157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
122UJ-82565-00-00 PANEL, SWITCHPANEL, SWITCH
-
1395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
142UJ-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
155FU-82560-20-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
163BG-82571-00-00 PANEL, SWITCHPANEL, SWITCH
-
171HX-83371-11-00 HORNHORN
-
1895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
-
213Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
