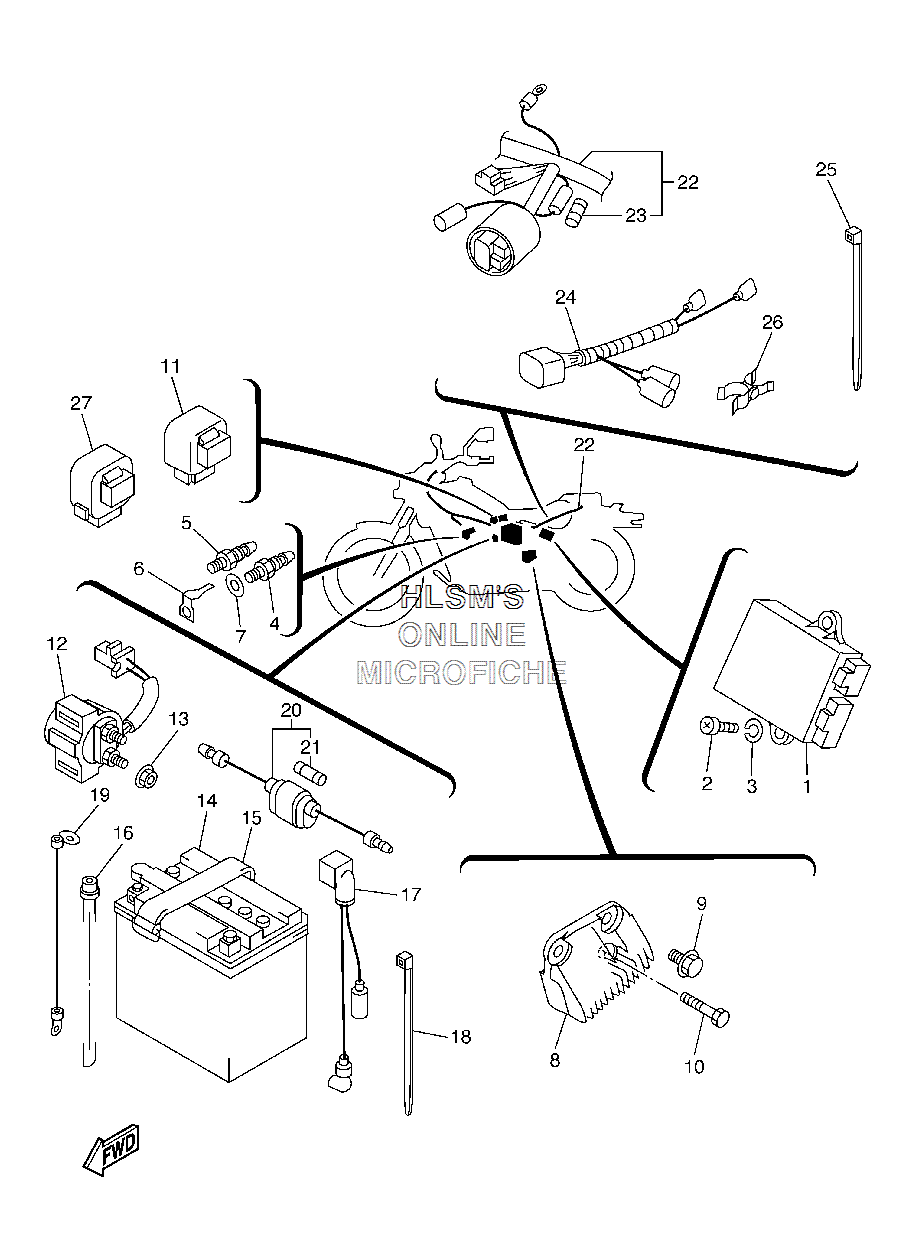

ELECTRICAL для Yamaha VIRAGO 250 - 2006 года выпуска
-
№АртикулНазвание
-
12UJ-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
45FU-83790-20-00 ...HEATER ASSY (30W) (CALIF ONLY)...HEATER ASSY (30W) (CALIF ONLY)
-
45FU-83790-00-00 HEATER ASSY (15W) (EXCEPT CALIF.)HEATER ASSY (15W) (EXCEPT CALIF.)
-
55FU-83790-20-00 HEATER ASSY (30W)HEATER ASSY (30W)
-
65FU-82103-00-00 TERMINAL 1TERMINAL 1
-
790201-08016-00 WASHER, PLATEWASHER, PLATE
-
83DM-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
990119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1097007-06030-00 BOLTBOLT
-
112UJ-81950-00-00 RELAY ASSYRELAY ASSY
-
1236Y-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1395707-06500-00 NUT, FLANGENUT, FLANGE
-
143DN-82110-01-00 BATTERY ASSY (G.S. GM10-3A-2)BATTERY ASSY (G.S. GM10-3A-2)
-
15118-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1690445-08248-00 HOSE (L500)HOSE (L500)
-
172UJ-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
185Y9-12491-00-00 CLAMP 1CLAMP 1
-
192UJ-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
202UJ-82150-02-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
21148-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
223BG-82590-20-00 WIRE HARNESS ASSY (CALIF ONLY)WIRE HARNESS ASSY (CALIF ONLY)
-
222UJ-82590-20-00 WIRE HARNESS ASSY (EXCEPT CALIF.)WIRE HARNESS ASSY (EXCEPT CALIF.)
-
231E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
242UJ-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
255Y9-12491-00-00 CLAMP 1CLAMP 1
-
2690464-16119-00 CLAMPCLAMP
-
273GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
