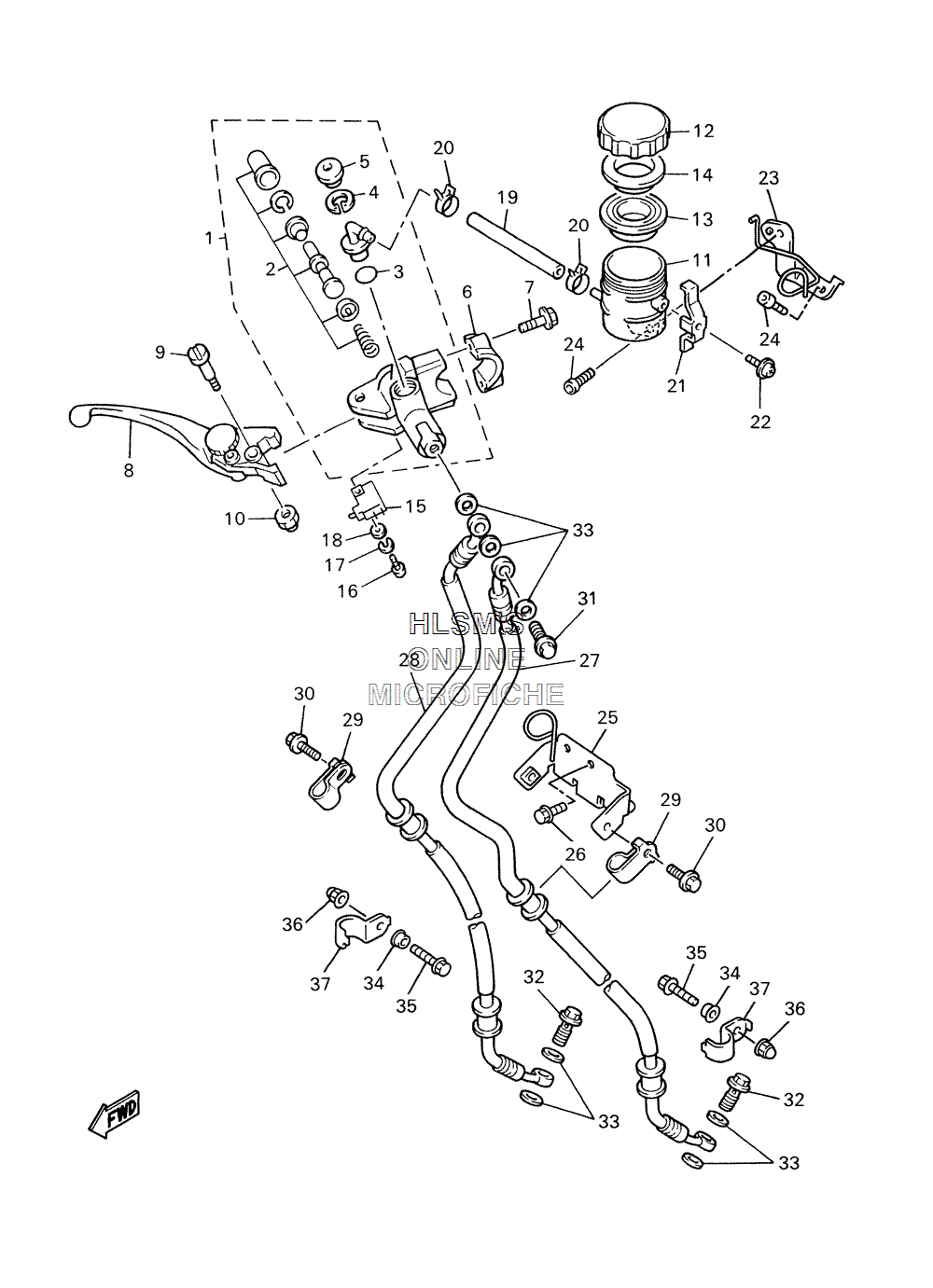

BRAKE - FRONT MASTER CYLINDER для Yamaha YZF600R - 2006 года выпуска
-
№АртикулНазвание
-
14SV-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25JJ-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
393210-15620-00 ...O-RING...O-RING
-
42VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
53FV-2589A-00-00 ...COVER, DUST...COVER, DUST
-
656A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
75EB-26332-00-00 BOLTBOLT
-
84SV-83922-00-00 LEVER 2LEVER 2
-
93FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1095606-06100-00 NUT, UNUT, U
-
113FV-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
123GM-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
133FV-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
142J2-25855-50-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
154HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1698502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1892902-04600-00 WASHER, PLATEWASHER, PLATE
-
193GM-2585F-00-00 HOSEHOSE
-
203PA-24356-00-00 CLIP, PIPE 1CLIP, PIPE 1
-
213FV-2589G-00-00 HOLDERHOLDER
-
223GM-2589H-00-00 SCREWSCREW
-
234TV-26292-00-00 STAYSTAY
-
2491317-06012-00 BOLTBOLT
-
254TV-2134K-00-00 BRACKET, HORNBRACKET, HORN
-
2695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
274TV-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
284TV-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2990461-10132-00 CLAMPCLAMP
-
3095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3190401-10160-00 BOLT, UNIONBOLT, UNION
-
3290401-10159-00 BOLT, UNIONBOLT, UNION
-
3390201-10118-00 WASHER, PLATEWASHER, PLATE
-
3490387-07717-00 COLLARCOLLAR
-
3590119-06097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690176-06065-00 NUT, CROWNNUT, CROWN
-
374SV-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
