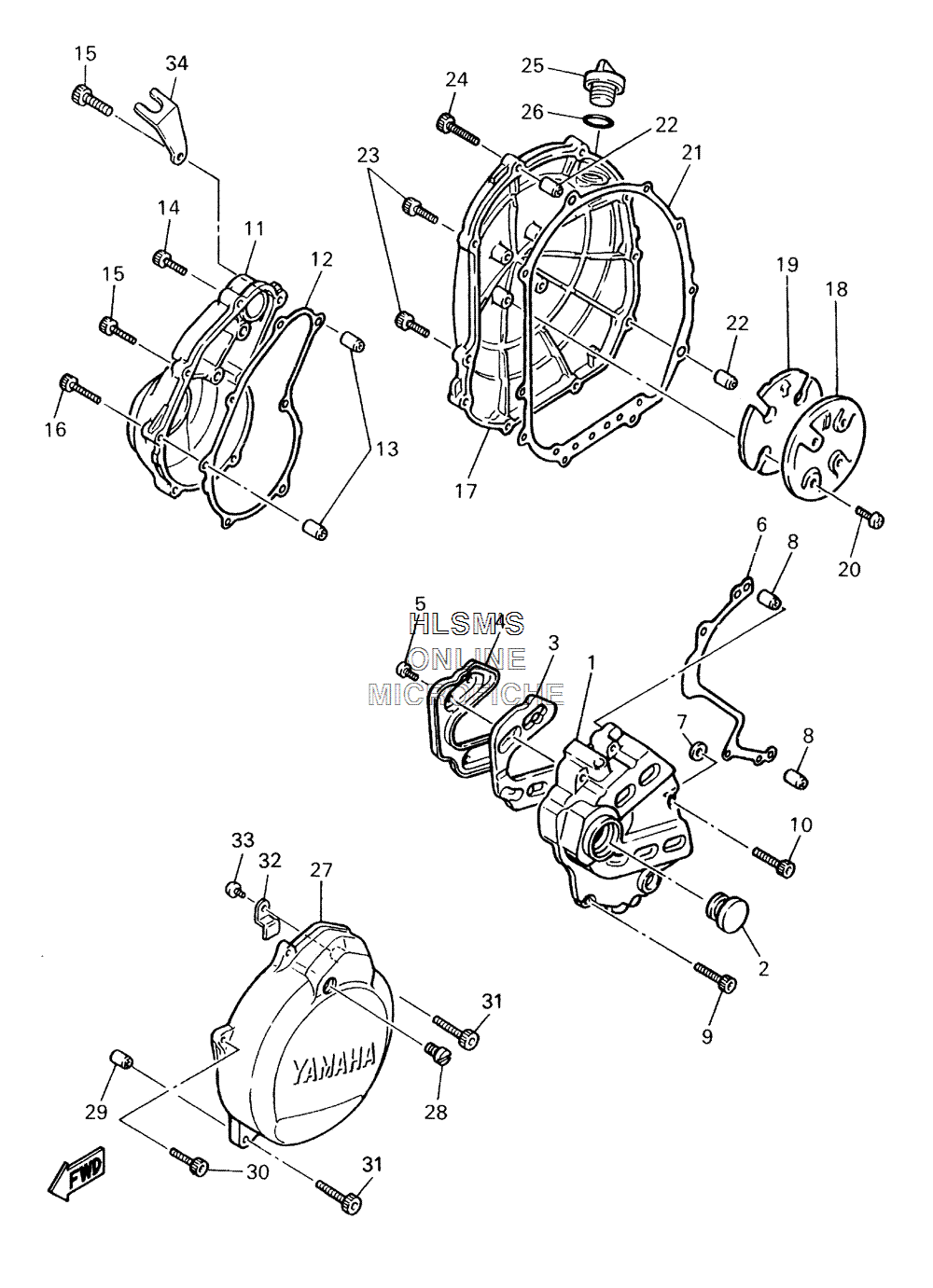

CRANKCASE COVER для Yamaha YZF600R - 2006 года выпуска
-
№АртикулНазвание
-
14JH-15411-00-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
21L9-15417-00-00 COVER, CAPCOVER, CAP
-
31WG-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
41WG-15427-00-00 COVER, CAP 2COVER, CAP 2
-
598907-05008-00 SCREW, BINDSCREW, BIND
-
63HE-15451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
73HE-15467-10-00 GASKETGASKET
-
899530-08016-00 PIN, DOWELPIN, DOWEL
-
990110-06149-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090110-06130-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
114JH-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
124TV-15461-00-00 GASKET, CRANKCASE COVER RGASKET, CRANKCASE COVER R
-
1399530-08016-00 PIN, DOWELPIN, DOWEL
-
1491314-06025-00 BOLTBOLT
-
1591314-06035-00 BOLTBOLT
-
1691314-06045-00 BOLTBOLT
-
174JH-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
181WG-15425-00-00 COVER, GENERATOR RCOVER, GENERATOR R
-
191WG-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
2098907-05008-00 SCREW, BINDSCREW, BIND
-
214TV-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2299530-08016-00 PIN, DOWELPIN, DOWEL
-
2391314-06025-00 BOLTBOLT
-
2491314-06035-00 BOLTBOLT
-
253F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2693210-27194-00 O-RINGO-RING
-
274TV-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
2890340-08014-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2999530-08016-00 PIN, DOWELPIN, DOWEL
-
3091314-06025-00 BOLTBOLT
-
3191314-06035-00 BOLTBOLT
-
3290462-10182-00 CLAMPCLAMP
-
3398507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
344JH-14413-00-00 STAYSTAY
