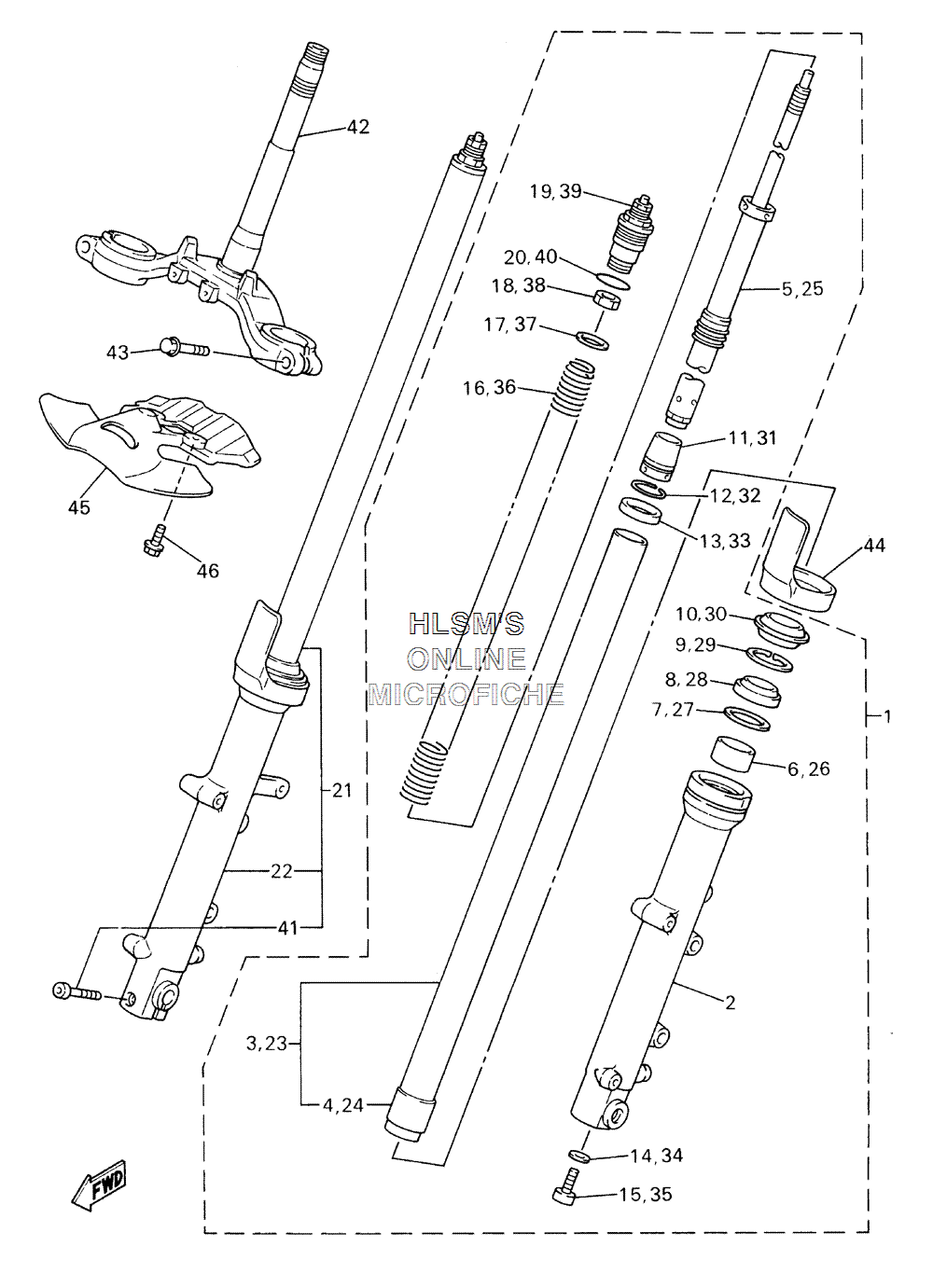

SUSPENSION - FRONT FORK для Yamaha YZF600R - 2006 года выпуска
-
№АртикулНазвание
-
14TV-23102-10-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24TV-23126-10-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
34TV-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
44FM-23171-40-00 ......METAL, SLIDE......METAL, SLIDE
-
54TV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
84EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
926H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
104EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
114TV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
124TV-23153-00-00 ...RING, SNAP...RING, SNAP
-
134TV-23184-00-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
142K8-23158-L0-00 ...GASKET...GASKET
-
153LC-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
164JH-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
173LC-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
183LC-23357-00-00 ...NUT...NUT
-
194JH-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
2043F-23188-10-00 ...O-RING...O-RING
-
214TV-23103-10-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
224TV-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
234TV-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
244FM-23171-40-00 ......METAL, SLIDE......METAL, SLIDE
-
254TV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
264FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
284EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2926H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
304EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
314TV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
324TV-23153-00-00 ...RING, SNAP...RING, SNAP
-
334TV-23184-00-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
342K8-23158-L0-00 ...GASKET...GASKET
-
353LC-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
364JH-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
373LC-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
383LC-23357-00-00 ...NUT...NUT
-
394JH-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
4043F-23188-10-00 ...O-RING...O-RING
-
4191314-08040-00 ...BOLT...BOLT
-
424TV-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
434TV-23356-00-00 BOLT 2BOLT 2
-
444PU-2331G-00-00 COVERCOVER
-
454TV-23818-00-00 COVER, STEERINGCOVER, STEERING
-
4690119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
