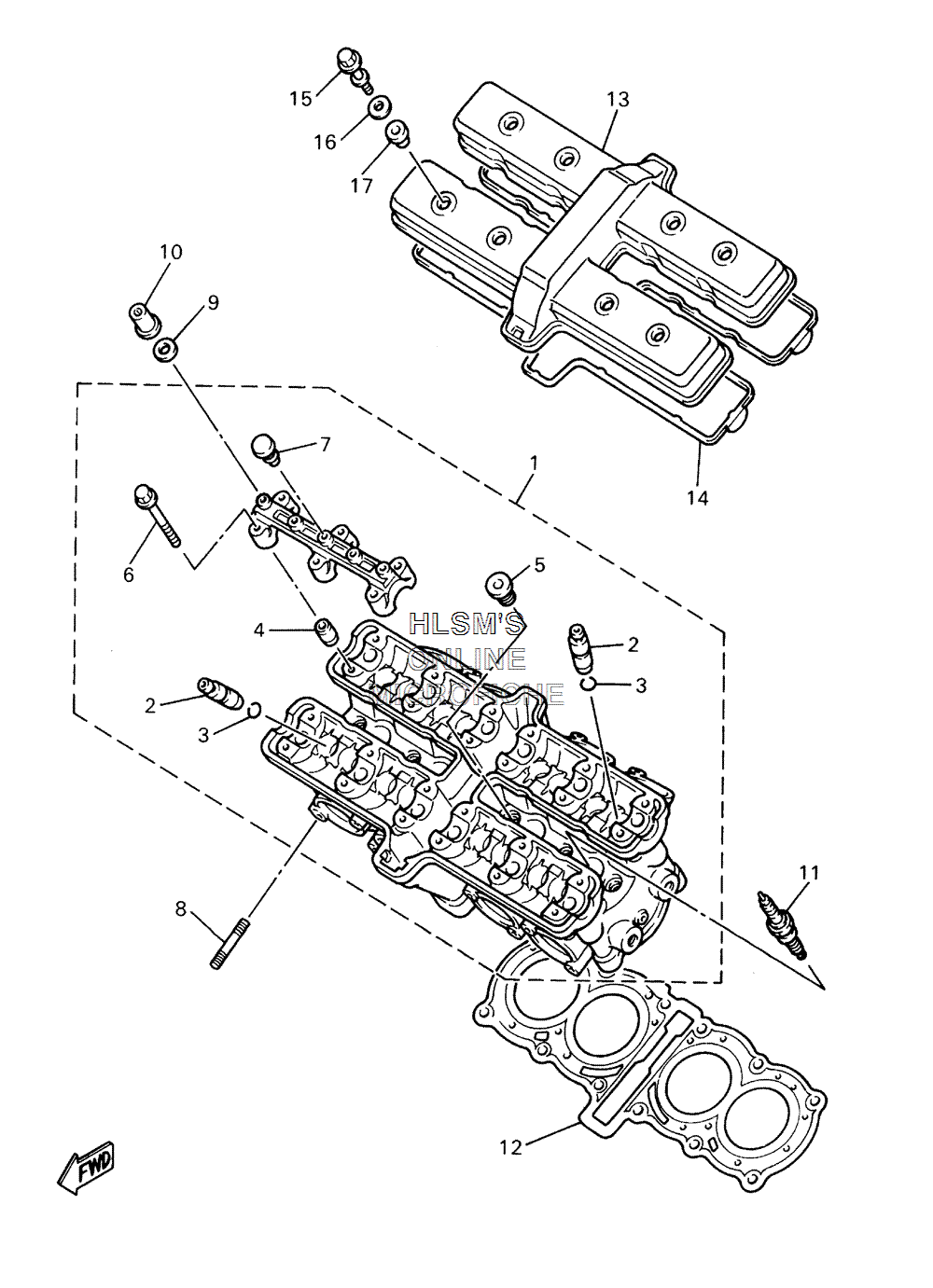

CYLINDER HEAD для Yamaha YZF600R - 2006 года выпуска
-
№АртикулНазвание
-
14MM-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23TJ-11133-10-00 ...GUIDE, VALVE...GUIDE, VALVE
-
393440-07149-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
690105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
790338-08174-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
895617-06630-00 BOLT, STUDBOLT, STUD
-
990201-090P4-00 WASHER, PLATEWASHER, PLATE
-
1090179-09612-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
11NGK-CR9E0-00-00 PLUG, SPARK (NGK R CR9E)PLUG, SPARK (NGK R CR9E)
-
124JH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
133TJ-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
144TV-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1590109-064F0-00 BOLTBOLT
-
1690209-11262-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
172GH-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
