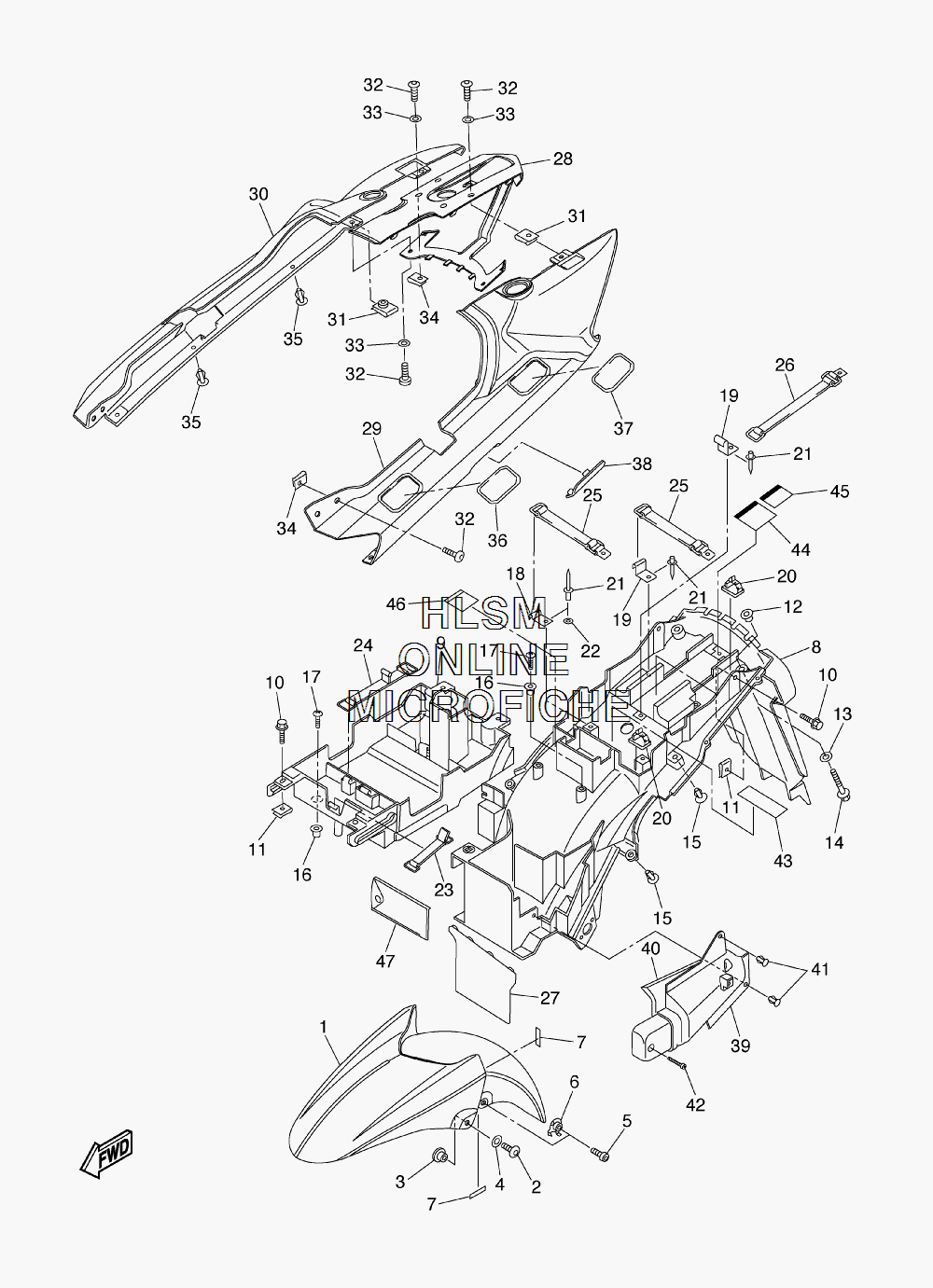

FENDER - FRONT / REAR для Yamaha FJR1300A (3P6A) [FJR13AW] - 2007 года выпуска
-
№АртикулНазвание
-
13P6-21511-00-P4 FENDER, FRONT (VDRM2)FENDER, FRONT (VDRM2)
-
290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-07006-00 COLLARCOLLAR
-
490202-06170-00 WASHER, PLATEWASHER, PLATE
-
592014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
63P6-21535-00-00 NUT 1NUT 1
-
75DM-28371-00-00 DAMPERDAMPER
-
83P6-21611-00-00 FENDER, REARFENDER, REAR
-
93P6-2160E-00-00 BOXBOX
-
1090119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06023-00 NUT, SPRINGNUT, SPRING
-
1290387-06050-00 COLLARCOLLAR
-
1390201-07081-00 WASHER, PLATEWASHER, PLATE
-
1495807-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1590269-06081-00 RIVETRIVET
-
1690338-08226-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
1797702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
185PS-2162A-00-00 HOOKHOOK
-
194HM-2162A-00-00 HOOKHOOK
-
2090464-13185-00 CLAMPCLAMP
-
2190267-40076-00 RIVETRIVET
-
2292902-04200-00 WASHER, PLAINWASHER, PLAIN
-
2336X-2811G-00-00 BANDBAND
-
244J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
255JW-21647-01-00 BANDBAND
-
263P6-21647-00-00 BANDBAND
-
275JW-21621-10-00 FLAPFLAP
-
283P6-21651-00-P0 COVER, REAR FENDER (S3)COVER, REAR FENDER (S3)
-
293P6-2471K-00-P0 COVER, TAIL 1 (S3)COVER, TAIL 1 (S3)
-
303P6-2472K-00-P0 COVER, TAIL 2 (S3)COVER, TAIL 2 (S3)
-
3190183-05024-00 NUT, SPRINGNUT, SPRING
-
3290110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3390202-05180-00 WASHER, PLATEWASHER, PLATE
-
3490183-050A0-00 NUT, SPRINGNUT, SPRING
-
3590269-06081-00 RIVETRIVET
-
363P6-2163E-00-P0 COVER, REAR FENDER 2 (S3)COVER, REAR FENDER 2 (S3)
-
373P6-2163E-10-P0 COVER, REAR FENDER 2 (S3)COVER, REAR FENDER 2 (S3)
-
383P6-2163F-00-P0 COVER, REAR FENDER 3 (S3)COVER, REAR FENDER 3 (S3)
-
393P6-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
403P6-21639-00-00 DAMPER 2DAMPER 2
-
4190269-06081-00 RIVETRIVET
-
4297702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
433P6-2179R-10-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
433P6-2179W-10-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
-
445PW-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
455SL-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
465VX-2178A-00-00 LABELLABEL
-
475JW-28100-00-00 TOOL KITTOOL KIT
-
485JW-W9390-00-00 FJR PROTECT STICKER SETFJR PROTECT STICKER SET
