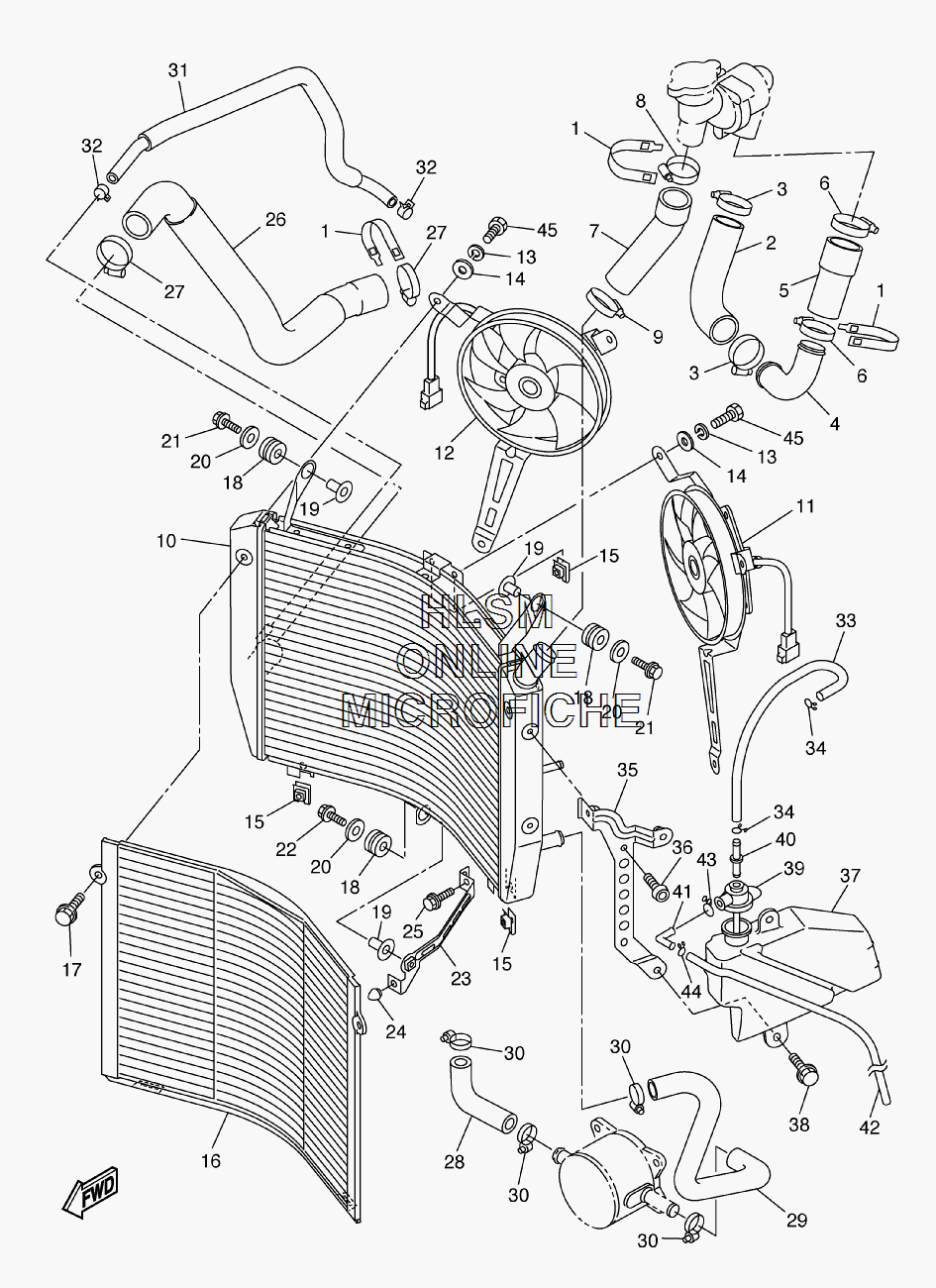

RADIATOR для Yamaha FJR1300A (3P6A) [FJR13AW] - 2007 года выпуска
-
№АртикулНазвание
-
15GV-1246E-00-00 COVER 2COVER 2
-
23P6-12551-00-00 HOSE 7HOSE 7
-
390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
43P6-12482-00-00 PIPE 2PIPE 2
-
53P6-12588-00-00 HOSE 5HOSE 5
-
690450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
73P6-1243F-00-00 HOSE, 3HOSE, 3
-
890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
990450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
103P6-12461-00-00 RADIATOR COMPRADIATOR COMP
-
113P6-12405-00-00 BLOWER ASSYBLOWER ASSY
-
123P6-12405-10-00 BLOWER ASSYBLOWER ASSY
-
1392907-06100-00 .WASHER, SPRING.WASHER, SPRING
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
151AA-12535-00-00 PLATEPLATE
-
163P6-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
1790119-06109-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890480-15363-00 GROMMETGROMMET
-
1990387-06039-00 COLLARCOLLAR
-
2090201-06071-00 WASHER, PLATEWASHER, PLATE
-
2195822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2295822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
233P6-12464-00-00 STAY, RADIATORSTAY, RADIATOR
-
245A8-21639-00-00 DAMPER 2DAMPER 2
-
2595827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
263P6-12589-00-00 HOSE 6HOSE 6
-
2790450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
285JW-12551-00-00 HOSE 7HOSE 7
-
293P6-12552-00-00 HOSE 8HOSE 8
-
3090450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
313P6-1243A-00-00 HOSE 1HOSE 1
-
3290467-11090-00 CLIPCLIP
-
333P6-1244G-00-00 HOSE, 4HOSE, 4
-
3490467-08075-00 CLIPCLIP
-
353P6-21873-00-00 BRACKET, RECOVERY TANKBRACKET, RECOVERY TANK
-
3692012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
373P6-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3890119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
393P6-21875-00-00 CAPCAP
-
404XY-14568-00-00 JOINTJOINT
-
4126H-21828-00-00 ELBOWELBOW
-
423P6-21816-00-00 PIPE 1PIPE 1
-
4390467-10M04-00 CLIPCLIP
-
4490467-08003-00 CLIPCLIP
-
4597007-06012-00 BOLTBOLT
