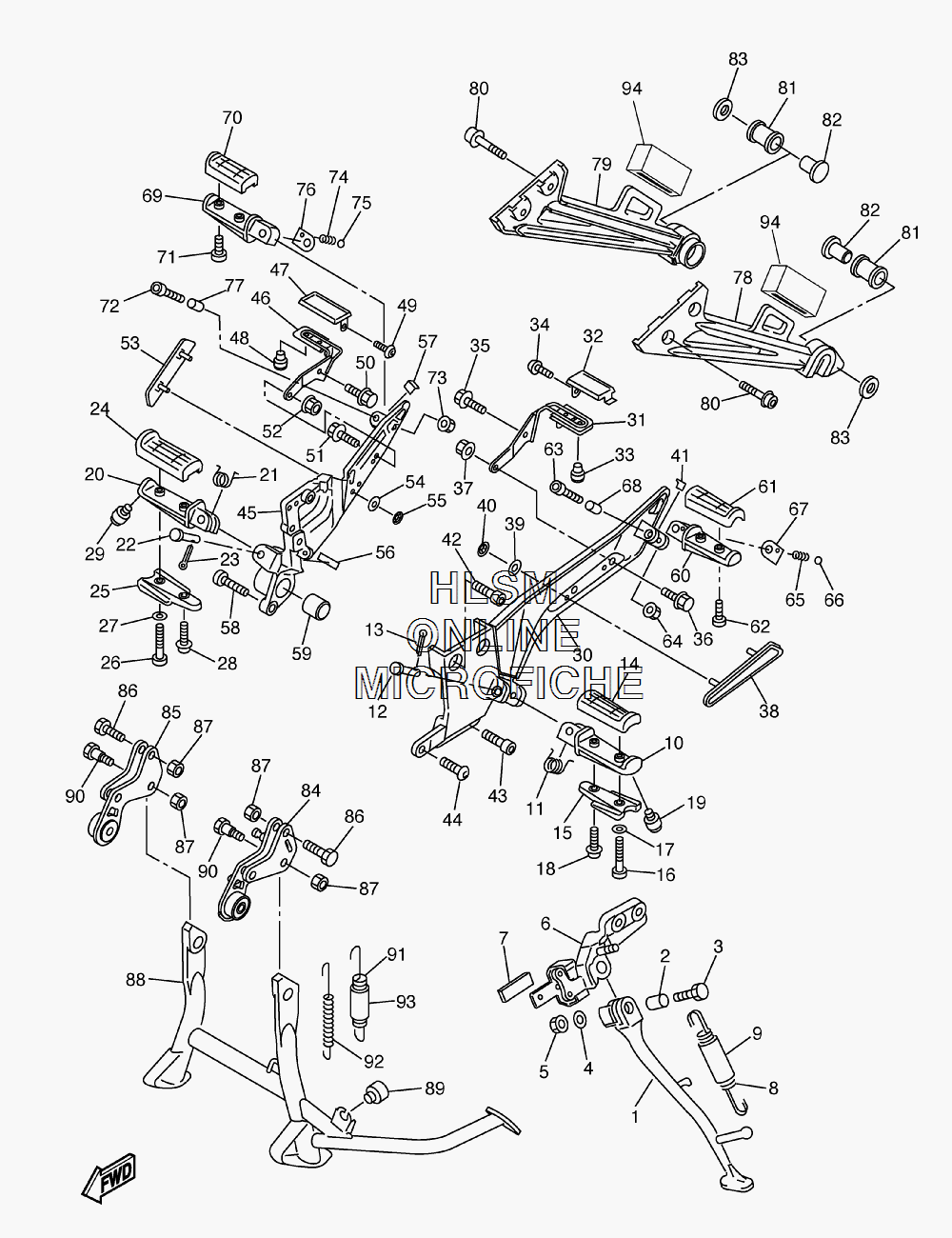

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FJR1300A (3P6A) [FJR13AW] - 2007 года выпуска
-
№АртикулНазвание
-
15JW-27311-00-00 STAND, SIDESTAND, SIDE
-
290387-10007-00 COLLARCOLLAR
-
390101-10006-00 BOLTBOLT
-
492907-10200-00 WASHER, PLAINWASHER, PLAIN
-
595607-10100-00 NUT, UNUT, U
-
63P6-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
73P6-27491-00-00 PROTECTORPROTECTOR
-
890506-20008-00 SPRING, TENSIONSPRING, TENSION
-
990445-197J2-00 HOSE (L60)HOSE (L60)
-
104BH-27451-01-00 FOOTRESTFOOTREST
-
1190508-183B9-00 SPRING, TORSIONSPRING, TORSION
-
1291701-08040-00 PINPIN
-
1391401-25015-00 PIN, COTTERPIN, COTTER
-
143YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
155JW-2741A-01-00 ARM 1ARM 1
-
1690159-05187-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1792907-05600-00 WASHER, PLATEWASHER, PLATE
-
1890159-05004-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
193HE-27435-00-00 BOLTBOLT
-
204BH-27461-01-00 FOOTRESTFOOTREST
-
2190508-184B0-00 SPRING, TORSIONSPRING, TORSION
-
2291701-08040-00 PINPIN
-
2391401-25015-00 PIN, COTTERPIN, COTTER
-
243YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
255JW-2741A-01-00 ARM 1ARM 1
-
2690159-05187-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2792907-05600-00 WASHER, PLATEWASHER, PLATE
-
2890159-05004-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
293HE-27435-00-00 BOLTBOLT
-
303P6-27442-00-00 BRACKET 2BRACKET 2
-
313P6-2743E-00-00 STOPPERSTOPPER
-
323P6-27275-00-00 PLATEPLATE
-
3390338-06007-00 PLUGPLUG
-
3492017-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3595807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
3697007-08016-00 BOLTBOLT
-
3795707-08500-00 NUT, FLANGENUT, FLANGE
-
383P6-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3990202-05057-00 WASHER, PLATEWASHER, PLATE
-
4090183-05004-00 NUT, SPRINGNUT, SPRING
-
415JW-23844-00-00 SEALSEAL
-
4290109-087F1-00 BOLTBOLT
-
4390109-10031-00 BOLTBOLT
-
4490149-10001-00 SCREWSCREW
-
453P6-27443-00-00 BRACKET 3BRACKET 3
-
463P6-2743H-00-00 STOPPER, 3STOPPER, 3
-
473P6-27275-00-00 PLATEPLATE
-
4890338-06007-00 PLUGPLUG
-
4992017-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5095807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5197007-08016-00 BOLTBOLT
-
5295707-08500-00 NUT, FLANGENUT, FLANGE
-
533P6-27423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
5490202-05057-00 WASHER, PLATEWASHER, PLATE
-
5590183-05004-00 NUT, SPRINGNUT, SPRING
-
563TU-2178A-00-00 LABELLABEL
-
575JW-23844-00-00 SEALSEAL
-
5890110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5990380-20213-00 BUSH, SOLIDBUSH, SOLID
-
605LV-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
613YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
6290157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
6391314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6495604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6590501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6693501-04011-00 BALL 1/4BALL 1/4
-
675JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
6890387-06014-00 COLLARCOLLAR
-
695LV-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
703YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
7190157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7291314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7395604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7490501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7593501-04011-00 BALL 1/4BALL 1/4
-
765JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
7790387-06014-00 COLLARCOLLAR
-
783P6-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
793P6-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
8090110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8136Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
8290387-10048-00 COLLARCOLLAR
-
8390201-10669-00 WASHER, PLATEWASHER, PLATE
-
845P5-27151-00-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
855P5-27152-00-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
8690101-10004-00 BOLTBOLT
-
8795607-10200-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
885P5-27111-00-00 STAND, MAINSTAND, MAIN
-
891A0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
9090109-101E6-00 BOLTBOLT
-
9190506-40001-00 SPRING, TENSIONSPRING, TENSION
-
9290506-23001-00 SPRING, TENSIONSPRING, TENSION
-
9390445-170K9-00 HOSE (L60)HOSE (L60)
-
945VS-W9753-00-00 SIDE CASE BRACKET RUBBER SETSIDE CASE BRACKET RUBBER SET
