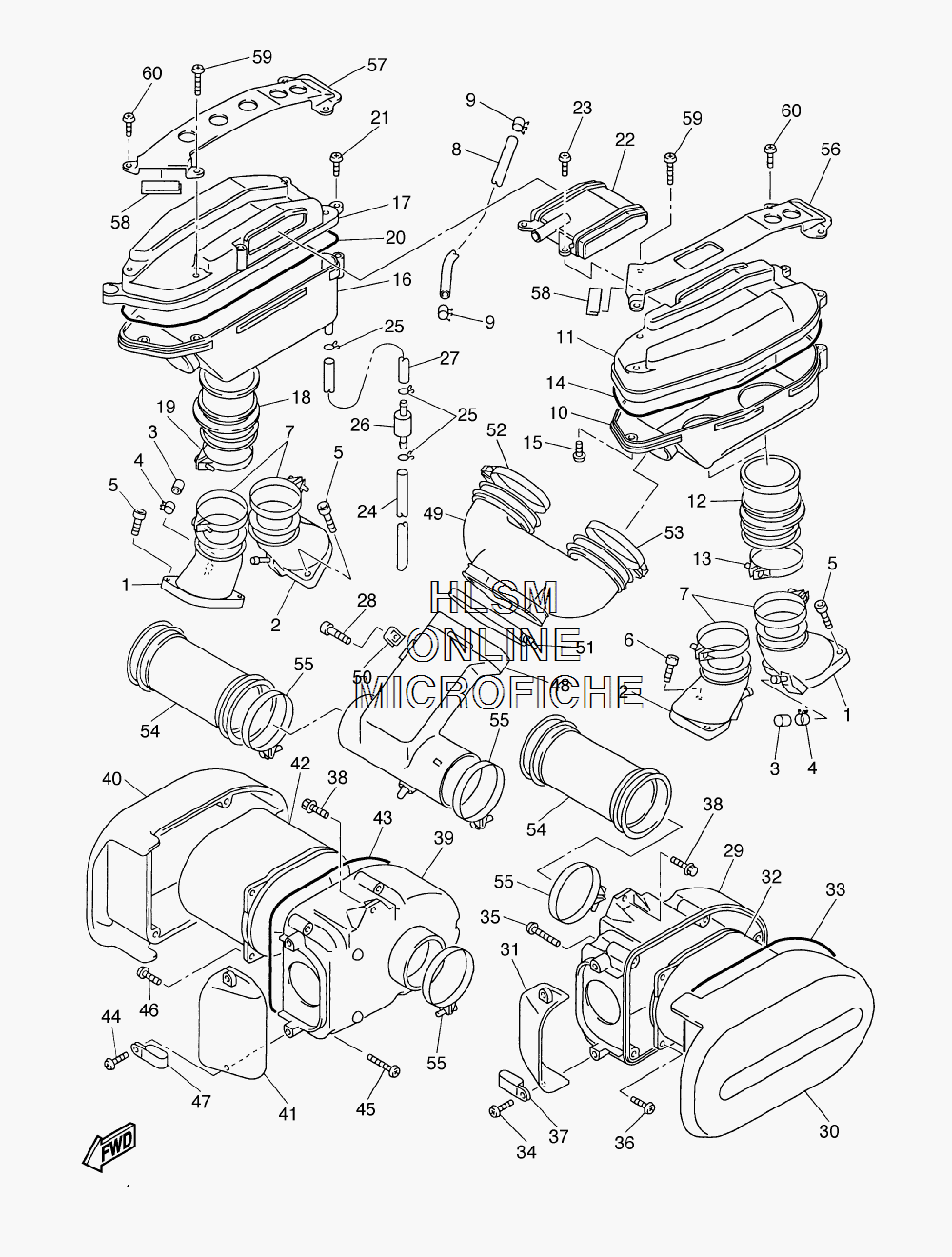

AIR CLEANER W/ INTAKE для Yamaha ROYAL STAR VENTURE S - 2008 года выпуска
-
№АртикулНазвание
-
14XY-13586-10-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
24XY-13596-10-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
316G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
490467-10039-00 CLIP, SCISSORCLIP, SCISSOR
-
591317-06020-00 BOLT (4FL)BOLT (4FL)
-
690110-06113-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74XY-13575-00-00 BANDBAND
-
84XY-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
990467-13123-00 CLIP (3YX)CLIP (3YX)
-
104XY-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
114XY-14417-01-00 COVER 1COVER 1
-
124XY-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1390460-58204-00 CLAMP, HOSECLAMP, HOSE
-
144XY-14457-00-00 SEALSEAL
-
1597707-50120-00 SCREW, TRUSSSCREW, TRUSS
-
164XY-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
174XY-14418-01-00 COVER 2COVER 2
-
184XY-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1990460-58204-00 CLAMP, HOSECLAMP, HOSE
-
204XY-14457-00-00 SEALSEAL
-
2197707-50120-00 SCREW, TRUSSSCREW, TRUSS
-
224XY-14485-00-00 PIPE, JOINTPIPE, JOINT
-
2397707-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
2490445-115J9-00 HOSE (L340)HOSE (L340)
-
2590467-11106-00 CLIPCLIP
-
264X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
272UJ-14419-00-00 PIPEPIPE
-
2891314-06035-00 BOLT, SOCKET HEATBOLT, SOCKET HEAT
-
294XY-14431-02-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
304XY-1442A-00-00 COVER, CLEANER CASE 3COVER, CLEANER CASE 3
-
314XY-14437-00-00 DUCTDUCT
-
324XY-14451-01-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
334XY-14452-00-00 SEALSEAL
-
3497707-50125-00 SCREW, TRUSSSCREW, TRUSS
-
3597707-50140-00 SCREW, TAPPINGSCREW, TAPPING
-
3697707-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
3790461-05003-00 CLAMPCLAMP
-
3895804-06012-00 BOLT, FLANGEBOLT, FLANGE
-
394XY-14431-02-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
404XY-1442A-00-00 COVER, CLEANER CASE 3COVER, CLEANER CASE 3
-
414XY-14437-00-00 DUCTDUCT
-
424XY-14451-01-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
434XY-14452-00-00 SEALSEAL
-
4497707-50125-00 SCREW, TRUSSSCREW, TRUSS
-
4597707-50140-00 SCREW, TAPPINGSCREW, TAPPING
-
4697707-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
4790461-05003-00 CLAMPCLAMP
-
484XY-1441A-00-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
494XY-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
5090183-06069-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
514XY-14455-00-00 BANDBAND
-
5290460-65169-00 CLAMP, HOSECLAMP, HOSE
-
531D6-11387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
544XY-14454-00-00 JOINTJOINT
-
5590460-65169-00 CLAMP, HOSECLAMP, HOSE
-
564XY-82361-00-00 CLAMP, CORDCLAMP, CORD
-
574XY-82362-00-00 CLAMP, CORD 2CLAMP, CORD 2
-
584XY-82388-01-00 PLATEPLATE
-
5997707-50140-00 SCREW, TAPPINGSCREW, TAPPING
-
6097707-50125-00 SCREW, TRUSSSCREW, TRUSS
