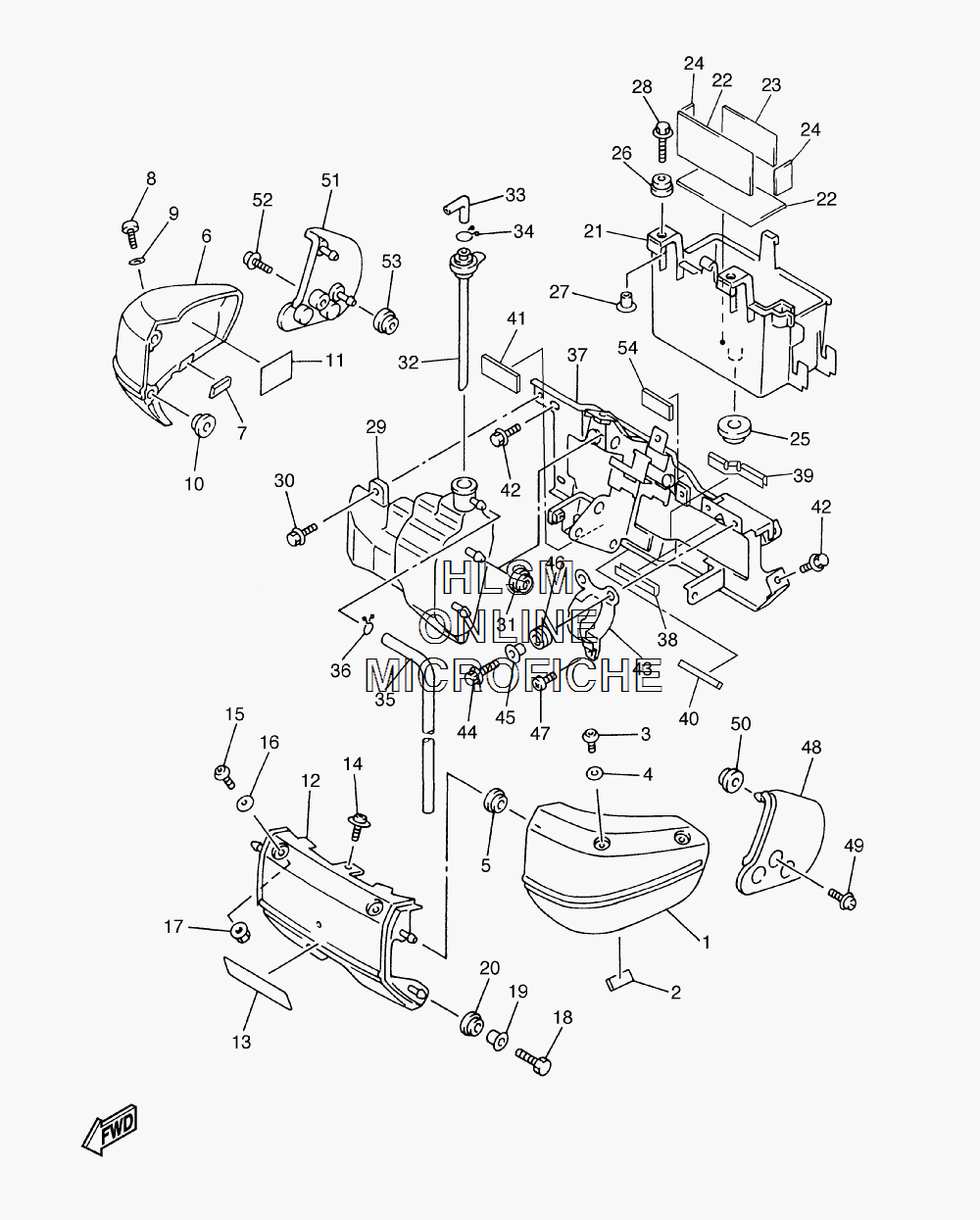

SIDE COVER для Yamaha ROYAL STAR VENTURE S - 2008 года выпуска
-
№АртикулНазвание
-
14NK-21711-00-PA COVER, SIDE 1 (DBNM8)COVER, SIDE 1 (DBNM8)
-
251Y-21639-00-00 DAMPER 2DAMPER 2
-
390149-06298-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
490202-06172-00 WASHER, NYLONWASHER, NYLON
-
590480-13567-00 GROMMETGROMMET
-
64NK-21721-00-PA COVER, SIDE 2 (DBNM8)COVER, SIDE 2 (DBNM8)
-
751Y-21639-00-00 DAMPER 2DAMPER 2
-
890149-06298-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990202-06172-00 WASHER, NYLONWASHER, NYLON
-
1090480-13567-00 GROMMETGROMMET
-
111JK-21735-00-00 SEAL 2SEAL 2
-
124XY-2117X-00-PA COVER 9 (DBNM8)COVER 9 (DBNM8)
-
1352W-2117G-00-00 PROTECTORPROTECTOR
-
1490159-06033-00 SCREW WITH WASHERSCREW WITH WASHER
-
1590149-06298-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1690202-06172-00 WASHER, NYLONWASHER, NYLON
-
1795707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
1897007-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1990387-067N5-00 COLLARCOLLAR
-
2090480-13398-00 GROMMETGROMMET
-
214NK-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
223Y6-21747-00-00 DAMPERDAMPER
-
235EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2422F-2139X-00-00 DAMPERDAMPER
-
2590480-20384-00 GROMMETGROMMET
-
2690480-13398-00 GROMMETGROMMET
-
2790387-067N5-00 COLLARCOLLAR
-
2890119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
294NK-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3090119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190480-13567-00 GROMMETGROMMET
-
324NK-21875-00-00 CAPCAP
-
3326H-21828-00-00 ELBOWELBOW
-
3490467-11019-00 CLIPCLIP
-
3590445-09117-00 HOSE (L540)HOSE (L540)
-
3690467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
374NK-21243-01-00 PLATE, BRIDGEPLATE, BRIDGE
-
384KB-21268-00-00 SEALSEAL
-
391D6-21268-00-00 SEALSEAL
-
4046X-21269-00-00 SEALSEAL
-
414U5-2317J-00-00 DAMPER 1DAMPER 1
-
4295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
433CV-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
4495817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4590387-062L2-00 COLLARCOLLAR
-
4690480-13163-00 GROMMETGROMMET
-
4798907-05010-00 SCREW, BINDSCREW, BIND
-
484NK-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
4990159-06033-00 SCREW WITH WASHERSCREW WITH WASHER
-
5090480-13567-00 GROMMETGROMMET
-
514NK-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
5290159-06033-00 SCREW WITH WASHERSCREW WITH WASHER
-
5390480-13567-00 GROMMETGROMMET
-
544U5-2317J-00-00 DAMPER 1DAMPER 1
