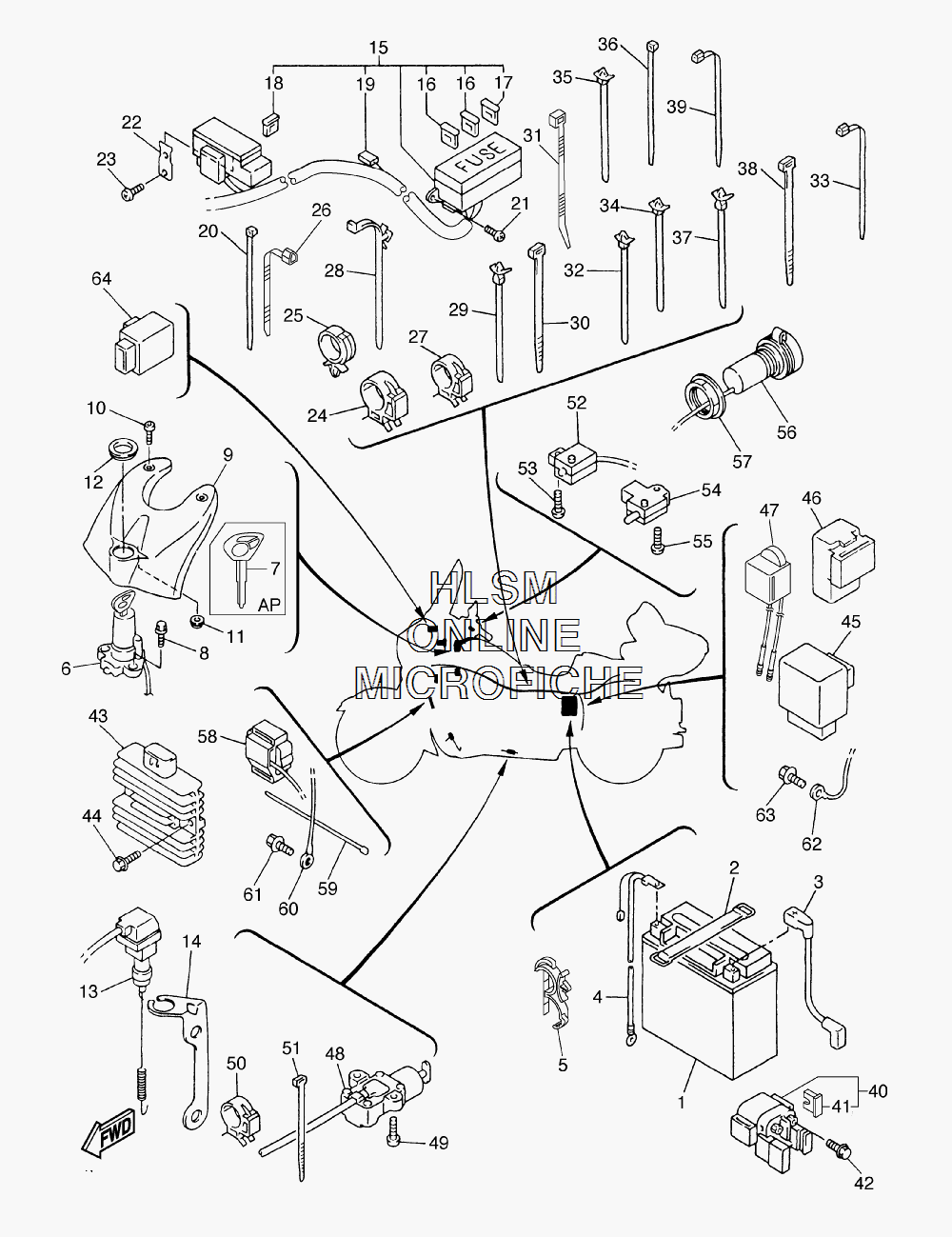

ELECTRICAL для Yamaha ROYAL STAR VENTURE S - 2008 года выпуска
-
№АртикулНазвание
-
1BTY-YTX20-LB-S0 BATTERY (YTX20L-BS)BATTERY (YTX20L-BS)
-
2120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34NK-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
41D6-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
590464-18246-00 CLAMPCLAMP
-
64XY-82501-11-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
75PX-82511-09-00 BLANK KEYBLANK KEY
-
890109-080G5-00 BOLTBOLT
-
94XY-8291G-00-00 COVER, SWITCHCOVER, SWITCH
-
1090149-06264-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1190480-01558-00 GROMMETGROMMET
-
124XY-82545-00-00 GROMMETGROMMET
-
134XY-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
144XY-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
154XY-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1642X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1736Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
181NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
193WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2090464-16061-00 BANDBAND
-
2198907-06012-00 BOLT, SOCKETBOLT, SOCKET
-
224XY-81953-00-00 STAY, RELAYSTAY, RELAY
-
2397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2490464-25217-00 CLAMPCLAMP
-
2590464-07209-00 CLAMPCLAMP
-
2690464-15195-00 CLAMPCLAMP
-
2790464-20191-00 CLAMPCLAMP
-
2890464-20213-00 CLAMPCLAMP
-
2990464-12036-00 CLAMPCLAMP
-
301UA-82591-00-00 BANDBAND
-
3190464-35132-00 CLAMPCLAMP
-
3290464-12089-00 CLAMPCLAMP
-
3390464-13073-00 CLAMPCLAMP
-
3490464-10112-00 CLAMPCLAMP
-
3590464-12036-00 CLAMPCLAMP
-
3690464-16061-00 BANDBAND
-
3790464-12036-00 CLAMPCLAMP
-
381UA-82591-00-00 BANDBAND
-
3990464-13077-00 CLAMPCLAMP
-
404BH-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
411AE-82151-00-00 ...FUSE (30 AMP, BLADE)...FUSE (30 AMP, BLADE)
-
4295027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
434XY-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
4495807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
455EA-81950-00-00 RELAY ASSY (FOR SIDE STAND)RELAY ASSY (FOR SIDE STAND)
-
461UY-81950-92-00 RELAY ASSYRELAY ASSY
-
475FU-82560-20-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
483LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4990157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5090464-10190-00 CLAMPCLAMP
-
511UA-82591-00-00 BANDBAND
-
524XY-83980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
5398907-04014-00 SCREW, BINDSCREW, BIND
-
544XY-82917-00-00 SWITCHSWITCH
-
5598907-04025-00 SCREW, BINDSCREW, BIND
-
564XY-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
574XY-82114-00-00 NUTNUT
-
584BH-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
5990464-16061-00 BANDBAND
-
604XY-8232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
6195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
624XY-82519-01-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
6395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
644XY-81950-00-00 RELAY ASSYRELAY ASSY
