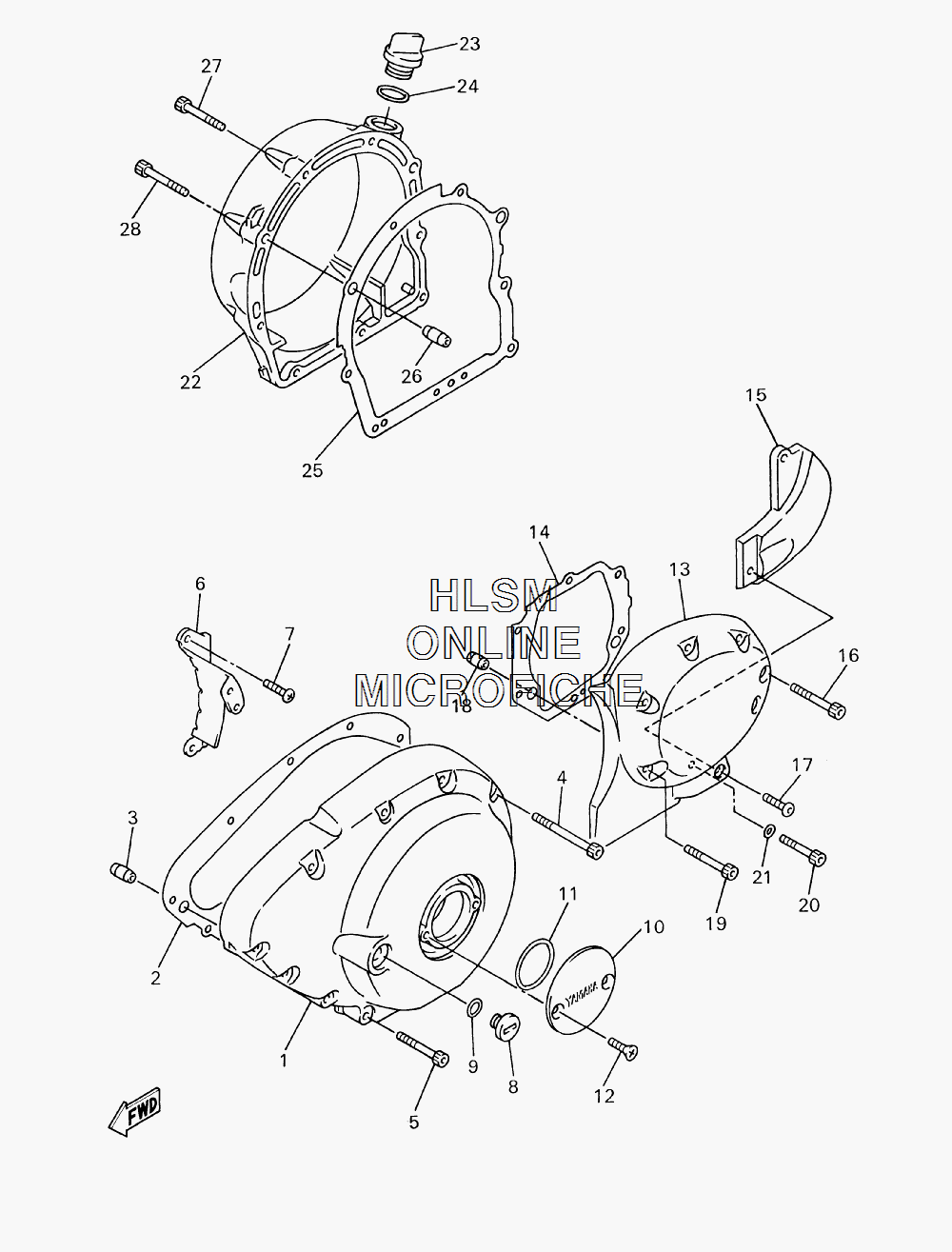

CRANKCASE COVER для Yamaha ROYAL STAR VENTURE S - 2008 года выпуска
-
№АртикулНазвание
-
14NK-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
24NK-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
491314-06060-00 BOLT, SOCKETBOLT, SOCKET
-
591314-06045-00 BOLT, SOCKETBOLT, SOCKET
-
64NK-15191-00-00 PLATEPLATE
-
798507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890340-14139-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
993210-14369-00 O-RINGO-RING
-
104NK-15427-00-00 COVER, CAP 2COVER, CAP 2
-
1193210-45150-00 O-RINGO-RING
-
1298704-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
134NK-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
143JP-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
154NK-15423-00-00 COVER RCOVER R
-
1691314-06025-00 BOLT (3DM)BOLT (3DM)
-
1792014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1899530-10114-00 PIN, DOWELPIN, DOWEL
-
1991314-06045-00 BOLT, SOCKETBOLT, SOCKET
-
2091314-06035-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
2190430-06014-00 GASKETGASKET
-
224NK-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
232H7-15363-00-00 PLUG, OILPLUG, OIL
-
2493210-27370-00 O-RINGO-RING
-
254NK-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2699530-10114-00 PIN, DOWELPIN, DOWEL
-
2791314-06025-00 BOLT (3DM)BOLT (3DM)
-
2891314-06035-00 BOLT,SOCKET HEADBOLT,SOCKET HEAD
