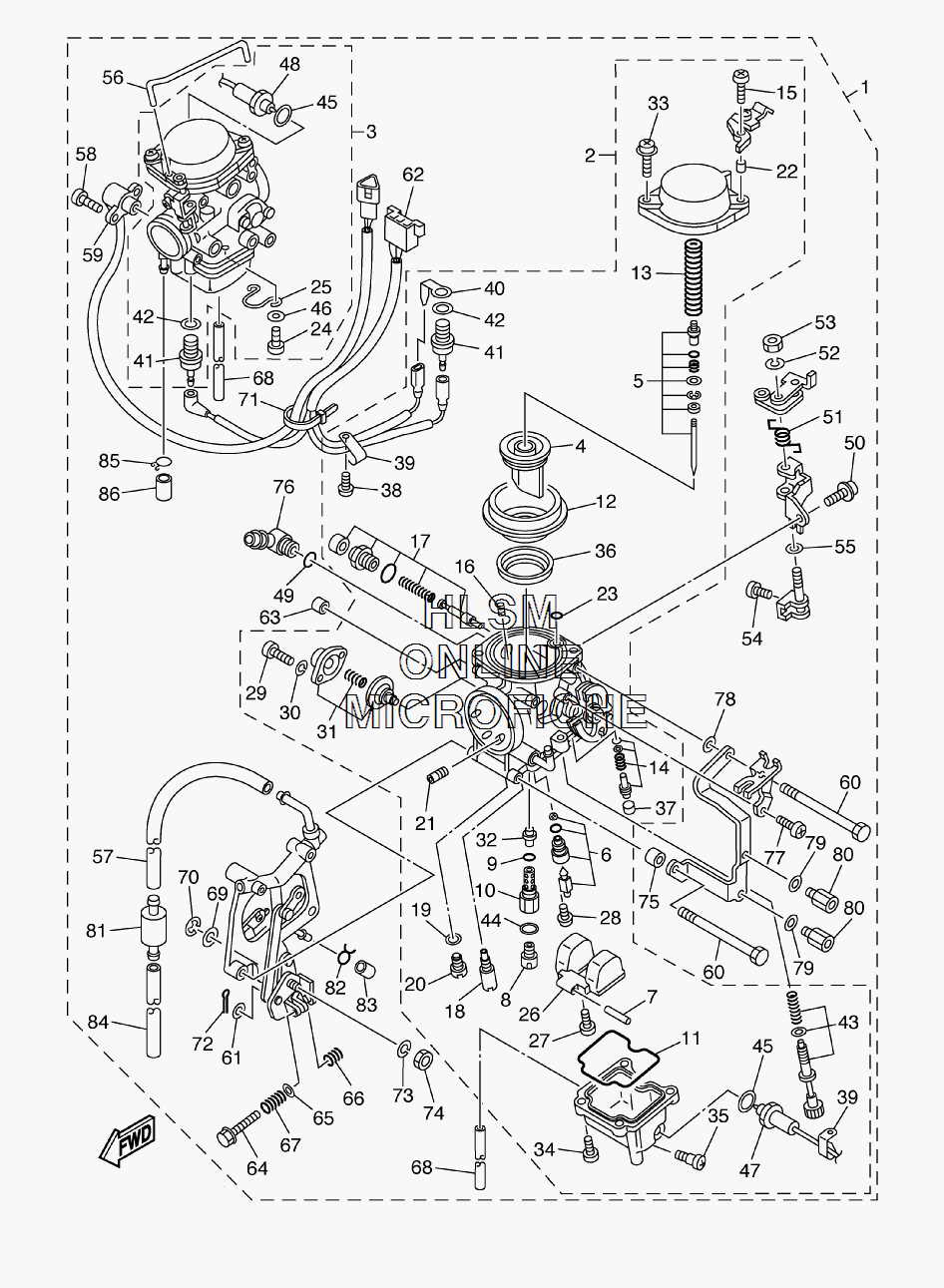

CARBURETOR для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
15YS-14900-00-00 CARBURETOR ASSY (CALIF ONLY)CARBURETOR ASSY (CALIF ONLY)
-
15YS-14906-00-00 CARBURETOR ASSY (EXCEPT CALIF)CARBURETOR ASSY (EXCEPT CALIF)
-
25YS-14901-00-00 ...CARBURETOR ASSY 1 (#1) (REAR)...CARBURETOR ASSY 1 (#1) (REAR)
-
35YS-14902-00-00 ...CARBURETOR ASSY 2 (#2) (FRONT)...CARBURETOR ASSY 2 (#2) (FRONT)
-
45EL-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
55EL-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
65EL-14107-12-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
7127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
83G2-1423A-73-00 ...JET, MAIN (#112.5) (#1) (REAR)...JET, MAIN (#112.5) (#1) (REAR)
-
83G2-14231-23-00 ...JET, MAIN (#115) (#2) (FRONT)...JET, MAIN (#115) (#2) (FRONT)
-
9583-14561-00-00 ...O-RING...O-RING
-
105KS-14261-00-00 ...HOLDER...HOLDER
-
115DM-14561-00-00 ...O-RING...O-RING
-
125EL-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
134KM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
144XY-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
1598502-05016-00 ...SCREW, PAN HEAD (#1) REAR...SCREW, PAN HEAD (#1) REAR
-
161HX-14231-29-00 ...JET, MAIN (#145)...JET, MAIN (#145)
-
175EL-1410A-00-00 ...STARTER SET...STARTER SET
-
184KM-14142-17-00 ...JET, PILOT (#17.5)...JET, PILOT (#17.5)
-
195EL-14918-00-00 ...RING...RING
-
203G2-1423A-59-00 ...JET, MAIN (#42.5)...JET, MAIN (#42.5)
-
211HX-1423E-25-00 ...JET, MAIN (#63.8)...JET, MAIN (#63.8)
-
224KM-14194-00-00 ...RING...RING
-
23354-14147-00-00 ...O-RING...O-RING
-
2498507-04012-00 ...SCREW, PAN HEAD (#2) FRONT...SCREW, PAN HEAD (#2) FRONT
-
2533M-14139-00-00 ...CLIP, PIPE (#2) FRONT...CLIP, PIPE (#2) FRONT
-
265DM-14985-00-00 ...FLOAT...FLOAT
-
2798507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
281FN-14565-00-00 ...SCREW...SCREW
-
2998507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3092907-04100-00 ...WASHER, SPRING (6TA)...WASHER, SPRING (6TA)
-
315EL-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
325DM-14141-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
334KM-14216-00-00 ...SCREW (#1) REAR...SCREW (#1) REAR
-
334KM-14216-00-00 ...SCREW (#2) FRONT...SCREW (#2) FRONT
-
3498507-04010-00 ...SCREW, PAN HEAD (#2) FRONT...SCREW, PAN HEAD (#2) FRONT
-
3498507-04010-00 ...SCREW, PAN HEAD (#1) REAR...SCREW, PAN HEAD (#1) REAR
-
3512R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
365EL-14561-00-00 ...O-RING...O-RING
-
373F9-14118-00-00 ...CAP...CAP
-
3898507-04006-00 ...SCREW, PAN HEAD (#1) REAR...SCREW, PAN HEAD (#1) REAR
-
3990461-06087-00 ...CLAMP (#1) REAR...CLAMP (#1) REAR
-
404DH-82103-00-00 ...TERMINAL 1 (#1) REAR...TERMINAL 1 (#1) REAR
-
415FU-83790-20-00 ...HEATER ASSY (30W)...HEATER ASSY (30W)
-
4290201-08016-00 ...WASHER, PLATE...WASHER, PLATE
-
435EL-14103-00-00 ...THROTTLE SCREW SET (#1) REAR...THROTTLE SCREW SET (#1) REAR
-
4422U-14561-00-00 ...O-RING...O-RING
-
45256-14956-01-00 ...WASHER...WASHER
-
4692902-04600-00 ...WASHER, PLATE (#2) FRONT...WASHER, PLATE (#2) FRONT
-
475KS-1410H-00-00 ...FUEL CUT SOLENOID VALVE (#1) REAR...FUEL CUT SOLENOID VALVE (#1) REAR
-
485KS-1410H-10-00 ...FUEL CUT SOLENOID VALVE (#2) FRONT...FUEL CUT SOLENOID VALVE (#2) FRONT
-
493LN-1416A-00-00 ...O-RING...O-RING
-
504SV-24453-00-00 ...SCREW...SCREW
-
515EL-14935-00-00 ...SPRING...SPRING
-
5292902-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
5395302-05700-00 ...NUT...NUT
-
5411H-14991-00-00 ...SCREW...SCREW
-
5531H-14194-00-00 ...RING...RING
-
565EL-14577-00-00 ...ROD...ROD
-
575EL-14987-10-00 ...HOSE...HOSE
-
584WM-14565-00-00 ...SCREW...SCREW
-
595EL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
605EL-14592-00-00 ...SCREW...SCREW
-
614NK-14285-00-00 ...WASHER...WASHER
-
625KS-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
635EL-14196-00-00 ...PIPE...PIPE
-
645EL-14991-00-00 ...SCREW...SCREW
-
6522F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
665EL-14212-00-00 ...SPRING, PILOT ADJUSTING...SPRING, PILOT ADJUSTING
-
673F7-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
685EL-14197-10-00 ...PIPE...PIPE
-
691A8-14953-00-00 ...WASHER...WASHER
-
70812-14137-00-00 ...CLIP...CLIP
-
7135H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
7291492-10008-00 ...PIN, COTTER...PIN, COTTER
-
7392906-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
7495382-06700-00 ...NUT...NUT
-
755EL-14149-00-00 ...PIPE...PIPE
-
765EL-14251-00-00 ...NIPPLE...NIPPLE
-
7798507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
7892902-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
791FK-14179-00-00 ...WASHER, STARTER LEVER...WASHER, STARTER LEVER
-
805EL-14592-10-00 ...SCREW...SCREW
-
814X7-2149Y-00-00 ...FILTER ASSY...FILTER ASSY
-
828A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
83895-14169-00-00 ...CAP...CAP
-
845EL-14987-20-00 ...HOSE...HOSE
-
8555X-14937-00-00 ...CLIP...CLIP
-
865GK-1491A-00-00 ...CAP...CAP
