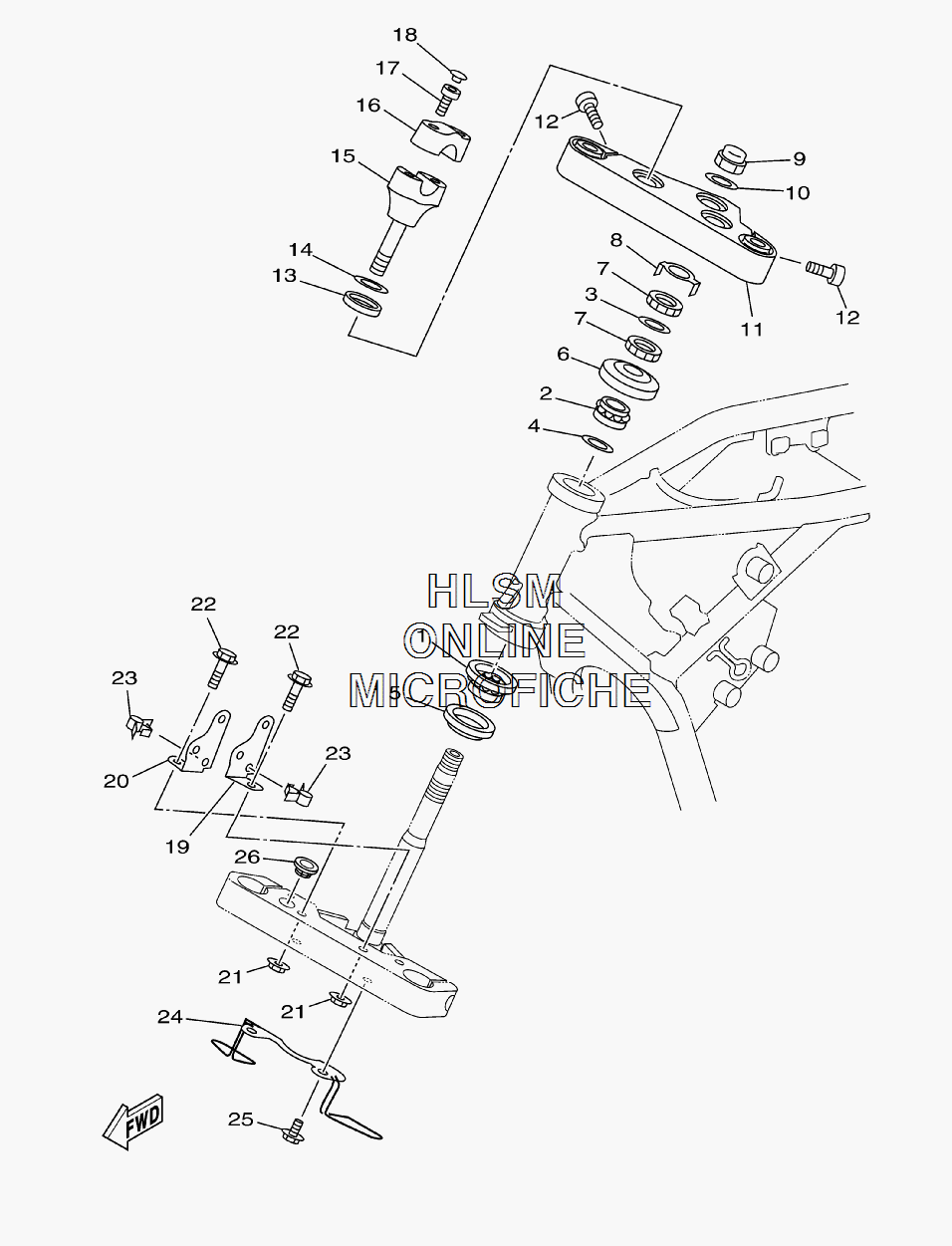

STEERING для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
193399-99932-00 BEARING, SPECIALBEARING, SPECIAL
-
293399-99931-00 BEARING, SPECIALBEARING, SPECIAL
-
390202-26142-00 WASHER, PLATEWASHER, PLATE
-
490202-24190-00 WASHER, PLATEWASHER, PLATE
-
53FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
61W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
790179-25033-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
826H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
990176-22081-00 NUT, CROWNNUT, CROWN
-
1090201-220T0-00 WASHER, PLATEWASHER, PLATE
-
114VR-W2341-40-00 CROWN, HANDLECROWN, HANDLE
-
1291314-08030-00 BOLT (3BM)BOLT (3BM)
-
133DM-23445-00-00 DAMPERDAMPER
-
1490201-14220-00 WASHER, PLATEWASHER, PLATE
-
154VR-23442-10-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
164VR-23441-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1791314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
1890338-08163-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
194TR-23175-10-00 BRACKET, HEADLIGHT STAY 1BRACKET, HEADLIGHT STAY 1
-
204TR-23176-10-00 BRACKET, HEADLIGHT STAY 2BRACKET, HEADLIGHT STAY 2
-
2195707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
2295024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2390464-15157-00 CLAMPCLAMP
-
245PB-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
265PB-2314E-00-00 COVER, HOSECOVER, HOSE
