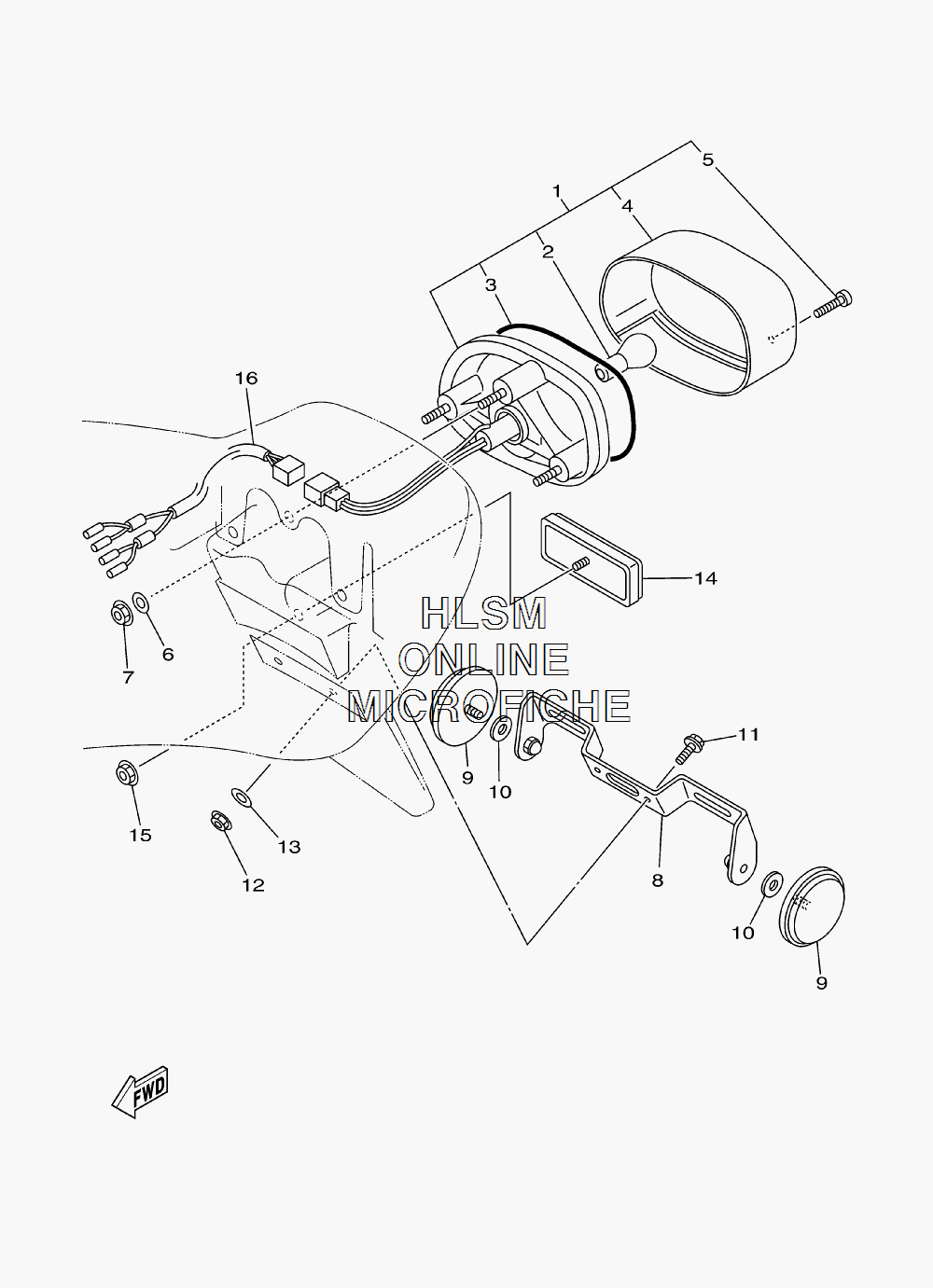

TAILLIGHT для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
14TV-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34TR-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
44TR-84733-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
597706-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
690201-06380-00 WASHER, PLATEWASHER, PLATE
-
795607-06100-00 NUT, UNUT, U
-
85EL-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
9449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1090201-05033-00 WASHER, PLATEWASHER, PLATE
-
1195027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-06100-00 NUT, UNUT, U
-
1390201-06063-00 WASHER, PLATEWASHER, PLATE
-
143Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1595707-05500-00 NUT, FLANGENUT, FLANGE
-
165KP-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
