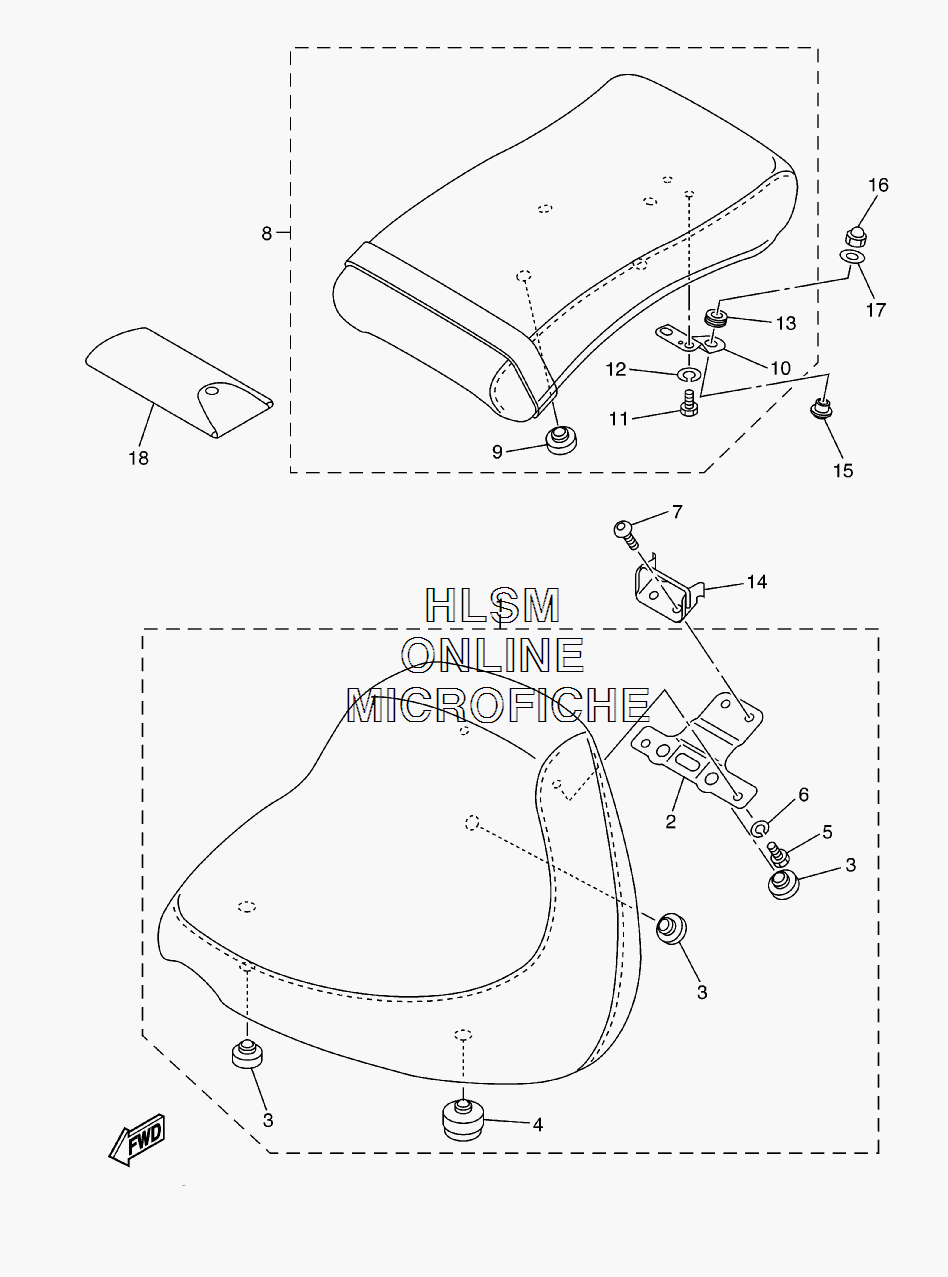

SEAT для Yamaha V STAR 1100 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
15PB-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25EL-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
41T4-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
85PB-24750-10-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
922W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
105PB-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1197007-06012-00 ...BOLT...BOLT
-
1292907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
135YS-24742-00-00 ...GROMMET...GROMMET
-
145EL-2475N-00-00 BRACKETBRACKET
-
155PB-2471M-00-00 COLLAR .2COLLAR .2
-
1690176-08002-00 NUT, CROWNNUT, CROWN
-
1790201-08042-00 WASHER, PLATEWASHER, PLATE
-
185EL-28100-10-00 TOOL KITTOOL KIT
