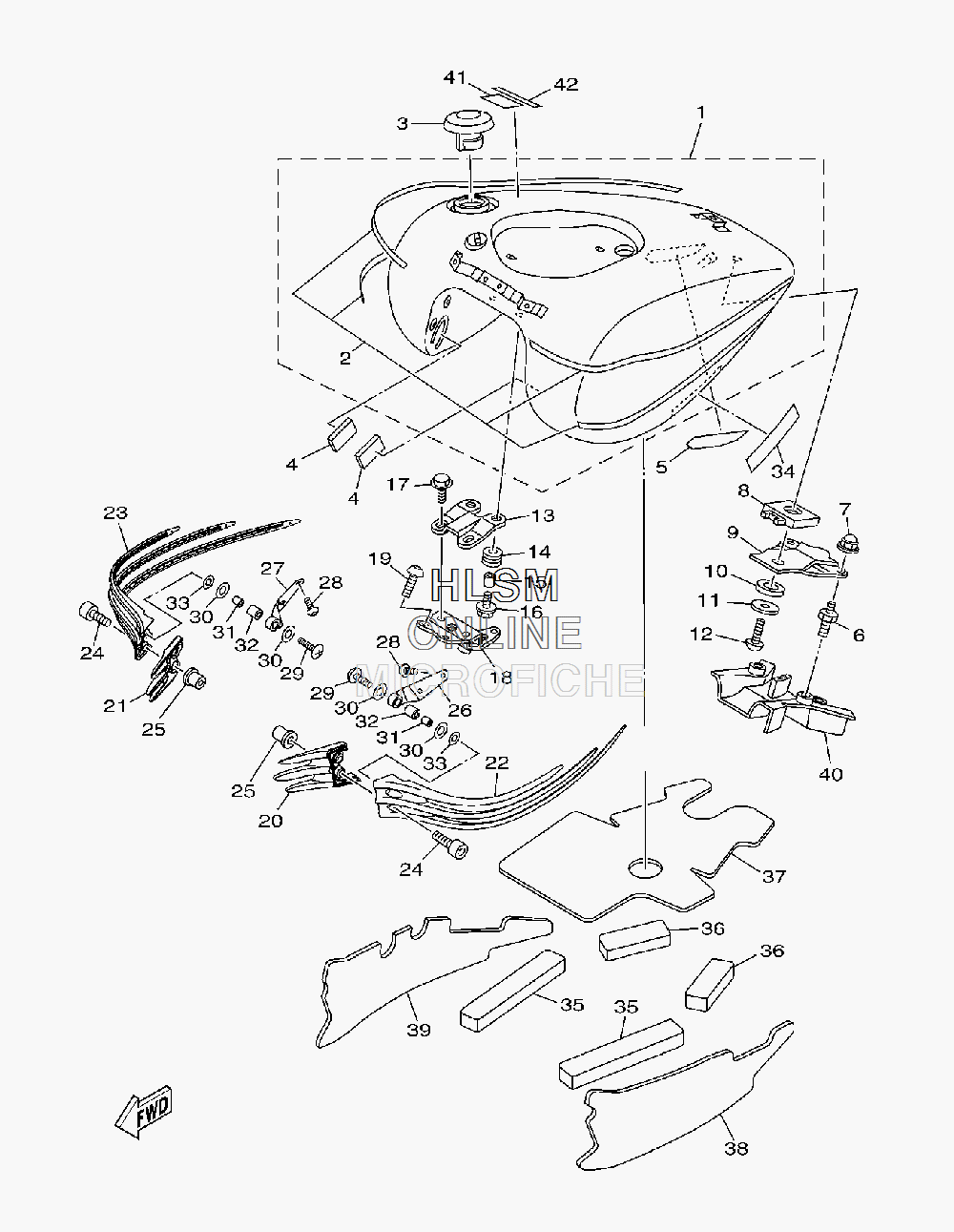

FUEL TANK для Yamaha STRATOLINER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-Y2410-00-W1 FUEL TANK COMP. SILVER 3 ( S3 / 0791 )FUEL TANK COMP. SILVER 3 ( S3 / 0791 )
-
24P0-24240-20-00 GRAPHIC SETGRAPHIC SET
-
34NK-24602-12-00 CAP ASSYCAP ASSY
-
41FK-21746-00-00 DAMPERDAMPER
-
51D7-2413X-00-00 PLATEPLATE
-
65PX-24176-01-00 BOLT 1BOLT 1
-
790176-06055-00 NUT, CROWNNUT, CROWN
-
81D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
91D7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
104TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1190201-060S9-00 WASHER, PLATEWASHER, PLATE
-
1292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
131D7-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1490480-15483-00 GROMMETGROMMET
-
1590387-06054-00 COLLARCOLLAR
-
1690119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1795807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
181D7-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1992017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
201D7-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
211D7-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
221D7-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
231D7-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
2490110-05037-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590179-05523-00 NUTNUT
-
261D7-24115-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
271D7-24116-00-00 STAY, FUEL TANK 2STAY, FUEL TANK 2
-
2892012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2997702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
3090201-06079-00 WASHER, PLATEWASHER, PLATE
-
3190387-09009-00 COLLARCOLLAR
-
3290386-08003-00 BUSHBUSH
-
3390202-04182-00 WASHER, PLATEWASHER, PLATE
-
343TU-28344-00-00 TAPETAPE
-
351D7-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
361D7-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
371D7-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
381D7-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
391D7-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
401D7-24217-00-00 COVERCOVER
-
415GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
425PW-2415E-11-00 LABEL, CAUTIONLABEL, CAUTION
