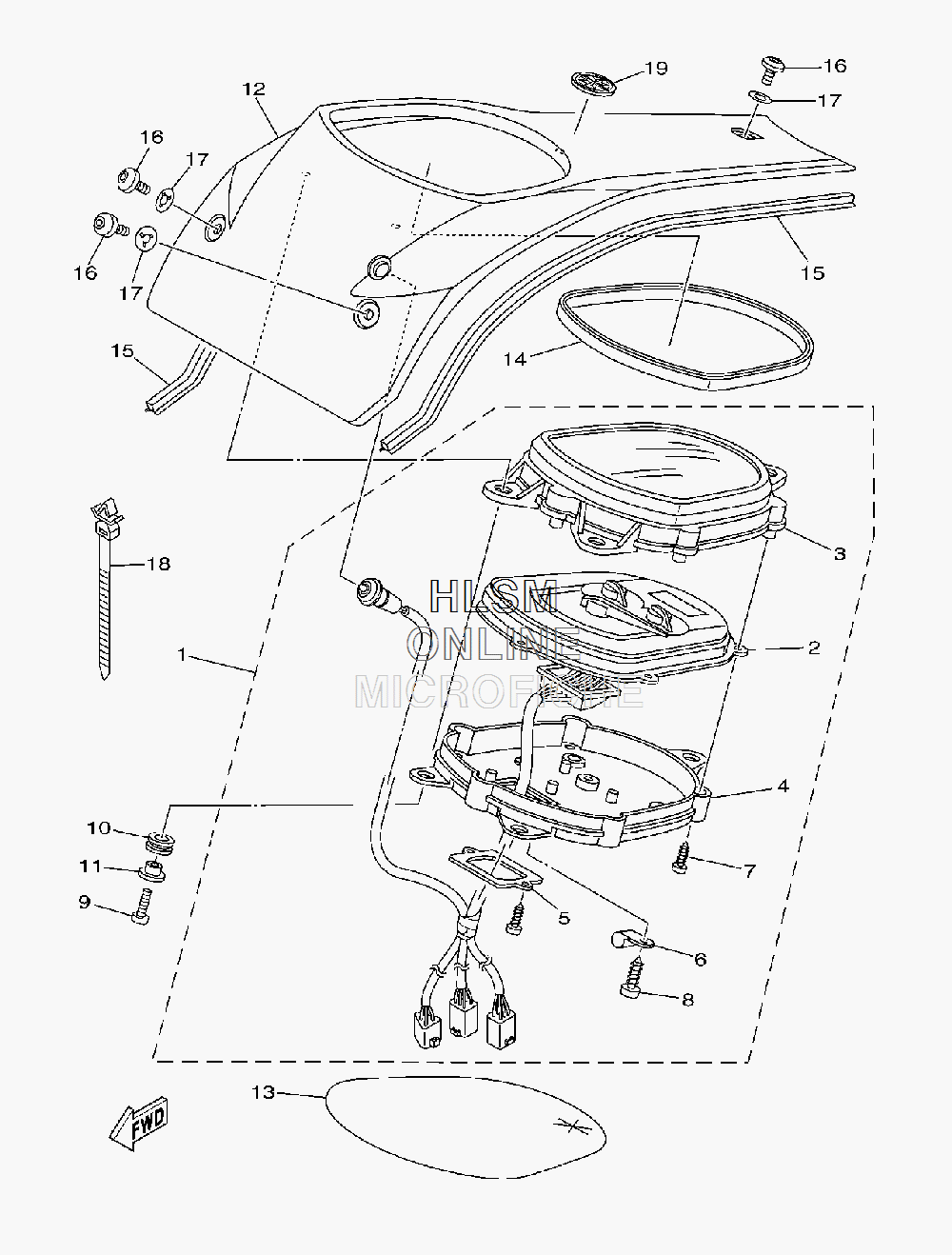

INSTRUMENT PANEL для Yamaha STRATOLINER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-83500-20-00 METER ASSY (MPH)METER ASSY (MPH)
-
21D7-83510-20-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
31D7-8353E-00-00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
41D7-83572-00-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
54WM-83519-00-00 BRACKET, METERBRACKET, METER
-
65EL-8357E-00-00 CLAMPCLAMP
-
74AS-83616-10-00 SCREW, TAPPINGSCREW, TAPPING
-
890164-06023-00 SCREW, TAPPINGSCREW, TAPPING
-
998507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
104WM-83513-00-00 DAMPERDAMPER
-
1190387-050T5-00 COLLARCOLLAR
-
121D7-83559-10-00 COVER, METERCOVER, METER
-
131D7-83513-00-00 DAMPERDAMPER
-
141D7-28347-00-00 MOLE 3MOLE 3
-
151D7-28345-00-00 MOLE 1MOLE 1
-
1690149-06264-00 SCREWSCREW
-
174U5-2176E-00-00 PLATEPLATE
-
1890464-12089-00 CLAMPCLAMP
-
191D7-8359B-00-00 EMBLEM 3DEMBLEM 3D
