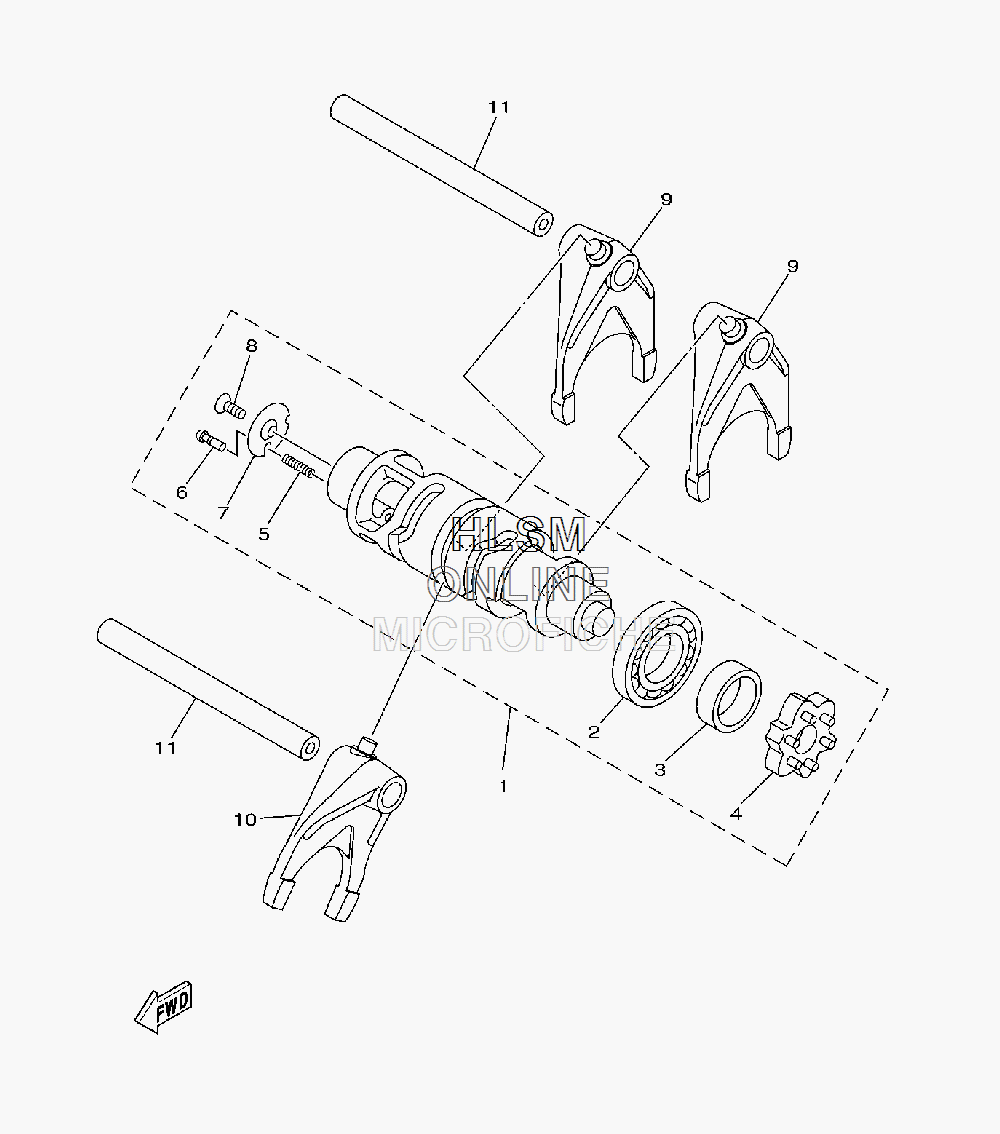

SHIFT CAM W/ FORK для Yamaha STRATOLINER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293316-00501-00 BEARINGBEARING
-
390387-25003-00 COLLARCOLLAR
-
44XV-18185-00-00 SEGMENTSEGMENT
-
590501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
64UN-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
74UN-18566-00-00 PLATE, SIDE 2PLATE, SIDE 2
-
890149-05016-00 SCREWSCREW
-
91D7-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
101D7-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
114NK-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
