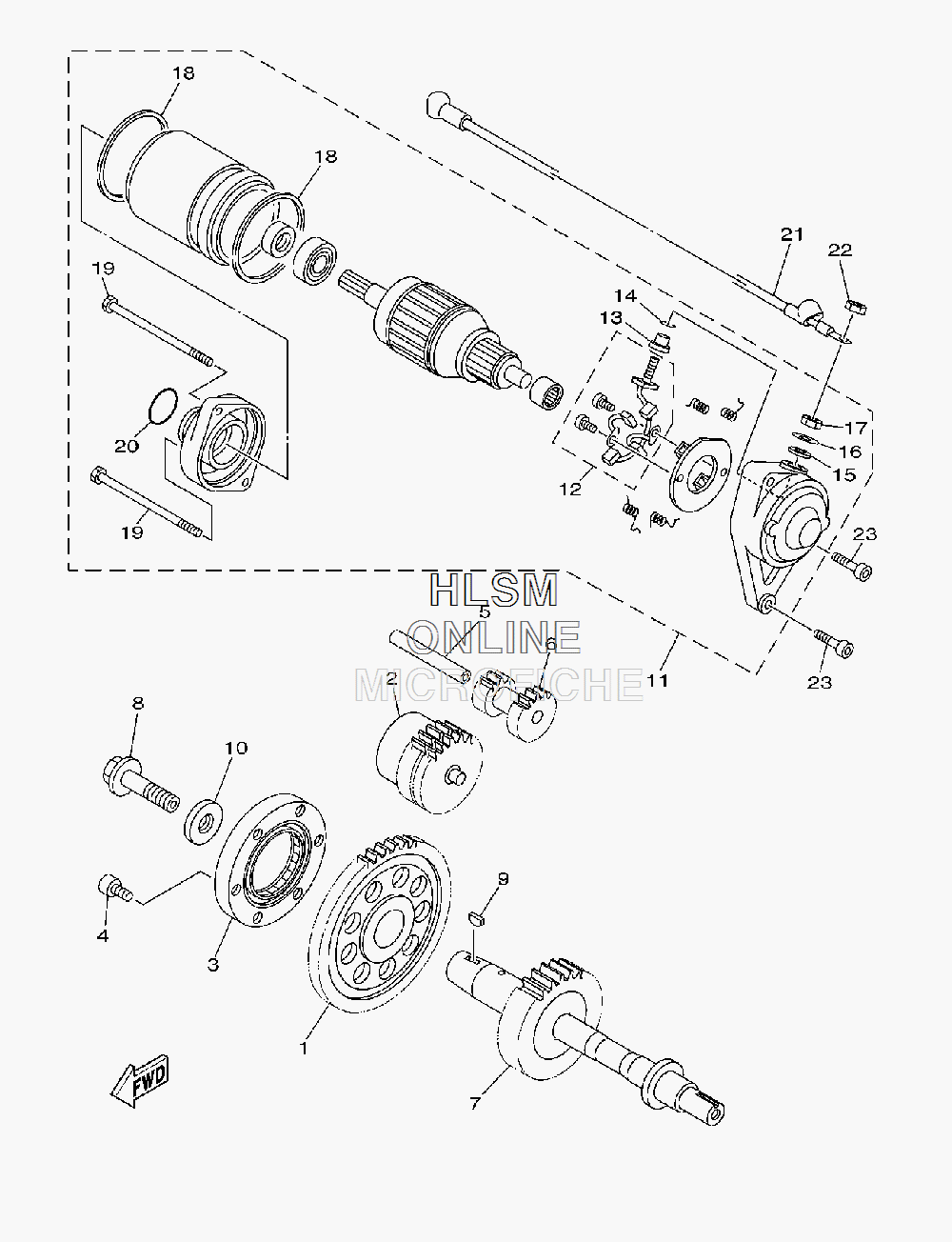

STARTER для Yamaha STRATOLINER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-15515-00-00 GEAR 3GEAR 3
-
21D7-15560-00-00 DAMPER ASSYDAMPER ASSY
-
34WM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
490110-08053-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
51D7-15521-00-00 SHAFT 1SHAFT 1
-
61D7-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
71D7-15659-00-00 SHAFTSHAFT
-
890105-12005-00 BOLT, FLANGEBOLT, FLANGE
-
990280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1090201-12008-00 WASHER, PLATEWASHER, PLATE
-
111D7-81890-00-00 MOTOR ASSYMOTOR ASSY
-
121D7-81801-00-00 BRUSH SETBRUSH SET
-
135PX-8182G-00-00 BUSH, TERMINALBUSH, TERMINAL
-
1493210-06422-00 O-RINGO-RING
-
155PX-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
1690201-06726-00 WASHER, PLATEWASHER, PLATE
-
1795304-06700-00 NUTNUT
-
181D7-81861-00-00 GASKETGASKET
-
195PX-81846-00-00 SCREWSCREW
-
2093210-25711-00 O-RINGO-RING
-
215PX-8183G-00-00 CORD COMP.CORD COMP.
-
2295304-06700-00 NUTNUT
-
2391314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
