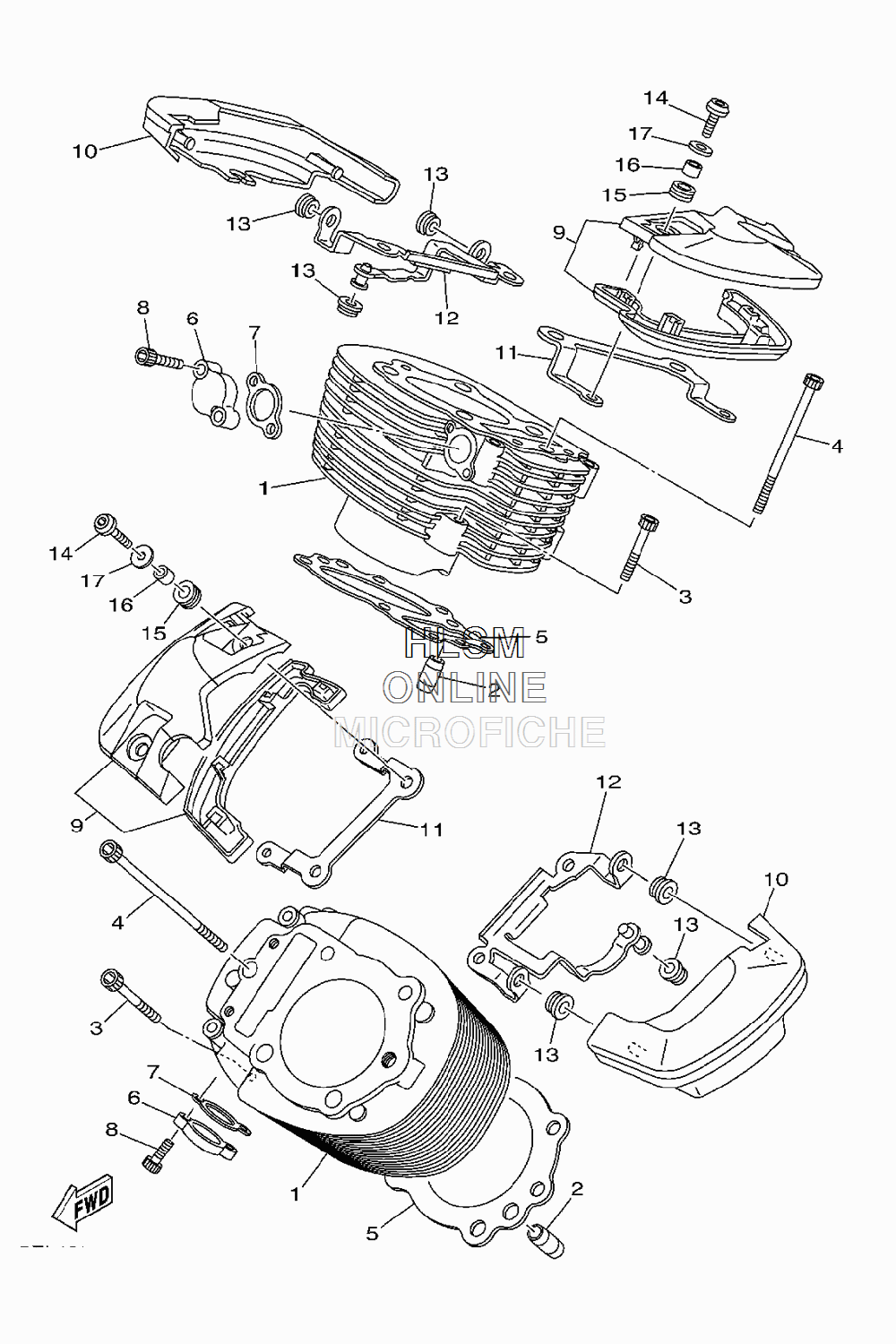

CYLINDER для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска
-
№АртикулНазвание
-
15YS-11311-00-00 CYLINDER 1CYLINDER 1
-
290387-087A5-00 COLLARCOLLAR
-
391314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
491314-06100-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
55EL-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
65KS-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
74FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
891314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95EL-11190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
105EL-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
115EL-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
125EL-11142-01-00 BRACKET, CYLINDER HEAD COVER 2BRACKET, CYLINDER HEAD COVER 2
-
1390480-10627-00 GROMMETGROMMET
-
1490149-06298-00 SCREWSCREW
-
1590480-13018-00 GROMMETGROMMET
-
1690387-06043-00 COLLARCOLLAR
-
1790201-06057-00 WASHER, PLATEWASHER, PLATE
