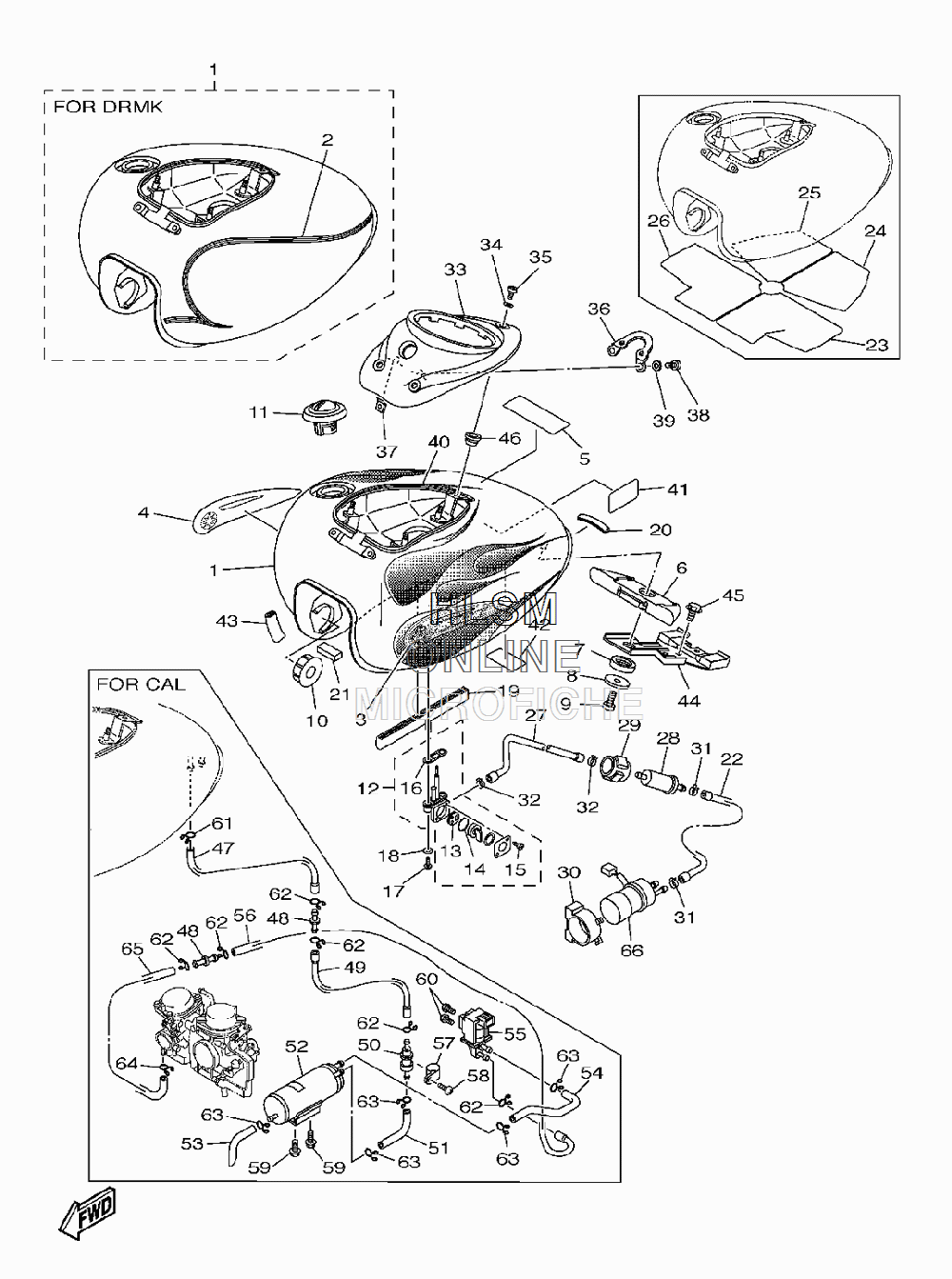

FUEL TANK для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска
-
№АртикулНазвание
-
15EL-Y2410-A2-X3 FUEL TANK COMP. (USE FOR COLOR DBNM8 / 0919)FUEL TANK COMP. (USE FOR COLOR DBNM8 / 0919)
-
15EL-Y2410-A2-X6 FUEL TANK COMP. (USE FOR COLOR DRMK / 0918)FUEL TANK COMP. (USE FOR COLOR DRMK / 0918)
-
15EL-Y2410-V2-W7 FUEL TANK COMP. (USE FOR COLOR DBNM8 / 0919)FUEL TANK COMP. (USE FOR COLOR DBNM8 / 0919)
-
15EL-Y2410-V2-W8 FUEL TANK COMP. (USE FOR COLOR DRMK / 0918)FUEL TANK COMP. (USE FOR COLOR DRMK / 0918)
-
25YS-24240-A0-00 GRAPHIC SET (USE FOR COLOR DRMK / 0918)GRAPHIC SET (USE FOR COLOR DRMK / 0918)
-
323S-2416B-00-00 EMBLEMEMBLEM
-
423S-2417B-00-00 EMBLEMEMBLEM
-
55GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
65EL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
74TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
890201-060S9-00 WASHER, PLATEWASHER, PLATE
-
992017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
102YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
115BN-24602-02-00 CAP ASSYCAP ASSY
-
114NK-24602-12-00 CAP ASSYCAP ASSY
-
124WM-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
133AC-24523-00-00 VALVE PACKINGVALVE PACKING
-
143AJ-24534-01-00 SEAL, COCKSEAL, COCK
-
1597801-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
164X8-24512-00-00 O-RINGO-RING
-
1790149-06011-00 SCREWSCREW
-
1890202-05193-00 WASHER, PLATEWASHER, PLATE
-
191FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
205EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
213XV-21717-00-00 DAMPERDAMPER
-
225EL-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
235YS-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
245YS-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
255YS-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
265YS-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
275EL-24313-10-00 PIPE 3PIPE 3
-
281FK-24560-10-00 FILTER ASSYFILTER ASSY
-
291FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
304EB-24398-00-00 BAND 1BAND 1
-
3190467-12053-00 CLIPCLIP
-
3290467-11028-00 CLIPCLIP
-
335EL-2171A-00-00 COVER, TOPCOVER, TOP
-
3490202-05180-00 WASHER, PLATEWASHER, PLATE
-
3590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
365EL-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
3790183-05061-00 NUT, SPRINGNUT, SPRING
-
3898507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3992907-05600-00 WASHER, PLATEWASHER, PLATE
-
405EL-2414G-00-00 SEALSEAL
-
414DN-21268-00-00 SEALSEAL
-
423SP-21732-00-00 SEAL 1SEAL 1
-
435EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
445EL-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
4595807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
4690179-05009-00 NUTNUT
-
475EL-24321-10-00 PIPE 10PIPE 10
-
484XY-14568-00-00 JOINTJOINT
-
495EL-24312-20-00 PIPE 2PIPE 2
-
505RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
5190445-11056-00 HOSEHOSE
-
525EL-24170-00-00 CANISTER ASSYCANISTER ASSY
-
535EL-24316-10-00 PIPE 6PIPE 6
-
545EL-24317-10-00 PIPE 7PIPE 7
-
554WM-14896-00-00 VALVE, OUTER VENT CONTROL 2VALVE, OUTER VENT CONTROL 2
-
565EL-24315-10-00 PIPE 5PIPE 5
-
5790461-15139-00 CLAMPCLAMP
-
5897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5990105-06446-00 BOLT, FLANGEBOLT, FLANGE
-
6090150-05040-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
6190467-08075-00 CLIPCLIP
-
6290467-09103-00 CLIPCLIP
-
6390467-10041-00 CLIPCLIP
-
6490467-08017-00 CLIPCLIP
-
655EL-24322-10-00 PIPE 11PIPE 11
-
665KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
