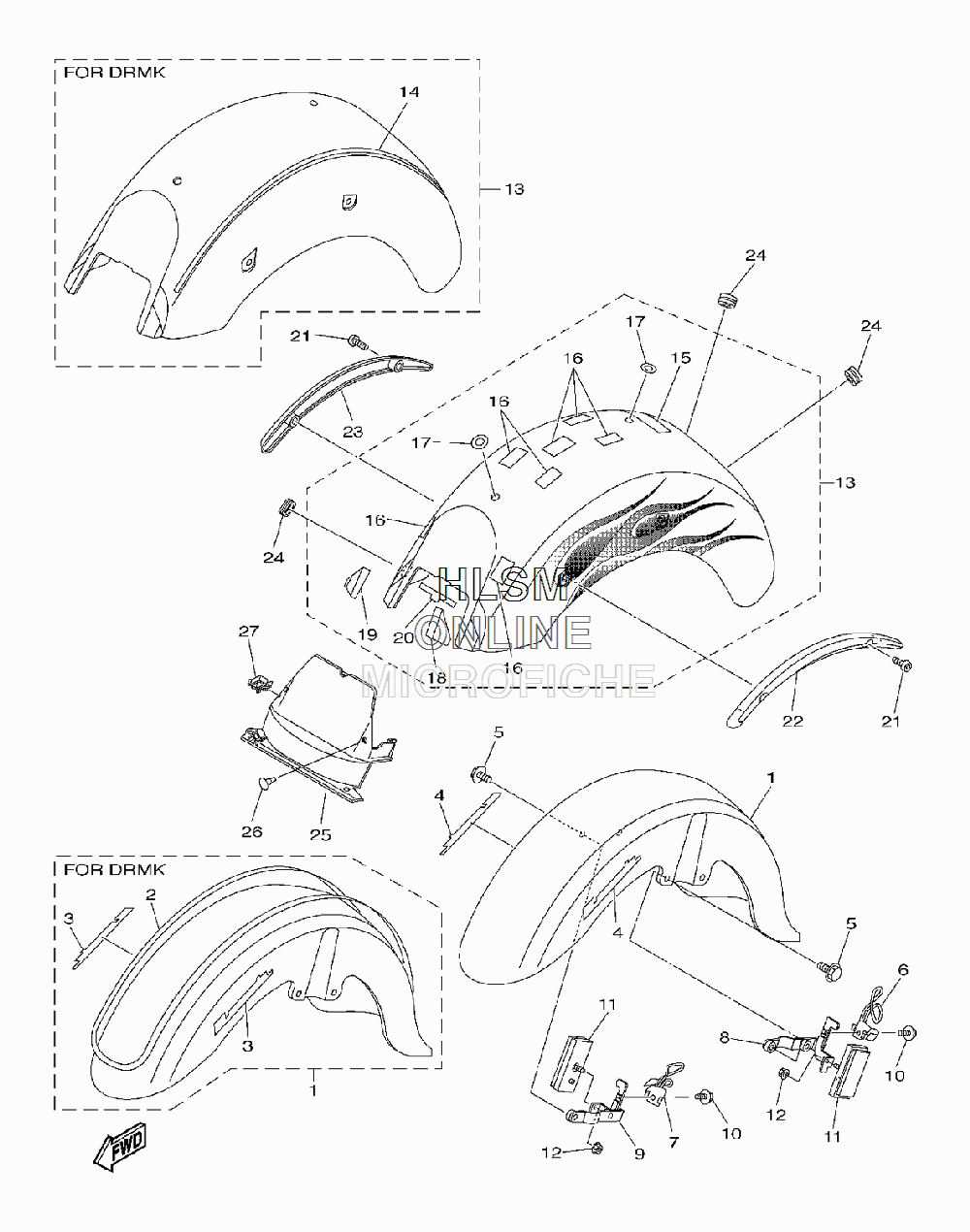

FENDER - FRONT / REAR для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска
-
№АртикулНазвание
-
15KS-21510-00-P6 FRONT FENDER COMP. (USE FOR COLOR DBNM8 / 0919)FRONT FENDER COMP. (USE FOR COLOR DBNM8 / 0919)
-
15KS-Y2151-2A-P5 FRONT FENDER ASSY (USE FOR COLOR DRMK / 0918)FRONT FENDER ASSY (USE FOR COLOR DRMK / 0918)
-
25YS-21570-A0-00 GRAPHIC SET, FRONT FENDER (USE FOR COLOR DRMK / 0918)GRAPHIC SET, FRONT FENDER (USE FOR COLOR DRMK / 0918)
-
35BN-21565-00-00 EMBLEM, 2 (USE FOR COLOR DRMK / 0918)EMBLEM, 2 (USE FOR COLOR DRMK / 0918)
-
45BN-21565-00-00 EMBLEM, 2EMBLEM, 2
-
595817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
65KS-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
75KS-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
85KS-21587-00-00 STAY 1STAY 1
-
95KS-21588-00-00 STAY 2STAY 2
-
1095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1111H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1295707-05500-00 NUT, FLANGENUT, FLANGE
-
135KS-W216R-02-P6 REAR FENDER ASSY (USE FOR COLOR DBNM8 / 0919)REAR FENDER ASSY (USE FOR COLOR DBNM8 / 0919)
-
135KS-W216R-01-P5 REAR FENDER ASSY (USE FOR COLOR DRMK / 0918)REAR FENDER ASSY (USE FOR COLOR DRMK / 0918)
-
145YS-2165A-90-00 GRAPHIC SET,REAR FENDERGRAPHIC SET,REAR FENDER
-
151D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
163SP-21732-00-00 SEAL 1SEAL 1
-
174NK-21735-00-00 SEAL 2SEAL 2
-
185KS-21669-00-00 SEALSEAL
-
195KS-21669-10-00 SEALSEAL
-
205KS-21669-20-00 SEALSEAL
-
2192014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
224WM-2164F-00-00 STAY 1STAY 1
-
234WM-2164G-00-00 STAY 2STAY 2
-
2490480-15061-00 GROMMETGROMMET
-
255KS-21629-00-00 GUARD, MUDGUARD, MUD
-
2690269-07077-00 RIVETRIVET
-
2790464-16021-00 CLAMPCLAMP
