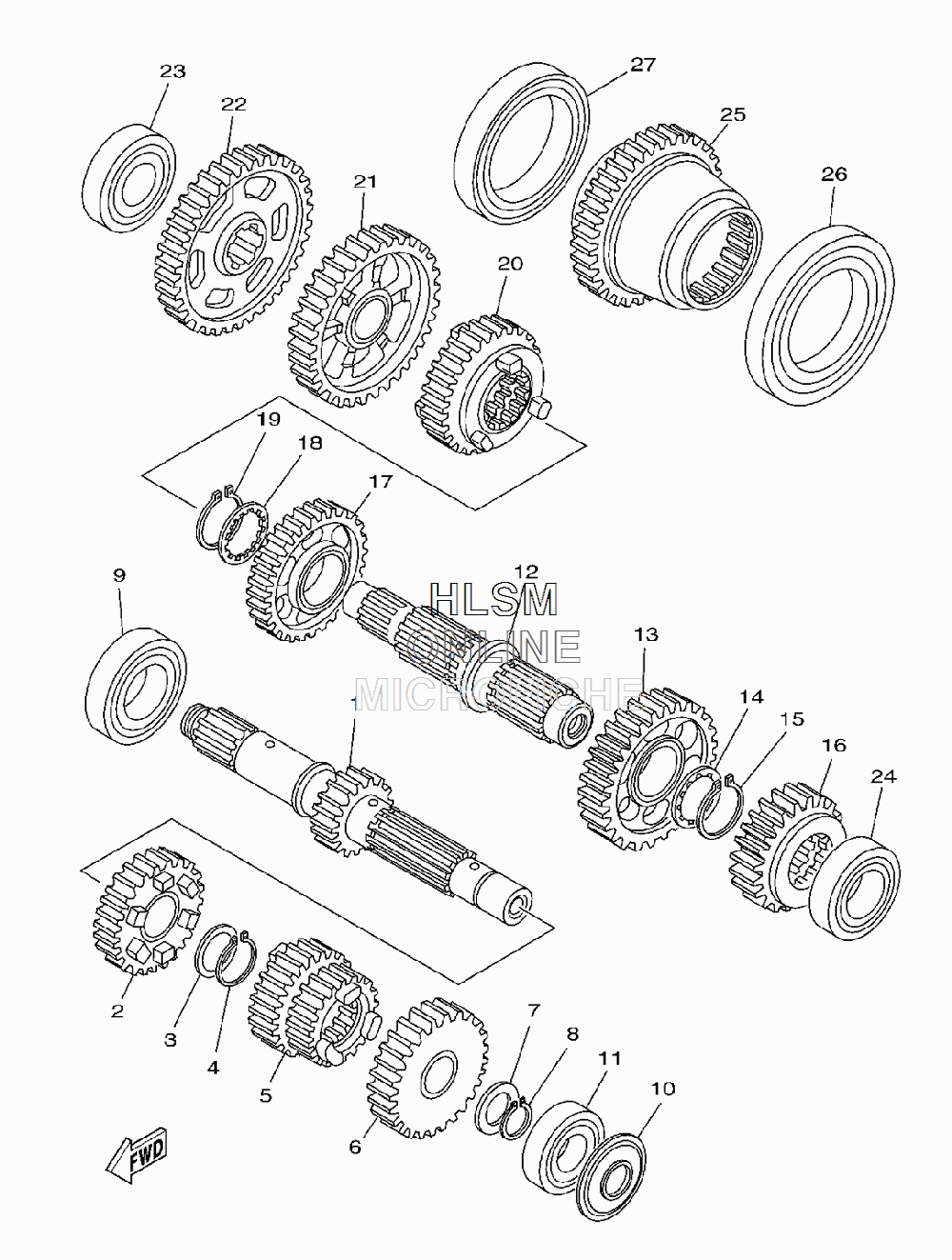

TRANSMISSION для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска
-
№АртикулНазвание
-
15EL-17411-00-00 AXLE, MAIN (17T)AXLE, MAIN (17T)
-
25EL-17141-00-00 GEAR, 4TH PINION (31T)GEAR, 4TH PINION (31T)
-
390209-21332-00 WASHERWASHER
-
499009-25400-00 CIRCLIPCIRCLIP
-
55EL-17121-00-00 GEAR, 2ND PINION (24T/28T)GEAR, 2ND PINION (24T/28T)
-
65EL-17151-00-00 GEAR, 5TH PINION (34T)GEAR, 5TH PINION (34T)
-
790201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
899009-20400-00 CIRCLIPCIRCLIP
-
993306-30525-00 BEARINGBEARING
-
1093104-20068-00 OIL SEALOIL SEAL
-
1193306-30424-00 BEARINGBEARING
-
125EL-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
135EL-17221-00-00 GEAR, 2ND WHEEL (40T)GEAR, 2ND WHEEL (40T)
-
1490209-28331-00 WASHERWASHER
-
1593440-31172-00 CIRCLIPCIRCLIP
-
165EL-17251-00-00 GEAR, 5TH WHEEL (29T)GEAR, 5TH WHEEL (29T)
-
175EL-17231-00-00 GEAR, 3RD WHEEL (36T)GEAR, 3RD WHEEL (36T)
-
1890209-28331-00 WASHERWASHER
-
1993440-31172-00 CIRCLIPCIRCLIP
-
205EL-17241-00-00 GEAR, 4TH WHEEL (32T)GEAR, 4TH WHEEL (32T)
-
214X7-17211-00-00 GEAR, 1ST WHEEL (40T)GEAR, 1ST WHEEL (40T)
-
225EL-17582-00-00 GEAR, MIDDLE DRIVE (47T)GEAR, MIDDLE DRIVE (47T)
-
2393306-20401-00 BEARINGBEARING
-
2493306-20550-00 BEARINGBEARING
-
255EL-17583-00-00 GEAR, MIDDLE DRIVEN (25T)GEAR, MIDDLE DRIVEN (25T)
-
2693316-01201-00 BEARINGBEARING
-
2793306-91201-00 BEARINGBEARING
