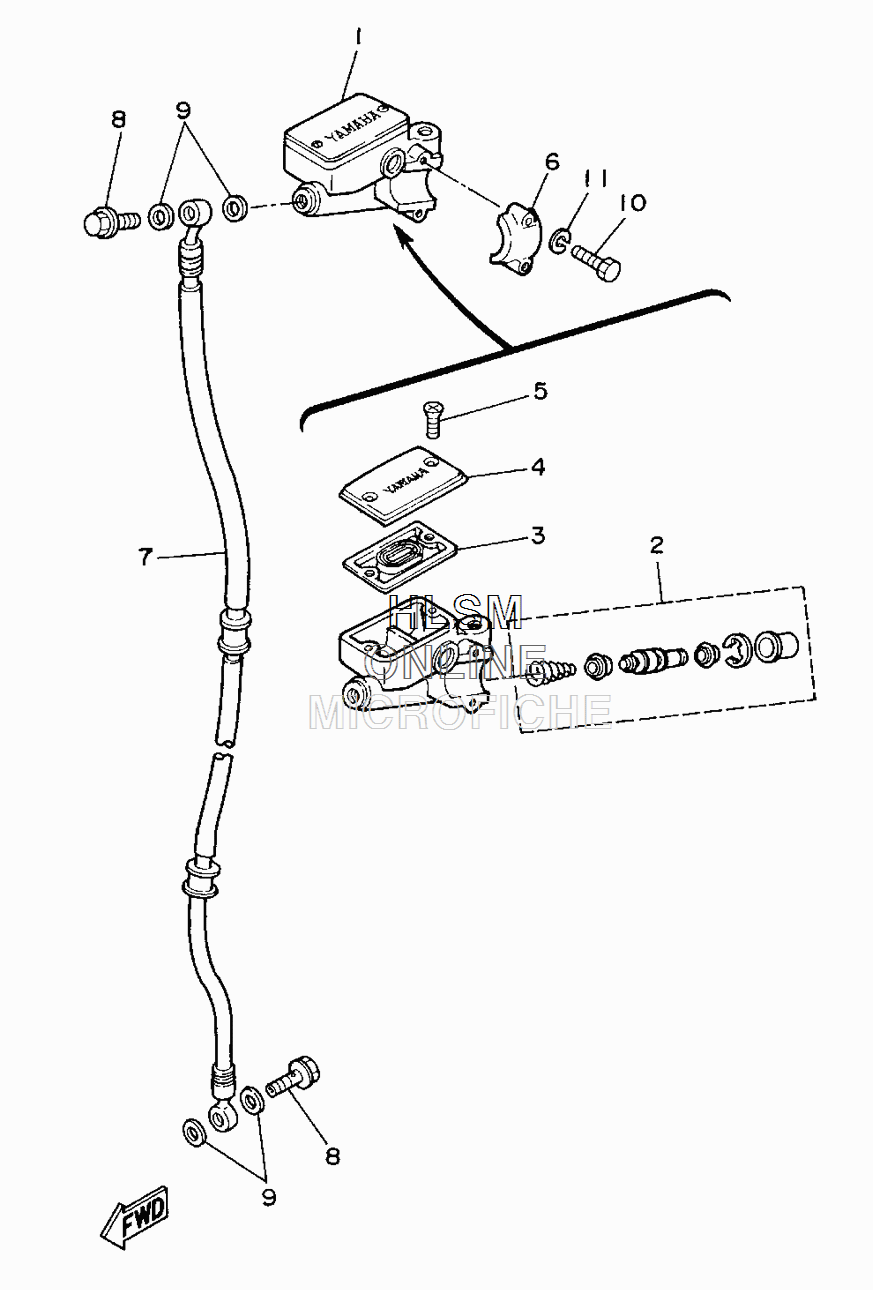

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
12UJ-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24L0-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34L0-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
44H7-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
598706-04012-00 SCREW, FLATSCREW, FLAT
-
64L0-25867-00-00 HOLDERHOLDER
-
73DN-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
890401-10020-00 BOLT, UNIONBOLT, UNION
-
990430-10005-00 GASKETGASKET
-
1097007-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
