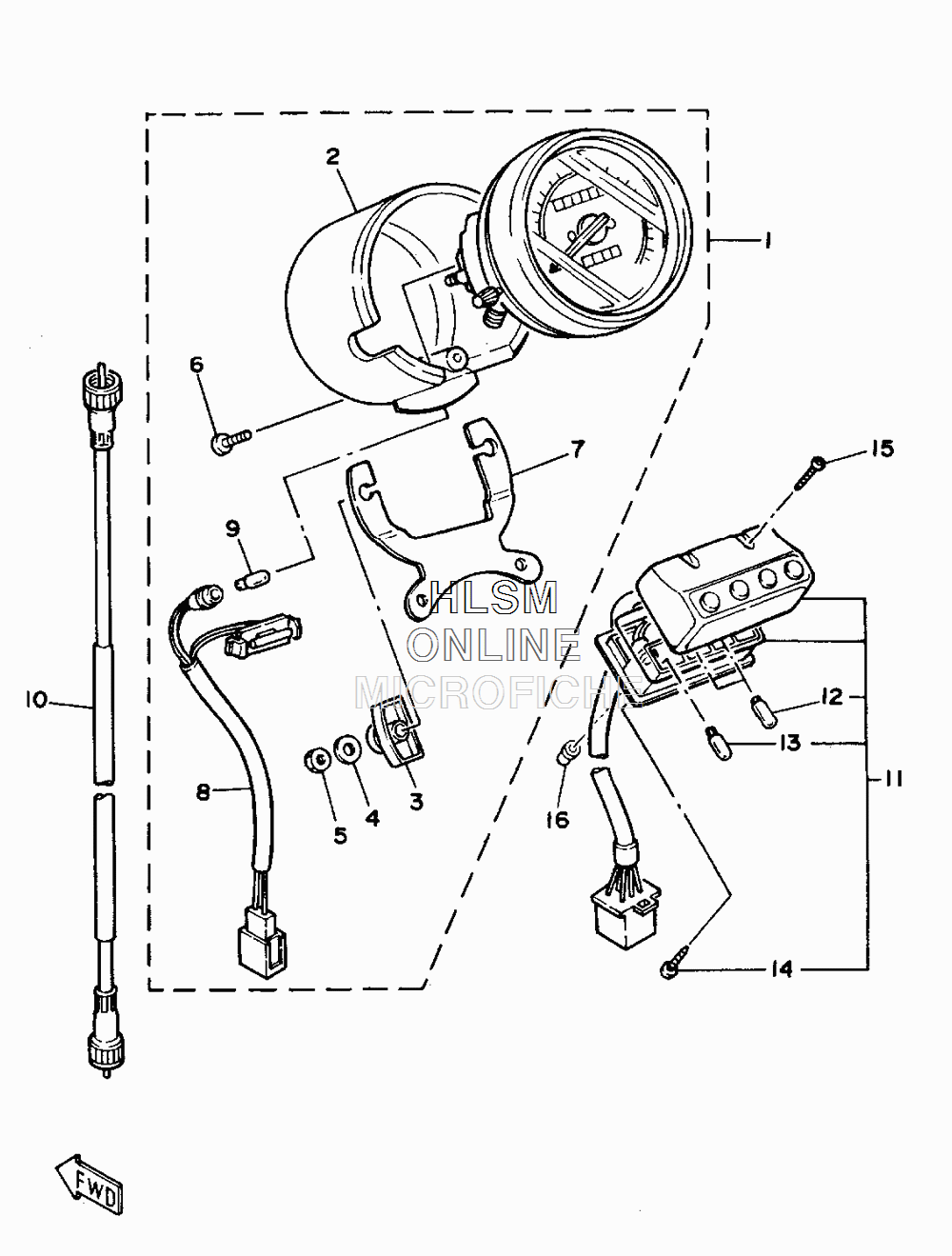

INSTRUMENT PANEL для Yamaha V STAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
13LS-83570-11-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
21FK-83507-11-00 CASE COMP, UNDERCASE COMP, UNDER
-
32UJ-83523-00-00 DAMPERDAMPER
-
492907-05600-00 WASHER, PLATEWASHER, PLATE
-
595307-05600-00 NUT, HEXAGONNUT, HEXAGON
-
690164-04009-00 SCREW, TAPPINGSCREW, TAPPING
-
72UJ-83519-00-00 BRACKET, METERBRACKET, METER
-
82UJ-83509-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
92UJ-83517-00-00 BULB,METER 14V3WBULB,METER 14V3W
-
104YH-83550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
112UJ-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
1242X-83517-00-00 BULB (12V-3W)BULB (12V-3W)
-
132GV-83517-00-00 BULB (12V-1.7W T6.5)BULB (12V-1.7W T6.5)
-
144AS-83616-10-00 SCREW, TAPPINGSCREW, TAPPING
-
1598507-04035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1690179-04579-00 NUTNUT
