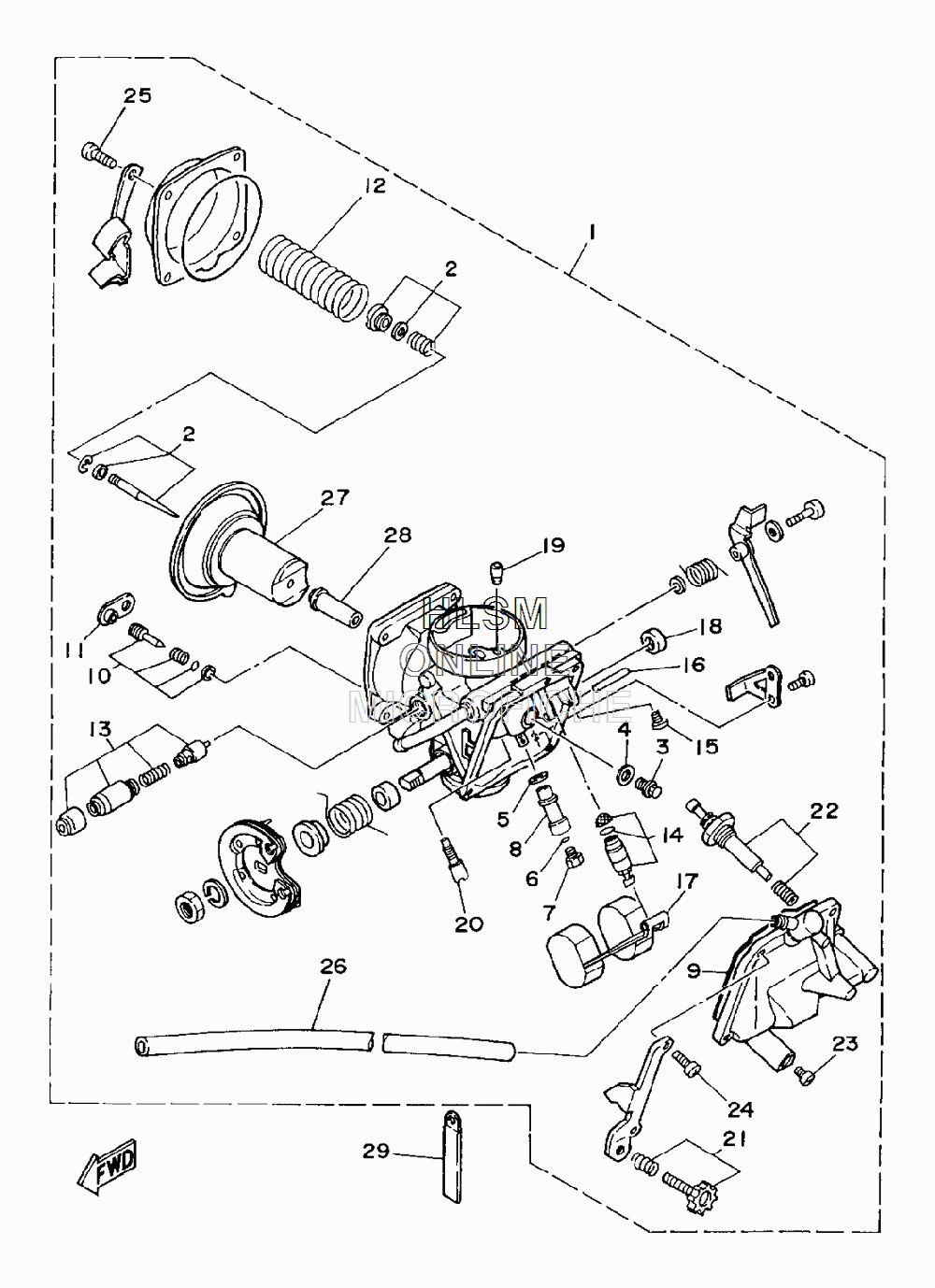

CARBURETOR для Yamaha V STAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
12UJ-14900-01-00 CARBURETOR ASSY YRCARBURETOR ASSY YR
-
13BG-14900-01-00 CARBURETOR ASSY YCR (CALIF ONLY)CARBURETOR ASSY YCR (CALIF ONLY)
-
23BG-1490J-00-00 NEEDLE SETNEEDLE SET
-
31HX-14565-00-00 SCREWSCREW
-
4137-14153-00-00 WASHER, MAIN JETWASHER, MAIN JET
-
51AE-14237-00-00 GASKETGASKET
-
61AE-14227-00-00 O-RINGO-RING
-
7620-14231-22-00 JET, MAIN (#110)JET, MAIN (#110)
-
81AE-14261-00-00 HOLDERHOLDER
-
91HX-14147-00-00 O-RINGO-RING
-
1012R-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
113F9-14118-00-00 CAPCAP
-
121HX-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
133DM-1410A-01-00 STARTER SETSTARTER SET
-
143CF-14107-10-00 NEEDLE VALVE SETNEEDLE VALVE SET
-
151FN-14565-00-00 SCREWSCREW
-
16353-14186-00-00 PIN, FLOATPIN, FLOAT
-
171HX-14985-00-00 FLOATFLOAT
-
18256-14997-00-00 SEALSEAL
-
191HX-14231-31-00 JET, MAIN (#155)JET, MAIN (#155)
-
2022F-14142-17-00 JET, PILOT (#17.5)JET, PILOT (#17.5)
-
211HX-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
223DM-14504-01-00 ROD SETROD SET
-
2312R-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
2498501-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2598501-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
262LH-14197-00-00 HOSEHOSE
-
273BG-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
283DM-14141-30-00 MAIN NOZZLE (0-0)MAIN NOZZLE (0-0)
-
2990461-06087-00 PLATEPLATE
