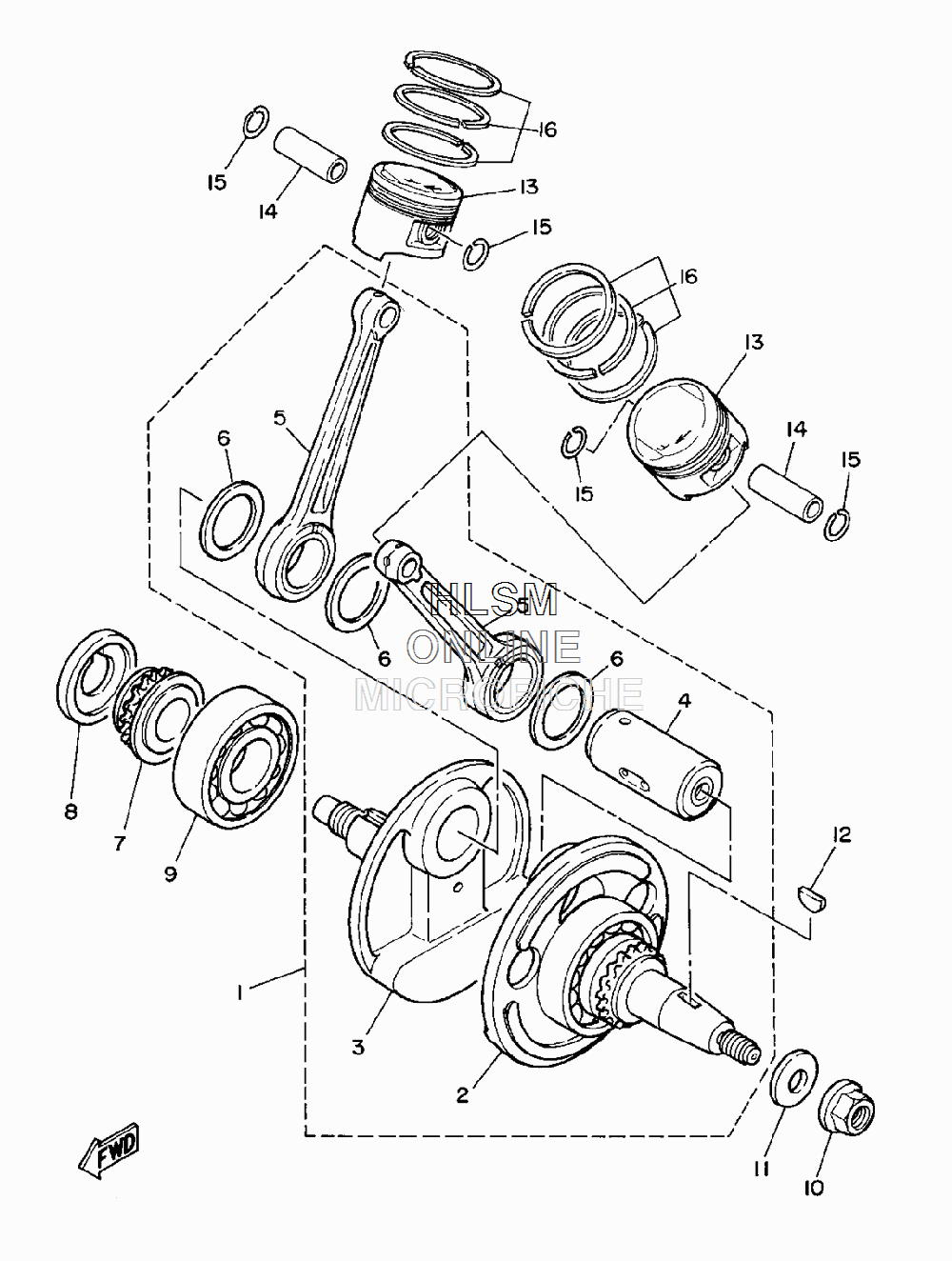

CRANKSHAFT - PISTON для Yamaha V STAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
12UJ-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22UJ-W1141-00-00 CRANK SUB ASSY 1CRANK SUB ASSY 1
-
32UJ-11422-00-00 CRANK 2CRANK 2
-
42UJ-11681-00-00 PIN, CRANK 1PIN, CRANK 1
-
52UJ-11651-00-00 ROD, CONNECTINGROD, CONNECTING
-
690209-31300-00 WASHERWASHER
-
72UJ-1154A-00-00 SPROCKET, CAM CHAIN 2SPROCKET, CAM CHAIN 2
-
82UJ-11478-00-00 COLLARCOLLAR
-
993306-30611-00 BEARINGBEARING
-
1090179-12004-00 NUTNUT
-
1190201-12191-00 WASHER, PLATEWASHER, PLATE
-
1290280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
132UJ-11631-00-A0 PISTON (STD)PISTON (STD)
-
132UJ-11636-00-00 PISTON (0.50MM O/S) APPISTON (0.50MM O/S) AP
-
132UJ-11638-00-00 PISTON (1.00MM O/S) APPISTON (1.00MM O/S) AP
-
1422K-11633-01-00 PIN, PISTONPIN, PISTON
-
1593450-14088-00 CIRCLIPCIRCLIP
-
1650M-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1650M-11610-20-00 PISTON RING SET (0.50MM O/S) APPISTON RING SET (0.50MM O/S) AP
-
1650M-11610-40-00 PISTON RING SET (1.00MM O/S) APPISTON RING SET (1.00MM O/S) AP
