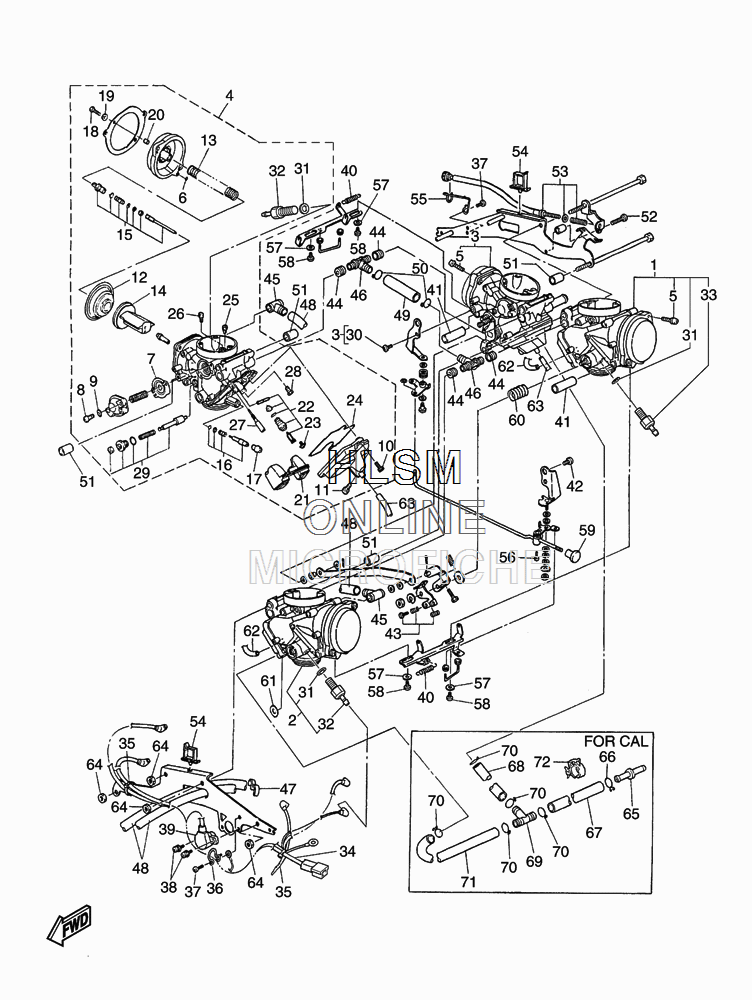

CARBURETOR для Yamaha ROYAL STAR TOUR DELUXE S - 2010 года выпуска
-
№АртикулНазвание
-
14XY-14901-81-00 CARBURETOR ASSY 1 (1D6N) (EXCEPT CALIF)CARBURETOR ASSY 1 (1D6N) (EXCEPT CALIF)
-
14XY-14901-61-00 CARBURETOR ASSY 1 (1D6P) (CALIF ONLY)CARBURETOR ASSY 1 (1D6P) (CALIF ONLY)
-
24XY-14902-81-00 CARBURETOR ASSY 2 (1D6N) (EXCEPT CALIF)CARBURETOR ASSY 2 (1D6N) (EXCEPT CALIF)
-
24XY-14902-61-00 CARBURETOR ASSY 2 (1D6P) (CALIF ONLY)CARBURETOR ASSY 2 (1D6P) (CALIF ONLY)
-
34XY-14903-81-00 CARBURETOR ASSY 3 (1D6N) (EXCEPT CALIF)CARBURETOR ASSY 3 (1D6N) (EXCEPT CALIF)
-
34XY-14903-61-00 CARBURETOR ASSY 3 (1D6P) (CALIF ONLY)CARBURETOR ASSY 3 (1D6P) (CALIF ONLY)
-
44XY-14904-81-00 CARBURETOR ASSY 4 (1D6N) (EXCEPT CALIF)CARBURETOR ASSY 4 (1D6N) (EXCEPT CALIF)
-
44XY-14904-61-00 CARBURETOR ASSY 4 (1D6P) (CALIF ONLY)CARBURETOR ASSY 4 (1D6P) (CALIF ONLY)
-
54KM-14216-00-00 SCREWSCREW
-
6354-14147-00-00 O-RINGO-RING
-
75AP-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
898507-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-04100-00 WASHER, SPRINGWASHER, SPRING
-
992907-04100-00 WASHER, SPRINGWASHER, SPRING
-
1091317-05012-00 BOLTBOLT
-
114KP-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
125DM-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
134XY-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
145DM-14112-00-00 VALVE, THROTTLE 1VALVE, THROTTLE 1
-
154XY-1490J-00-00 NEEDLE SETNEEDLE SET
-
164XY-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
174XY-14118-00-00 CAPCAP
-
1898507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
204KM-14194-00-00 RINGRING
-
214SV-14985-00-00 FLOATFLOAT
-
224KM-14107-15-00 NEEDLE VALVE SETNEEDLE VALVE SET
-
231FN-14565-00-00 SCREWSCREW
-
244XV-14562-00-00 O-RINGO-RING
-
251HX-14231-17-00 JET, MAIN (# 85)JET, MAIN (# 85)
-
261HX-14231-28-00 JET, MAIN (#140)JET, MAIN (#140)
-
274KM-14142-15-00 JET, PILOT (# 15)JET, PILOT (# 15)
-
283G2-14231-24-00 JET, MAIN (#120)JET, MAIN (#120)
-
283G2-1423A-74-00 JET, MAIN (#117.5)JET, MAIN (#117.5)
-
283G2-1423A-75-00 JET, MAIN (#122.5)JET, MAIN (#122.5)
-
294SV-1410A-00-00 STARTER SETSTARTER SET
-
3098607-05110-00 SCREW, OVAL HEADSCREW, OVAL HEAD
-
3190201-08016-00 WASHER, PLATEWASHER, PLATE
-
325FU-83790-00-00 HEATER ASSY (15W)HEATER ASSY (15W)
-
335FU-83790-20-00 HEATER ASSY (30W)HEATER ASSY (30W)
-
341D6-81517-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
3535H-14139-00-00 CLIP, PIPECLIP, PIPE
-
364XY-14159-00-00 CLIPCLIP
-
3798507-05006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
384WM-14565-00-00 SCREWSCREW
-
394HM-85885-20-00 THROTTLE POSITION SENSOR ASSYTHROTTLE POSITION SENSOR ASSY
-
405DM-14935-00-00 SPRINGSPRING
-
414XY-14148-00-00 PIPEPIPE
-
4298607-05110-00 SCREW, OVAL HEADSCREW, OVAL HEAD
-
433EN-1490K-00-00 STOP SCREW SETSTOP SCREW SET
-
443EN-14997-00-00 SEALSEAL
-
455DM-14396-10-00 PIPEPIPE
-
464XY-14251-00-00 NIPPLENIPPLE
-
4790464-09M31-00 CLAMPCLAMP
-
484XY-14349-00-00 PIPEPIPE
-
494XY-14349-11-00 PIPEPIPE
-
504NK-14137-00-00 CLIPCLIP
-
514XY-14148-10-00 PIPEPIPE
-
5298507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
534XY-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
544XY-14137-00-00 CLIPCLIP
-
554XY-14139-00-00 CLIP, PIPECLIP, PIPE
-
564XY-14565-00-00 SCREWSCREW
-
574NK-14327-00-00 PACKINGPACKING
-
584XY-24453-10-00 SCREWSCREW
-
594XY-14261-00-00 HOLDERHOLDER
-
604XY-14286-00-00 SPRINGSPRING
-
614KG-14285-00-00 WASHERWASHER
-
623JD-14197-00-00 PIPEPIPE
-
634FU-14197-00-00 PIPEPIPE
-
6495307-06600-00 NUTNUT
-
654XY-14568-00-00 JOINTJOINT
-
6690467-10041-00 CLIPCLIP
-
674XY-14349-21-00 PIPEPIPE
-
6851L-14987-01-00 HOSEHOSE
-
693H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
703UH-14937-00-00 CLIPCLIP
-
713UH-14294-01-00 HOSEHOSE
-
7290464-15192-00 CLAMPCLAMP
